Jawa & Jawa 42 Platform · ASSEMBLY 19 · REV 36
Conventional - Clutch Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 59Original parts list ↗
Parts in this drawing
17 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Assembly, ClutchT0218BUF0160N | 1 | |
| 2 | Housing Complete ClutchT0218BUF0400N | 1 | |
| 3 | Clutch HubT0218BUF0410N | 1 | |
| 4 | Disk Clutch Friction Middle SpdT0218BUF0370N | 3 | |
| 5 | Disk Clutch Friction End SpdT0218BUF0380N | 2 | |
| 6 | Plate Clutch SpdT0218BUF0390N | 4 | |
| 7 | Plate Clutch PressureT0218BUF0420N | 1 | |
| 8 | Spring ClutchT0218BUF0430N | 5 | |
| 9 | Bolt Washer 6X25T0218BUF0440N | 5 | |
| 10 | Bearing Ball Radial 6001T0218BUF0450N | 1 | |
| 11 | Washer 20X40X2T0218BUF0460N | 1 | |
| 12 | Clutch Plate And Friction Disc KitT0218BUF0470N | 1 | |
| 13 | Needle Roller Bearing (Ø28*Ø33*17)T18050UF0300N | 1 | |
| 14 | Clutch Bushing E02 (Nrb Version)T0218BUF0210N | 1 | |
| 15 | Washer Conical (Ø16.2*Ø27.2*2)T18010UF0170N | 1 | |
| 16 | Clutch Nut (M16*1)T0218BUF0320N | 1 | |
| 17 | Clutch Pull RodT0218BUF0360N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

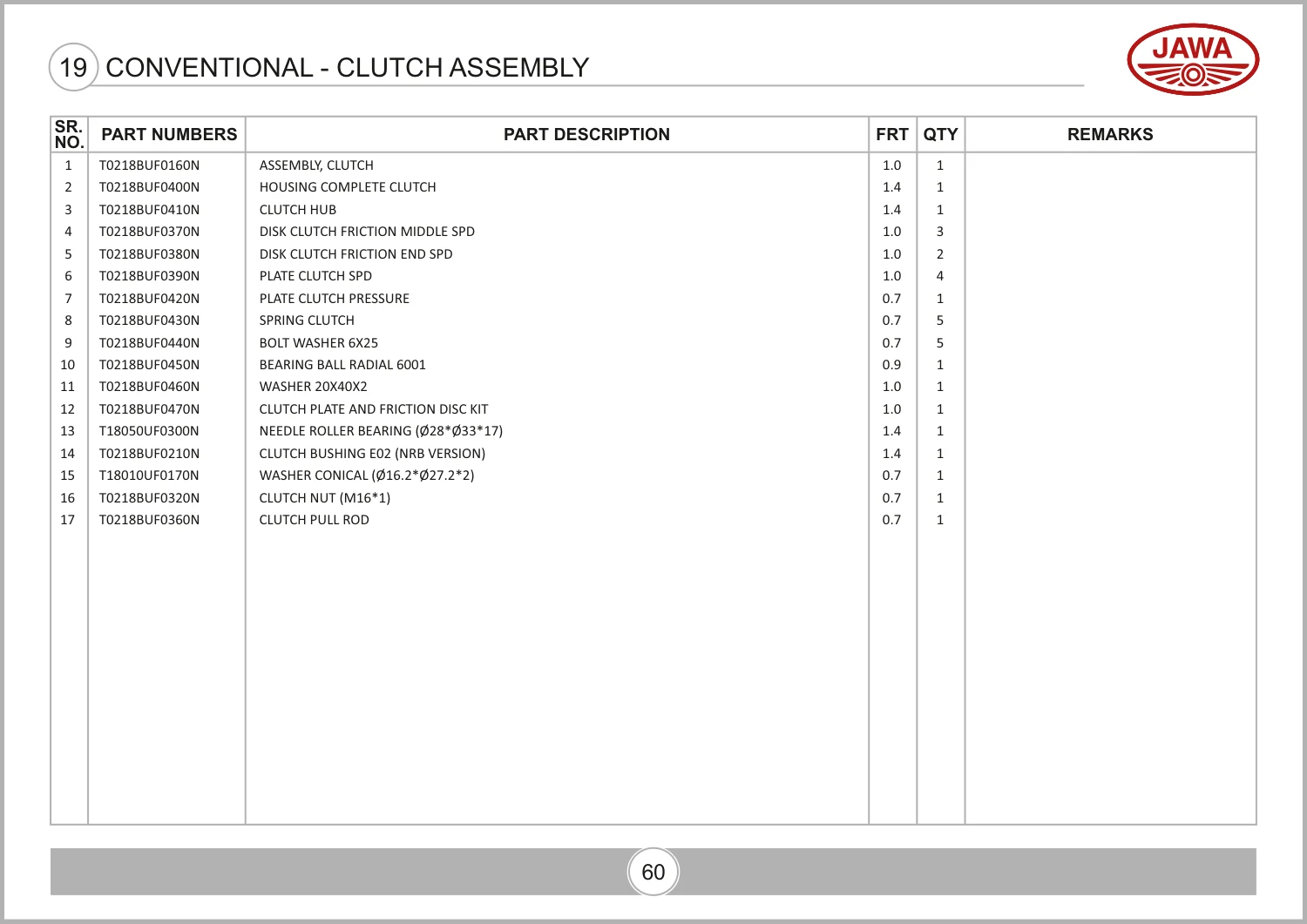

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 74, parts table page 75. View original parts table ↗
