Jawa & Jawa 42 Platform · ASSEMBLY 20 · REV 36
A&S - Clutch Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 61Original parts list ↗
Parts in this drawing
24 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Assembly, Clutch C334 A&ST02190VG0010N | 1 | |
| 2 | Housing Complete Clutch With GpdnT02180VG0010N | 1 | |
| 3 | Washer 20X40X2T0218BUF0460N | 1 | |
| 4 | Clutch HubT0218BVG0040N | 1 | |
| 5 | Spring Seat JudderT0218BVG0150N | 1 | |
| 6 | Spring JudderT0218BVG0140N | 1 | |
| 7 | Disk Clutch Friction Middle SpdT0218BVG0590N | 2 | |
| 8 | Disk Clutch Friction End SpdT0218BVG0060N | 1 | |
| 9 | Plate Clutch SpdT0218BVG0070N | 3 | |
| 10 | Clutch Plate And Friction Disc KitT0218BVG0120N | 1 | |
| 11 | Bearing BallT0218BVG0110N | 1 | |
| 12 | Plate Clutch PressureT0218BVG0080N | 1 | |
| 13 | Seat Spring ClutchT0218BVG0130N | 3 | |
| 14 | Spring ClutchT0218BVG0090N | 3 | |
| 15 | Plate StopperT0218BVG0160N | 1 | |
| 16 | Bolt Washer 6X25T0218BVG0100N | 3 | |
| 17 | Washer Conical (Ø16.2*Ø27.2*2)T18010UF0170N | 1 | |
| 18 | Clutch Nut (M16*1)T0218BUF0320N | 1 | |
| 19 | Clutch Pull RodT0218BUF0360N | 1 | |
| 20 | Needle Roller Bearing (Ø28*Ø33*17)T18050UF0300N | 1 | |
| 21 | Clutch Bushing E02 (Nrb Version)T0218BUF0210N | 1 | |
| 22 | Disk B, Clutch Friction SpdT0218BVG0180N | 1 | |
| 23 | Plate B, Clutch SpdT0218BVG0170N | 1 | |
| 24 | Disk D Clutch Friction SpdT0218BVG0600N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

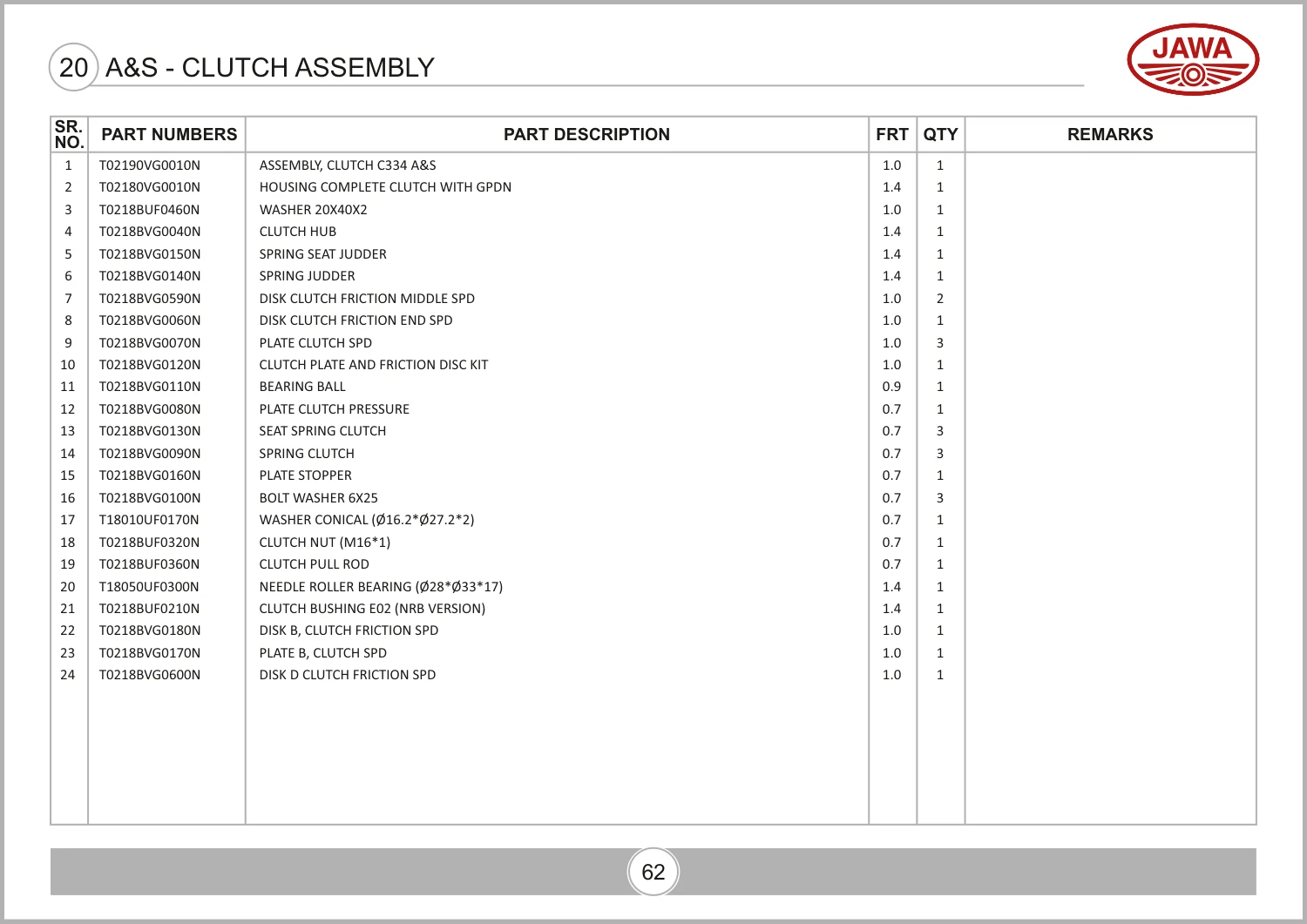

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 76, parts table page 77. View original parts table ↗
