Jawa & Jawa 42 Platform · ASSEMBLY 21 · REV 36
Evaporative Emission System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 63Original parts list ↗
Parts in this drawing
14 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Clip Tube B895002-02080 | 4 | |
| 2 | Drain Tube Canister Bs IV & Bs ViT10000KW0090N FITTED TILL - MZDKW1C16P1C97111 | 1 | |
| 2.1 | Drain Tube Canister OBD IIT10000Y50130N FITTED FROM - MZDKW1C16P1C97112 | 1 | |
| 3 | Carbon CanisterT10000KE0021N | 1 | |
| 4 | Spring Band Clamp Dia 11T10050KE0100N | 2 | |
| 5 | Check Valve Bs-IVT10000KE0031N | 1 | |
| 6 | Hose Check Valve To Throttle Body Bs IV & BSVIT10000KW0120N FITTED TILL - MZDKW1C16P1C97111 | 1 | |
| 6.1 | Hose Check Valve To Throttle Body OBD IIT10000Y50120N FITTED FROM - MZDKW1C16P1C97112 | 1 | |
| 7 | Hose Canister To Check ValveT10000KW0110N | 1 | |
| 8 | Hose Rollover Valve To CanisterT10010KW0190N | 1 | |
| 8.1 | Hose Rollover Valve To Canister OBD-II Phase-2 (E20)T10000J20260N | 1 | |
| 9 | Tool Kit BandT14010KE0010N | 2 | |
| 10 | Bracket Bs-IV Canister Mounting LooseT10000KW0070N | 1 | |
| 11 | Flanged Headbolt M6X12SP0906041 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

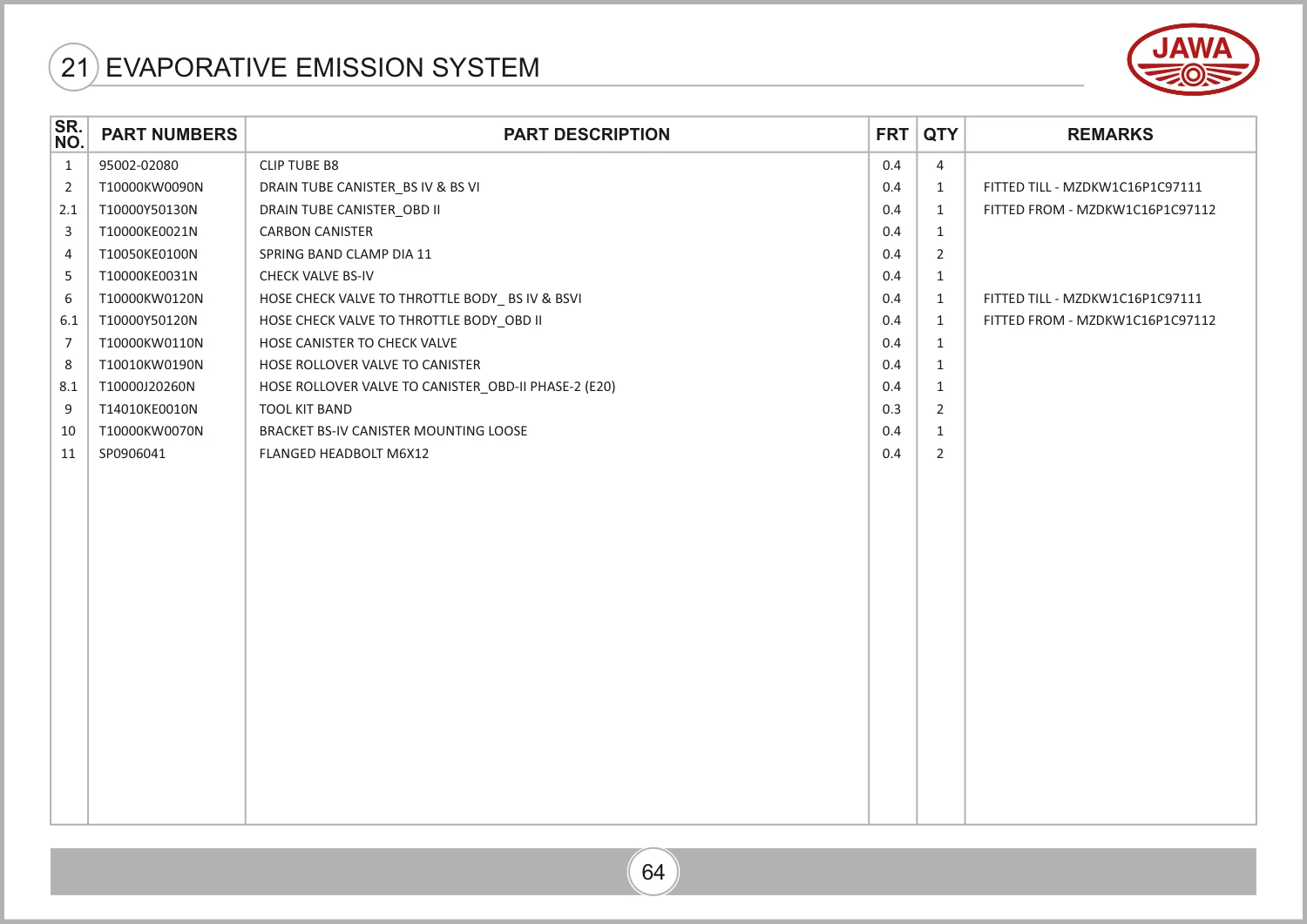

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 78, parts table page 79. View original parts table ↗
