Jawa & Jawa 42 Platform · ASSEMBLY 22 · REV 36
Air Filter Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 65Original parts list ↗
Parts in this drawing
30 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Housing & Cover AssyT0101AKW0080N | 1 | |
| 2 | Grommet Structure MountingT13160KG0130N | 3 | |
| 3 | Collar Fairing MountingT13160KG0210N | 3 | |
| 4 | Flange Bolt 61895801-06018-07 | 3 | |
| 5 | O Ring Entry BoxT0101FKW0010N | 1 | |
| 6 | Entry Box Assy Bs IV & ViT0101AKW0030N FITTED TILL - MZDKW1C16P1C97111 | 1 | |
| 6.1 | Entry Duct OBD IIT0101FKW0050N FITTED FROM - MZDKW1C16P1C97112 | 1 | |
| 7 | Truss Head Screw M5X12 (Black)TSF0212010 | 8 | |
| 8 | Frame Element HolderT0101AKW0040N | 1 | |
| 9 | Screw Rdskt Sl M5X0.8X8X8.8 Jawa 42 Ug 2.2SF0212039 | 4 | |
| 10 | Air Filter ElementT0101DKW0010N | 1 | |
| 11 | Spring Band - Drain TubeT0101AKW0070N | 1 | |
| 12 | Drain TubeT0101AKW0060N | 1 | |
| 13 | Plug Oil DrainT0101AKW0020N | 1 | |
| 14 | Wire Clip - Oil DrainT0101AKW0010N | 2 | |
| 15 | Oil Drain TubeT01010KW0030N | 1 | |
| 16 | Resonator BoxT01000KW0010N | 1 | |
| 17 | Resonator ClampT01010KW0020N | 1 | |
| 18 | Clamp Special M60X0.7X9SF0700025 | 4 | |
| 18.1 | Band Clamp Dia 58T01000J10050N USE WITH T0101AJ20080N ONLY | 2 | |
| 19 | Connecting TubeT0101GKW0010N | 1 | |
| 19.1 | Connecting Tube Jawa Classic OBD IIT0101GKW0020N | 1 | |
| 20 | Inlet Manifold BSIVT01010KW0040N | 1 | |
| 20.1 | Inlet Manifold BSVIT0101FJ20020N FITTED TILL - MZDKW1C16P1C97111 | 1 | |
| 20.2 | Dia.59 Manifold AssemblyT0101AJ20080N FITTED FROM - MZDKW1C16P1C97112 | 1 | |
| 21 | Hex Soc Cap Head Screw M5*16*0.8SF0105067 | 2 | |
| 22 | Spring Band Clamp Dia 14T10050KE0030N | 1 | |
| 23 | Tube Clip 17T0103AKM0040N | 1 | |
| 24 | Bush BreatherT02110KE0010N | 1 | |
| 25 | Breather Tube (Air Filter To Engine)T0207CVE0010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

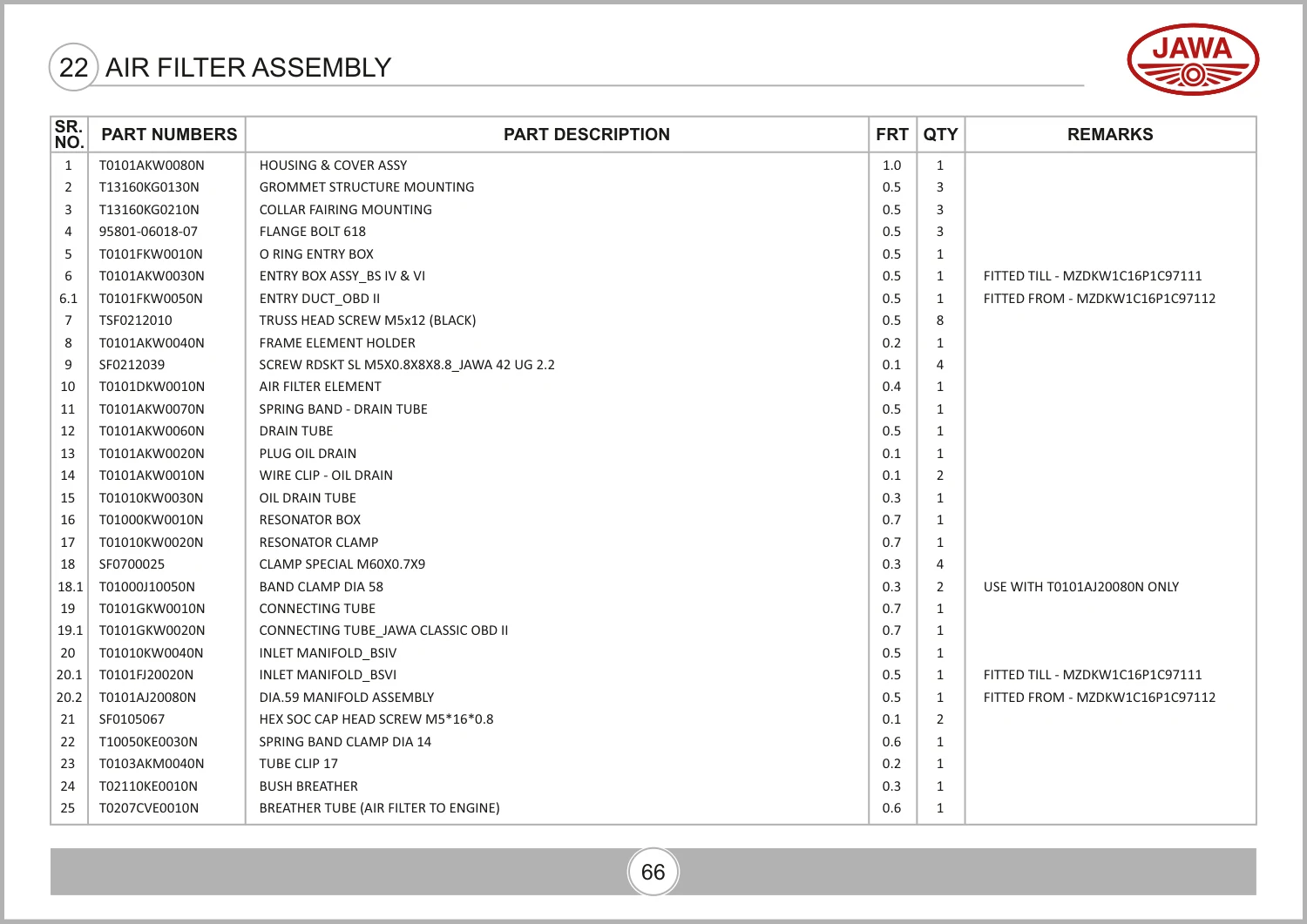

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 80, parts table page 81. View original parts table ↗
