Jawa & Jawa 42 Platform · ASSEMBLY 24 · REV 36

Brake System - Front & Rear (Dual Channel ABS)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Brake System - Front & Rear (Dual Channel ABS) exploded assembly diagram, catalogue page 71

Jawa & Jawa 42 Platform · Rev 36 · p. 71Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Front Master Cylinder – Lever Assy (Dia 13)T2001DKE0020N	1	Enquiry ↗
1.1	Front Master Cylinder, J3T2501DJ30010N	1	Enquiry ↗
2	Hose, Front M/C To ABS Kit J1 Dual ChannelT2501HKW0030N	1	Enquiry ↗
3	Wet ABS Unit J1 Dual ChannelT2501AKW0021N	1	Enquiry ↗
4	Hose, ABS To Front Caliper Kit J1 Dual ChannelT2501HKW0040N	1	Enquiry ↗
5	Caliper Front Brake RHT19010KW0020N	1	Enquiry ↗
5.1	Caliper Front Brake RH J3T1901KJ30010N	1	Enquiry ↗
6	Bolt Hex Fl M8X1.25X28X8.8SF0102572	2	Enquiry ↗
6.1	Bolt Hex Fl M8X1.25X35X10.9SF0102343	2	Enquiry ↗
6.2	Bolt Hex Fl M8X1.25X35X10.9 Black Jawa 42 Ug 2.2SF0102642	2	Enquiry ↗
7	Hose, ABS To Rear Master Cylinder Kit J1 Dual ChannelT2501HKW0050N	1	Enquiry ↗
8	Hose, ABS To Rear Caliper Kit J1 Dual ChannelT2501HKW0060N	1	Enquiry ↗
9	Caliper Assy, Rear Brake RHT2001CKW0040N	1	Enquiry ↗
10	Rear Master Cyl Assy (Dia 12)T2001EKE0021N	1	Enquiry ↗
11	Flange Bolt M6*20SP0906029	2	Enquiry ↗
12	Reservoir ABS (J101)T25010KE0030N	1	Enquiry ↗
13	Hose, Reservoir J1T2501HKW0010N	1	Enquiry ↗
14	Bracket, Rmc ReservoirT25010KW0020N	1	Enquiry ↗
14.1	Bracket, Rmc Reservoir Jawa 42 Ug 2.2T25010KW0060N	1	Enquiry ↗
15	Screw Rdskt M6X1X12Xa2-70SF0212023	1	Enquiry ↗
15.1	Button Head Socket Screw M6X20TSF0212013	1	Enquiry ↗
15.2	Screw Rdskt M6X1X20X8.8 Black Jawa 42 Ug 2.2SF0212050	1	Enquiry ↗
16	Torsion Return Spring, Rear Brake PedalT20000KW0170N	1	Enquiry ↗
17	Rear Brake Lever Sub Assy DiscT20010KW0130N	1	Enquiry ↗
17.1	Rear Brake Lever Sub Assy Black DiscT20010KW0130E	1	Enquiry ↗
17.2	Rear Brake Lever Sub Assy Disc Jawa 42 Ug 2.2T20010KW0130T	1	Enquiry ↗
18	Pin Pivot, Rear Brake PedalT20010KW0100N	1	Enquiry ↗
18.1	Pin Pivot, Rear Brake Pedal Jawa 42 Ug 2.2T20010KW0150N	1	Enquiry ↗
19	Locking PinT25000KE0310N	1	Enquiry ↗
20	Washer Plain 6 Mm94101-06000	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

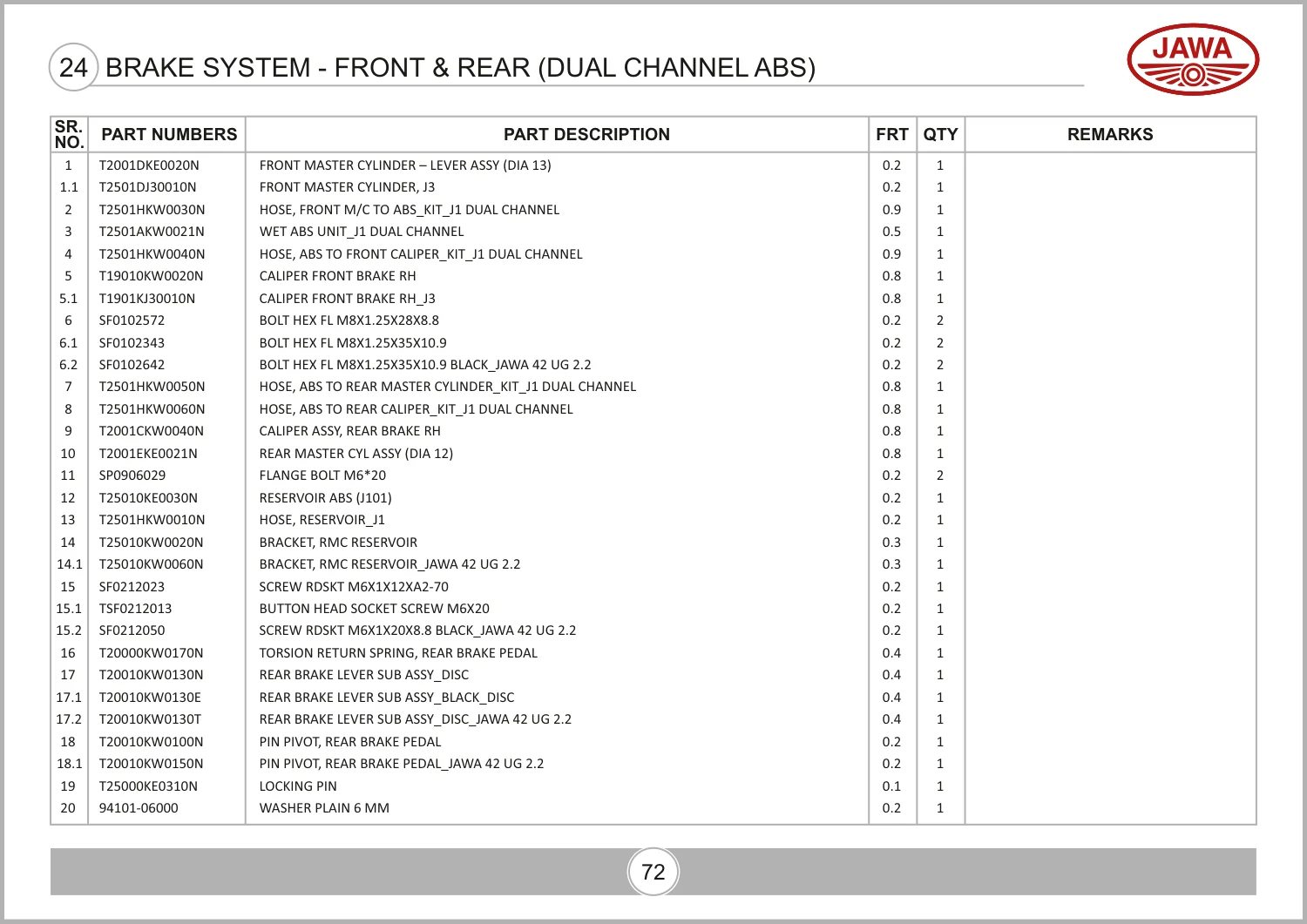

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 86, parts table page 87. View original parts table ↗
