Jawa & Jawa 42 Platform · ASSEMBLY 24 · REV 36
Brake System - Front & Rear (Dual Channel ABS)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 73Original parts list ↗
Parts in this drawing
17 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 20.1 | Washer 6.4X12.4X1 Jawa 42 Ug 2.2T0208AVF0140N | 1 | |
| 21 | A02-Split Pin 2 X 16 Is:549MF01920001500 | 1 | |
| 22 | Banjo Bolt KitT1901JKW0020N | 8 | |
| 23 | Special Washer (RR Shock ABS. Mtg,)MF01700003500 | 1 | |
| 24 | Rear Reservoir Hose ClipT25000KW0010N | 2 | |
| 25 | Cable Strap 200MmT1501AKE2050E | 5 | |
| 26 | Speed Sensor Front Wheel M104T0602FKE0010N | 1 | |
| 27 | Socket Head Screw M6X16 Black (Locktite)TSF0224080 | 1 | |
| 28 | Bleeder Screw KitT2001KKW0010N | 1 | |
| 29 | Rear Brake Pad KitT2001KKW0020N | 1 | |
| 30 | Pad Pin KitT2001KKW0030N | 1 | |
| 31 | Boot KitT2001KKW0040N | 1 | |
| 32 | Double Cable Clip Rev0 L1 A2T1501AKW0070N | 3 | |
| 33 | Rear Master Cyl Pressure Switch KitT2501EKW0020N | 1 | |
| 34 | Brake Oil Reservoir Cover Jawa 42 Ug 2.2T20000Y50020N | 1 | |
| 35 | Rubber Strap 60 Mm Jawa 42 Ug 2.2T08000B10410N | 1 | |
| 36 | Clip Constant 8X4.75 Jawa 42 Ug 2.2SF5201005 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

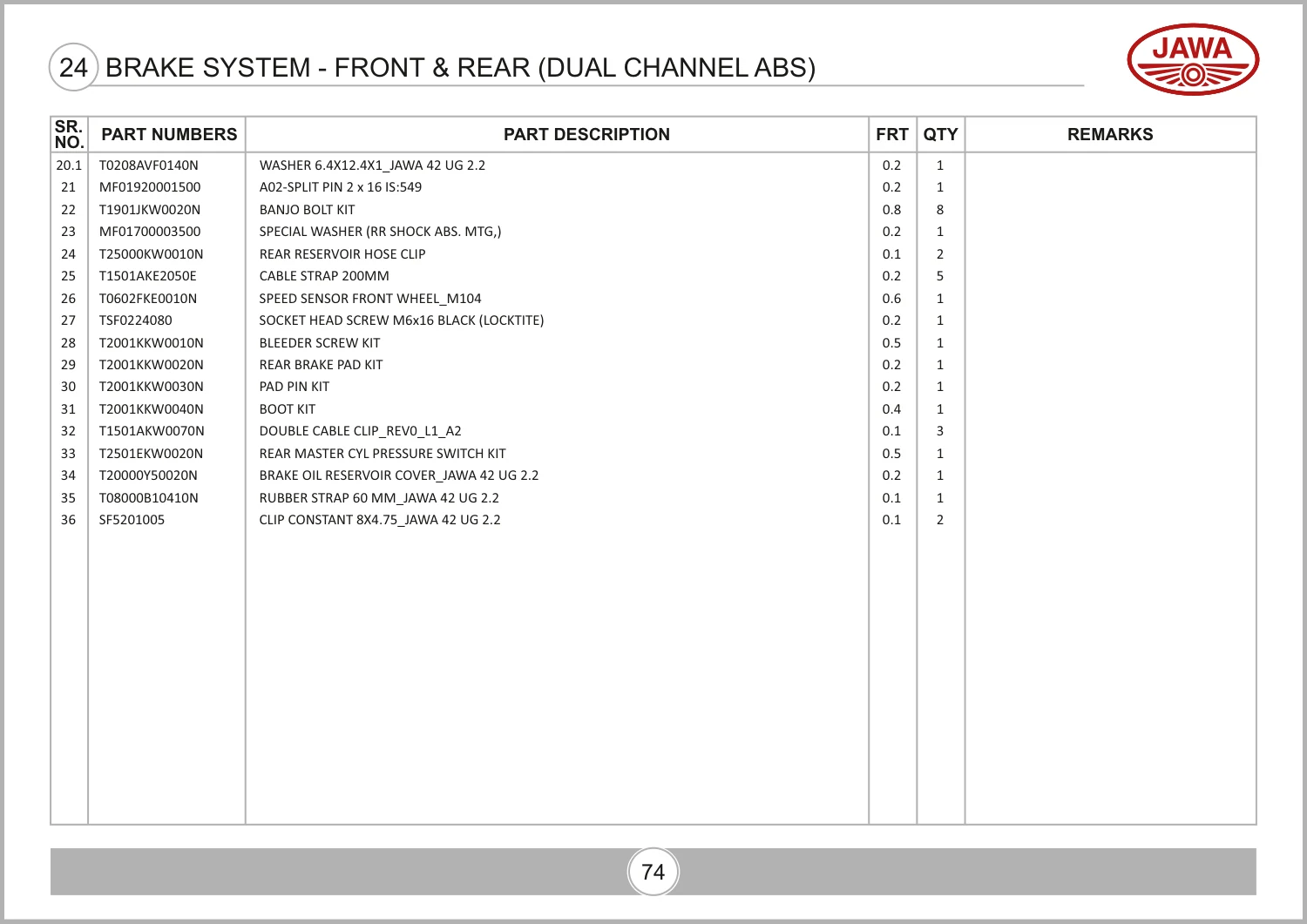

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 88, parts table page 89. View original parts table ↗
