Front Wheel Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Front Wheel Assembly exploded assembly diagram, catalogue page 83

Jawa & Jawa 42 Platform · Rev 36 · p. 83Original parts list ↗

Parts in this drawing

27 entries

Ref.	Part name / number	Assembly qty.	Action
1	Self Lock Nut M16TSF0318003	1	Enquiry ↗
2	Washer 16 MmTSF0400010	1	Enquiry ↗
3	Rim Assy, FrontT06010KW0040N	1	Enquiry ↗
3.1	Rim Assy, Front BlackT06010KW0040E	1	Enquiry ↗
4	Rim, Spoke Wheel Front (2.15X18)T0601AKW0010N	1	Enquiry ↗
4.1	Rim, Spoke Wheel Front (2.15X18) BlackT0601AKW0010E	1	Enquiry ↗
5	Axle Front Wheel EuivT0601GKW0040N	1	Enquiry ↗
6	Inner Spoke, FrontT0601JKW0010N	18	Enquiry ↗
7	Outer Spoke, FrontT0601JKW0020N	18	Enquiry ↗
8	Spoke NippleT0601JKW0030N	36	Enquiry ↗
9	Front Wheel Hub Comp, MachiningT0601HKW0020N	1	Enquiry ↗
9.1	Front Wheel Hub Comp, Machining BlackT0601HKW0020E	1	Enquiry ↗
10	Spacer Assy Inner, Front WheelT0601CKW0050N	1	Enquiry ↗
11	External Spacer RH, FrontT0601CKW0070N	1	Enquiry ↗
12	Wheel Bearing 6203 (17X40X12)T0601DKW0021N	2	Enquiry ↗
13	Front Dust Seal (A22X40X7)T0601EKW0021N	2	Enquiry ↗
14	Coupler For Front Hub & Disc, MachiningT0601HKW0030N	1	Enquiry ↗
14.1	Coupler For Front Hub & Disc, Machining BlackT0601HKW0030E	1	Enquiry ↗
15	Socket Head Screw M8X20 (10.9 Grade)SP0308009	5	Enquiry ↗
16	Front Disc (RH, D=280)T0601AKW0020N	1	Enquiry ↗
17	Toner Wheel FrontT0602LKE0010N	1	Enquiry ↗
18	Screw Special M8X1.25X28Xa2-70SF0200097	5	Enquiry ↗
19	Alloy Wheel, Front, Mt 2.5X18T0601AKW0030N	1	Enquiry ↗
19.1	Alloy Wheel, Front, Mt 2.5X18 Jawa 42 Ug 2.2, Jawa 42 Dual DiscT0601AKW0060N	1	Enquiry ↗
20	Shim For Toner Wheel FrontT0601CKW0080N	1	Enquiry ↗
21	Kit External Spacer & Shim J1A/J1B BSIV/BSVIT06010KW0070N	1	Enquiry ↗
22	Circlip Int-Lug 40X1.75Xph (For Alloy Wheels)SF0602007	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

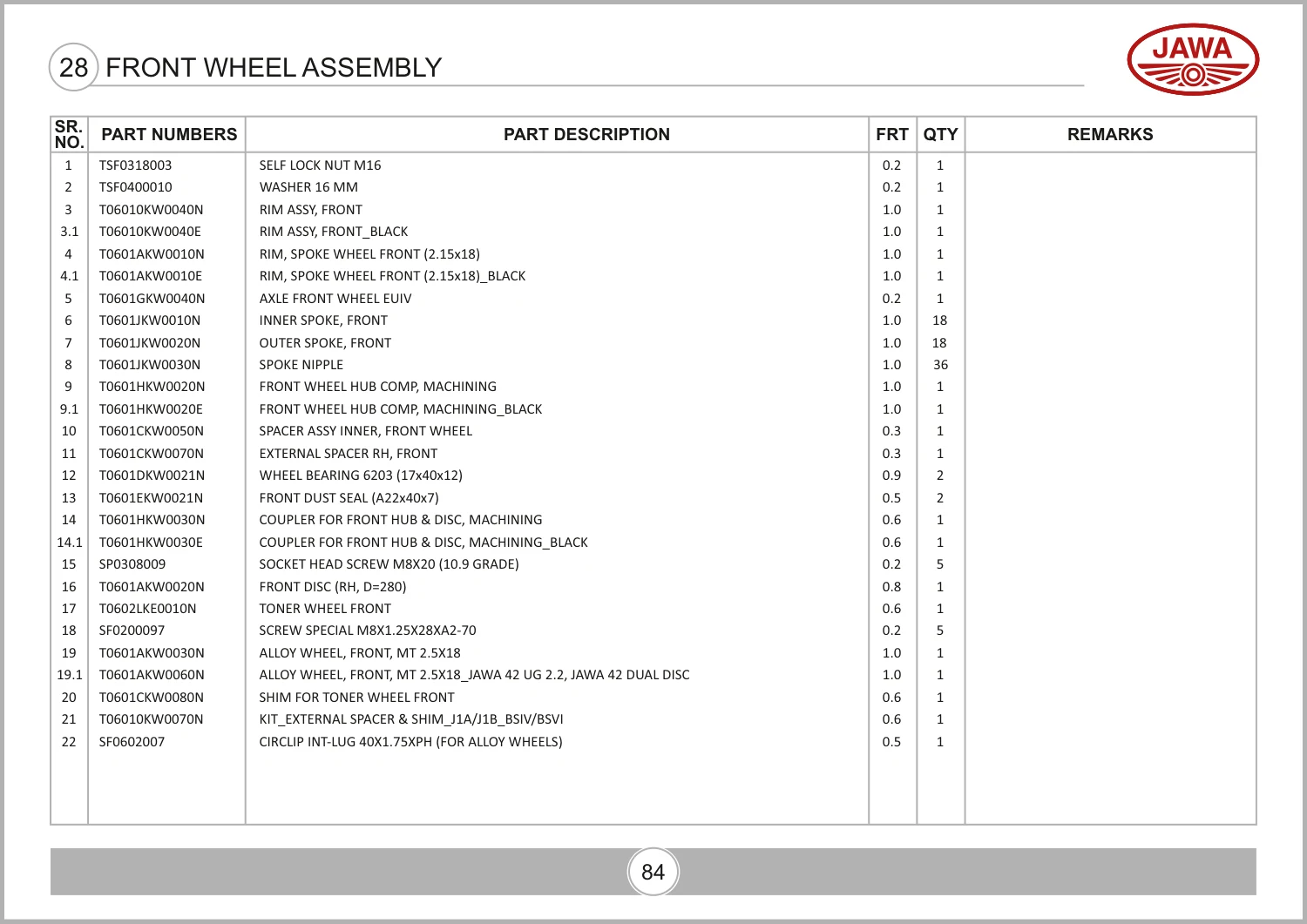

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 98, parts table page 99. View original parts table ↗
