Jawa & Jawa 42 Platform · ASSEMBLY 27 · REV 36
Foot Rest Assembly/ Rear Brake Pedal/ Gear Shift Lever / Lock Set
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 81Original parts list ↗
Parts in this drawing
21 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 19 | Compression Spring (Rear Brake Rod)T20000KW0150N | 1 | |
| 20 | Adjuster, Rear Brake RodT20000KW0070N | 1 | |
| 21 | Pin Pivot, Rear Brake RodT20000KW0050N | 1 | |
| 22 | Rear Brake Rod AssyT1201GKW0020N | 1 | |
| 23 | Return Spring, Rear Brake PedalT20010KW0110N | 1 | |
| 24 | Rubber Sleeve, Return SpringT20000KW0140N | 1 | |
| 25 | Nut Hex M6X1X5X8XznSF0301005 | 1 | |
| 26 | Screw Rdskt M6X1X40Xa2-70 Jawa 42 Ug 2.2SF0212027 | 1 | |
| 27 | Bolt Fl.6 X 1295701-06012-00 | 8 | |
| 28 | Stop Switch Assy (Rear Brake)MF00730000600 | 1 | |
| 29 | Spring, Brake SwitchT20010KW0120N | 1 | |
| 30 | Flange Bolt M6 X 20SP0906029 | 1 | |
| 31 | Gear Shift Lever Assly(Sub Assembly)T0215DKW0010N | 1 | |
| 31.1 | Gear Shift Lever Assly(Sub Assembly) BlackT0215DKW0010E | 1 | |
| 32 | Lock Set Kit J1AT08000KW0350N | 1 | |
| 32.1 | Lock Set Kit J1BT08000KW0200N | 1 | |
| 32.2 | Lock Set Kit OBD-II Phase-2 (E20) Jawa 42 Ug 2.2/Jawa 42 Dual DiscT08000J30200N | 1 | |
| 33 | Stop Switch Bracket (Rear Brake)T08000KW0410N | 1 | |
| 34 | Flanged Head Bolt-Sh M6X12SP0906041 | 1 | |
| 35 | Pin Friction Free Jawa 42 Ug 2.2T22000J20080N | 2 | |
| 36 | Rotation Spring Jawa 42 Ug 2.2MH01820003800 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

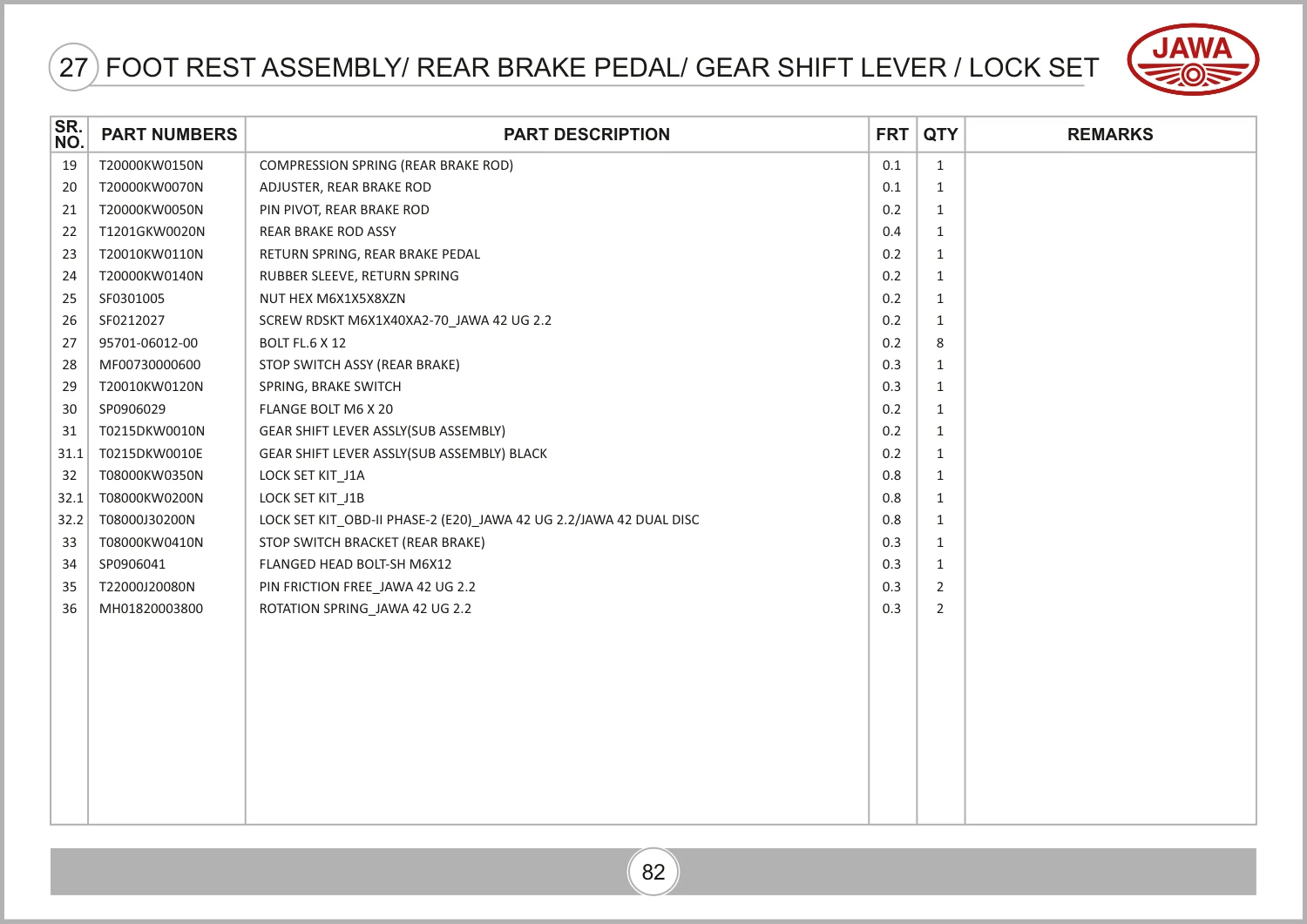

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 96, parts table page 97. View original parts table ↗
