Jawa & Jawa 42 Platform · ASSEMBLY 31 · REV 36

Radiator

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Radiator exploded assembly diagram, catalogue page 97

Jawa & Jawa 42 Platform · Rev 36 · p. 97Original parts list ↗

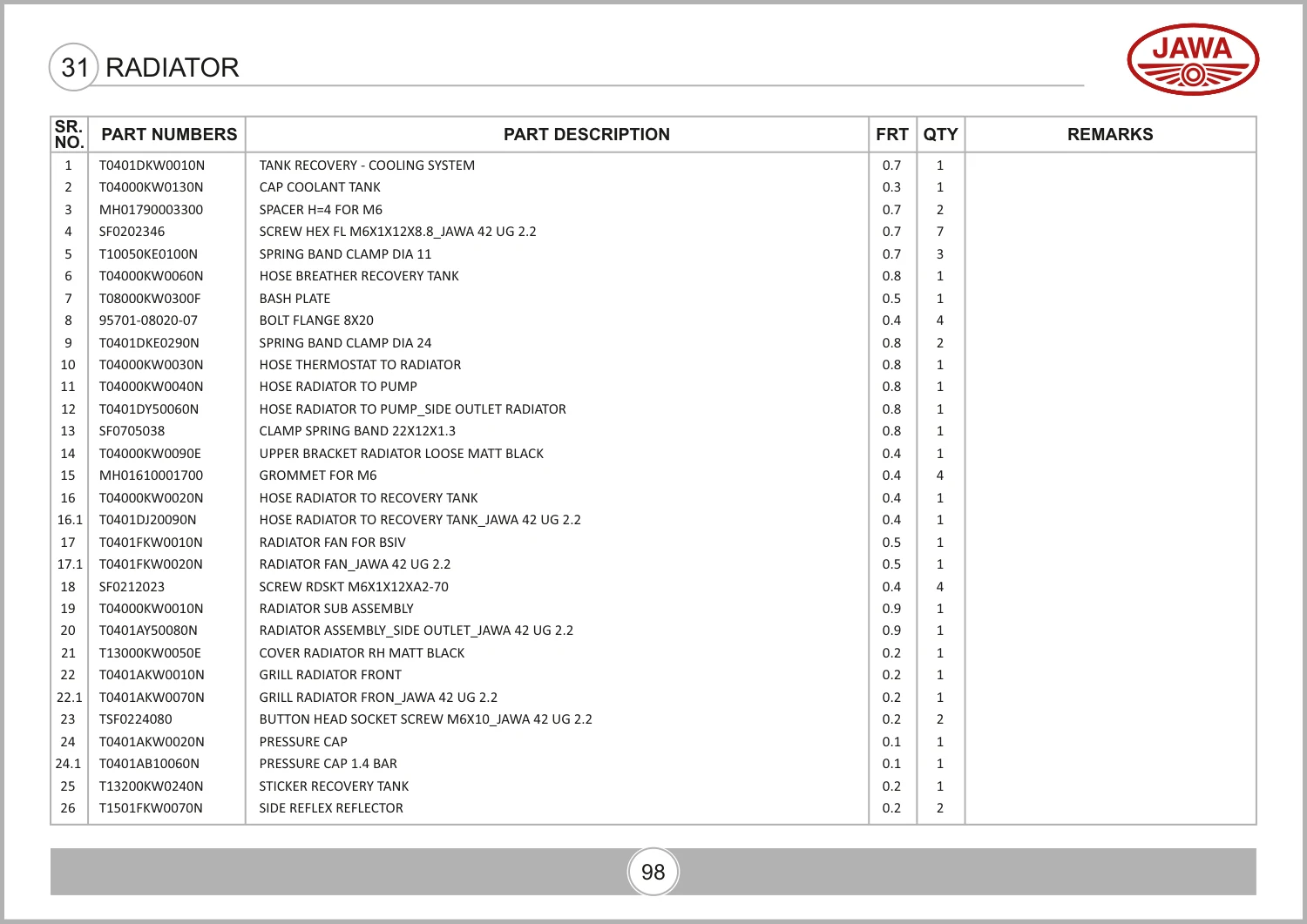

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Tank Recovery - Cooling SystemT0401DKW0010N	1	Enquiry ↗
2	Cap Coolant TankT04000KW0130N	1	Enquiry ↗
3	Spacer H=4 For M6MH01790003300	2	Enquiry ↗
4	Screw Hex Fl M6X1X12X8.8 Jawa 42 Ug 2.2SF0202346	7	Enquiry ↗
5	Spring Band Clamp Dia 11T10050KE0100N	3	Enquiry ↗
6	Hose Breather Recovery TankT04000KW0060N	1	Enquiry ↗
7	Bash PlateT08000KW0300F	1	Enquiry ↗
8	Bolt Flange 8X2095701-08020-07	4	Enquiry ↗
9	Spring Band Clamp Dia 24T0401DKE0290N	2	Enquiry ↗
10	Hose Thermostat To RadiatorT04000KW0030N	1	Enquiry ↗
11	Hose Radiator To PumpT04000KW0040N	1	Enquiry ↗
12	Hose Radiator To Pump Side Outlet RadiatorT0401DY50060N	1	Enquiry ↗
13	Clamp Spring Band 22X12X1.3SF0705038	1	Enquiry ↗
14	Upper Bracket Radiator Loose Matt BlackT04000KW0090E	1	Enquiry ↗
15	Grommet For M6MH01610001700	4	Enquiry ↗
16	Hose Radiator To Recovery TankT04000KW0020N	1	Enquiry ↗
16.1	Hose Radiator To Recovery Tank Jawa 42 Ug 2.2T0401DJ20090N	1	Enquiry ↗
17	Radiator Fan For BSIVT0401FKW0010N	1	Enquiry ↗
17.1	Radiator Fan Jawa 42 Ug 2.2T0401FKW0020N	1	Enquiry ↗
18	Screw Rdskt M6X1X12Xa2-70SF0212023	4	Enquiry ↗
19	Radiator Sub AssemblyT04000KW0010N	1	Enquiry ↗
20	Radiator Assembly Side Outlet Jawa 42 Ug 2.2T0401AY50080N	1	Enquiry ↗
21	Cover Radiator RH Matt BlackT13000KW0050E	1	Enquiry ↗
22	Grill Radiator FrontT0401AKW0010N	1	Enquiry ↗
22.1	Grill Radiator Fron Jawa 42 Ug 2.2T0401AKW0070N	1	Enquiry ↗
23	Button Head Socket Screw M6X10 Jawa 42 Ug 2.2TSF0224080	2	Enquiry ↗
24	Pressure CapT0401AKW0020N	1	Enquiry ↗
24.1	Pressure Cap 1.4 BarT0401AB10060N	1	Enquiry ↗
25	Sticker Recovery TankT13200KW0240N	1	Enquiry ↗
26	Side Reflex ReflectorT1501FKW0070N	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 112, parts table page 113. View original parts table ↗
