Jawa & Jawa 42 Platform · ASSEMBLY 35 · REV 36
Rear Wheel Assembly - Single Channel ABS
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 113Original parts list ↗
Parts in this drawing
23 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Kit Drive Chain SprocketT1201MKW0020N | 1 | |
| 2 | Chain 98 LinksT14080KW0010N | 1 | |
| 3 | Rim Assembly RearT12010KW0120N | 1 | |
| 4 | Rim, Rear Spoke Wheel (2.50X17)T1201KKW0010N | 1 | |
| 5 | Inner Spoke, RearT1201KKW0020N | 18 | |
| 6 | Outer Spoke, RearT1201KKW0030N | 18 | |
| 7 | Spoke NippleT0601JKW0030N | 36 | |
| 8 | Self Lock Nut M16TSF0318003 | 1 | |
| 9 | Rear Wheel Hub Comp, MachiningT1201HKW0010N | 1 | |
| 10 | Spacer Assy Inner, Rear WheelT1201CKW0050N | 1 | |
| 11 | Bolt Special M16X1.5X305X10.9SF0100083 | 1 | |
| 12 | Wheel Bearing 6203 (17X40X12)T0601DKW0021N | 2 | |
| 13 | Cush DriveMH01270000500 | 4 | |
| 14 | Cush Drive Housing, MachinedT12010KW0040N | 1 | |
| 15 | Cush Drive Housing Bearing 6005(25X47X12)T1201DKW0031N | 1 | |
| 16 | Chain Sprocket (Rear 45T)T1201MKW0010N | 1 | |
| 17 | Rear LH Dust Seal A31X47X7T1201EKW0021N | 1 | |
| 18 | Socket Head Screw M8X28SP0308023 | 5 | |
| 19 | Self-Tapping Nut For M8 (White)MH01680001700 | 5 | |
| 20 | Axle, Cush Drive HousingT1201CKW0040N | 1 | |
| 21 | Hex Nut M24X1SF0301197 | 1 | |
| 22 | Spacer Rear Wheel (LH Side)T1201CKW0020N | 1 | |
| 23 | Spacer Rear Wheel (RH Side)T1201CKW0030N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

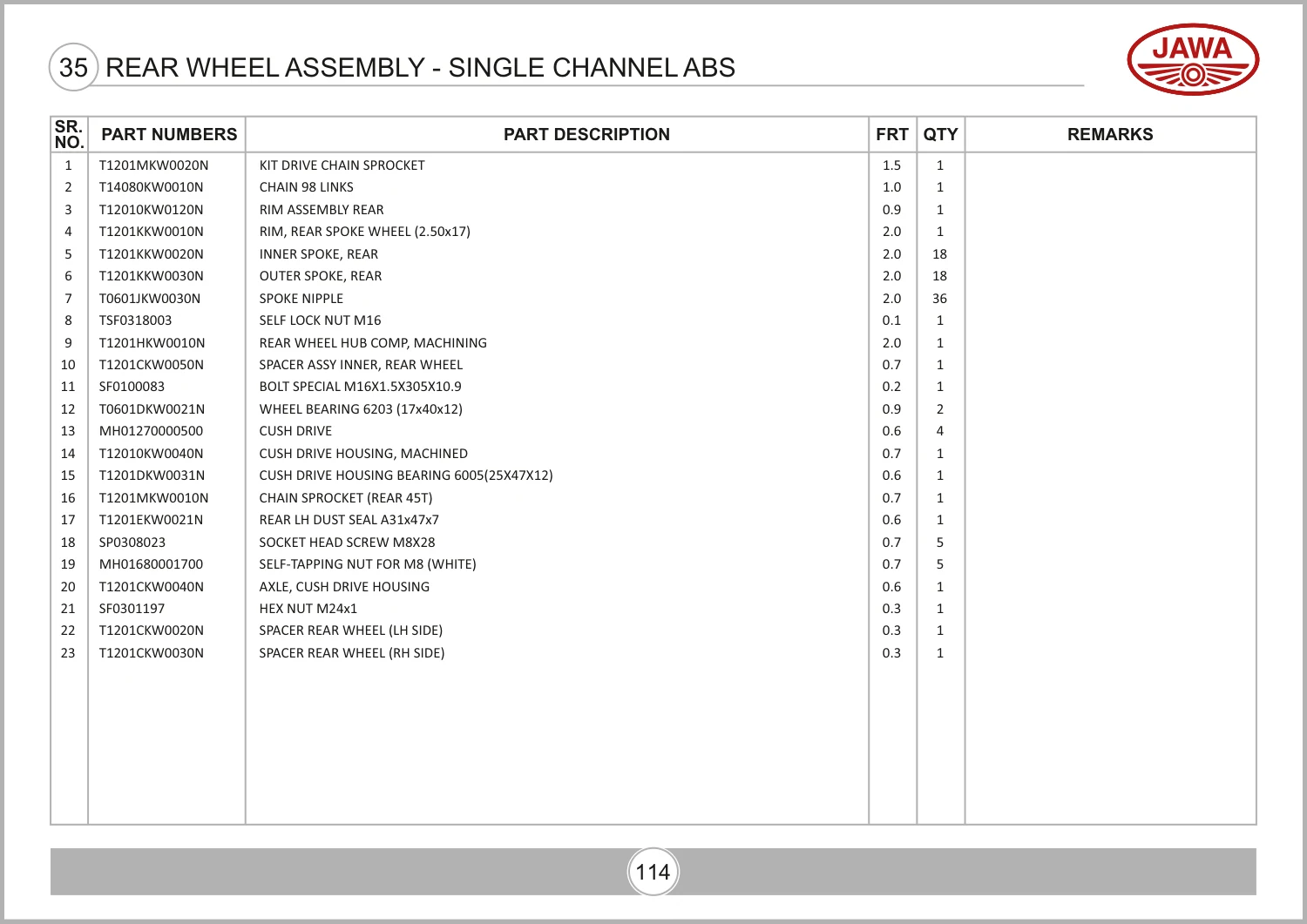

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 128, parts table page 129. View original parts table ↗
