Jawa & Jawa 42 Platform · ASSEMBLY 36 · REV 36

Rear Wheel Assembly - Dual Channel ABS

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Rear Wheel Assembly - Dual Channel ABS exploded assembly diagram, catalogue page 115

Jawa & Jawa 42 Platform · Rev 36 · p. 115Original parts list ↗

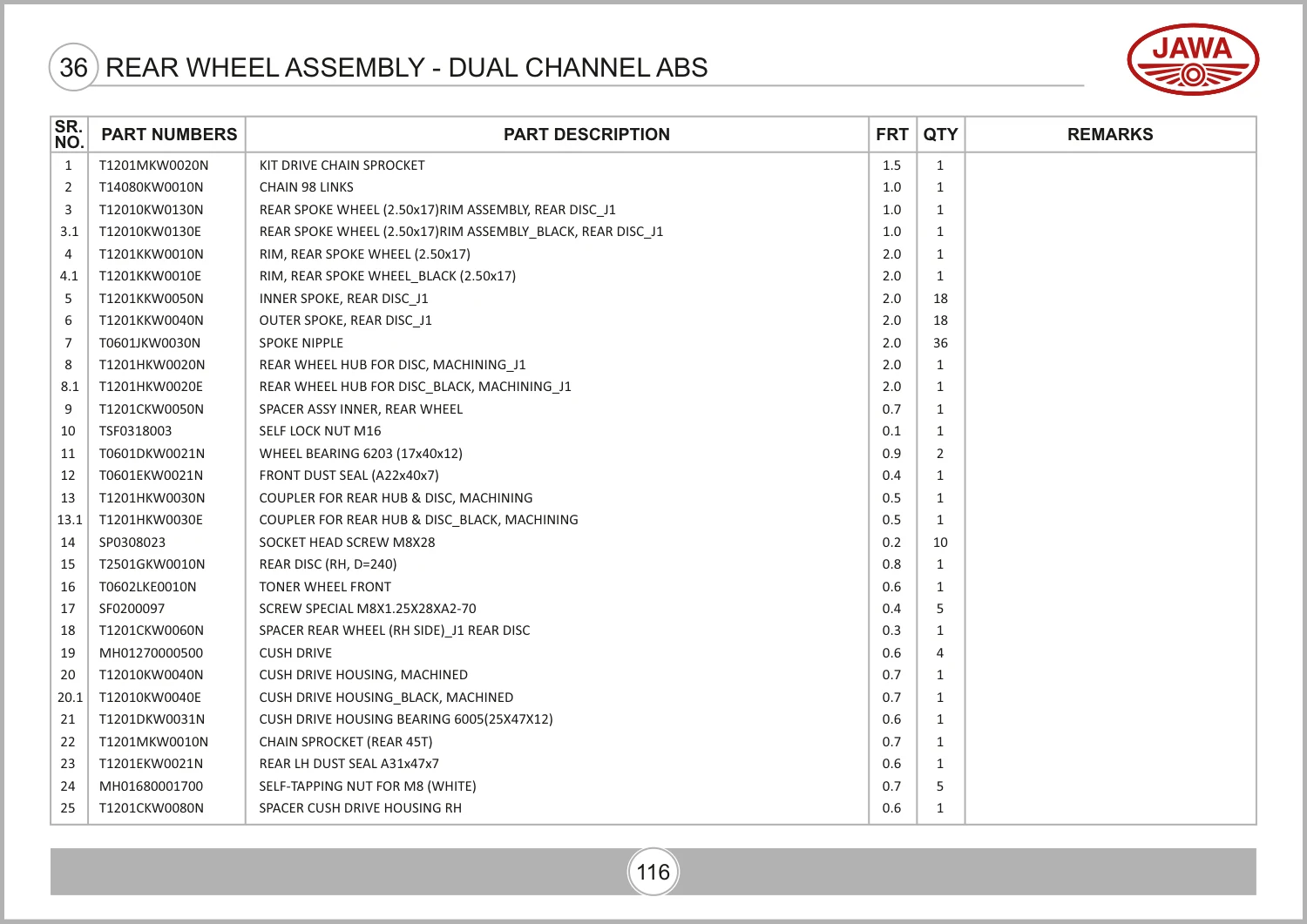

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Kit Drive Chain SprocketT1201MKW0020N	1	Enquiry ↗
2	Chain 98 LinksT14080KW0010N	1	Enquiry ↗
3	Rear Spoke Wheel (2.50X17)Rim Assembly, Rear Disc J1T12010KW0130N	1	Enquiry ↗
3.1	Rear Spoke Wheel (2.50X17)Rim Assembly Black, Rear Disc J1T12010KW0130E	1	Enquiry ↗
4	Rim, Rear Spoke Wheel (2.50X17)T1201KKW0010N	1	Enquiry ↗
4.1	Rim, Rear Spoke Wheel Black (2.50X17)T1201KKW0010E	1	Enquiry ↗
5	Inner Spoke, Rear Disc J1T1201KKW0050N	18	Enquiry ↗
6	Outer Spoke, Rear Disc J1T1201KKW0040N	18	Enquiry ↗
7	Spoke NippleT0601JKW0030N	36	Enquiry ↗
8	Rear Wheel Hub For Disc, Machining J1T1201HKW0020N	1	Enquiry ↗
8.1	Rear Wheel Hub For Disc Black, Machining J1T1201HKW0020E	1	Enquiry ↗
9	Spacer Assy Inner, Rear WheelT1201CKW0050N	1	Enquiry ↗
10	Self Lock Nut M16TSF0318003	1	Enquiry ↗
11	Wheel Bearing 6203 (17X40X12)T0601DKW0021N	2	Enquiry ↗
12	Front Dust Seal (A22X40X7)T0601EKW0021N	1	Enquiry ↗
13	Coupler For Rear Hub & Disc, MachiningT1201HKW0030N	1	Enquiry ↗
13.1	Coupler For Rear Hub & Disc Black, MachiningT1201HKW0030E	1	Enquiry ↗
14	Socket Head Screw M8X28SP0308023	10	Enquiry ↗
15	Rear Disc (RH, D=240)T2501GKW0010N	1	Enquiry ↗
16	Toner Wheel FrontT0602LKE0010N	1	Enquiry ↗
17	Screw Special M8X1.25X28Xa2-70SF0200097	5	Enquiry ↗
18	Spacer Rear Wheel (RH Side) J1 Rear DiscT1201CKW0060N	1	Enquiry ↗
19	Cush DriveMH01270000500	4	Enquiry ↗
20	Cush Drive Housing, MachinedT12010KW0040N	1	Enquiry ↗
20.1	Cush Drive Housing Black, MachinedT12010KW0040E	1	Enquiry ↗
21	Cush Drive Housing Bearing 6005(25X47X12)T1201DKW0031N	1	Enquiry ↗
22	Chain Sprocket (Rear 45T)T1201MKW0010N	1	Enquiry ↗
23	Rear LH Dust Seal A31X47X7T1201EKW0021N	1	Enquiry ↗
24	Self-Tapping Nut For M8 (White)MH01680001700	5	Enquiry ↗
25	Spacer Cush Drive Housing RHT1201CKW0080N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 130, parts table page 131. View original parts table ↗
