Jawa & Jawa 42 Platform · ASSEMBLY 37 · REV 36

Side Stand / Sub - Frame Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform · Rev 36 · p. 119Original parts list ↗

26 entries

Ref.	Part name / number	Assembly qty.	Action
1	Saree GuardT14050KW0020N	1	Enquiry ↗
2	Side Stand Maroon Ral3005T2301AKW0010A	1	Enquiry ↗
2.1	Side Stand Black 6CT2301AKW0010E	1	Enquiry ↗
2.2	Side Stand Grey Ral7035T2301AKW0010L	1	Enquiry ↗
2.3	Side Stand Black GlossyT2301AKW0010W	1	Enquiry ↗
2.4	Side Stand Solid Bc Red Jm94T2301AKW0010F	1	Enquiry ↗
2.5	Forged Side Stand Blk Gly - Sht Mtl FrmT2301AKW0080N	1	Enquiry ↗
2.6	Side Stand Forgd Blk Glsy Fr Forgd FrameT2301AKW0060W	1	Enquiry ↗
2.7	Side Stand Jawa 42 Ug 2.2T2301AJ20010E	1	Enquiry ↗
3	Spring Side Stand JawaT2302BKW0010N	1	Enquiry ↗
4	Step Bolt Side Stand JawaT2302BKW0020N	1	Enquiry ↗
5	Nut Nyloc M10X1.25X11.50X6 Jawa 42 Ug 2.2SF0302158	1	Enquiry ↗
6	Nut Hex Fl Pr M61.07.08SF0303067	1	Enquiry ↗
6.1	Nut Hex Fl M6X1X7.5X8 Jawa 42 Ug 2.2SF0303112	1	Enquiry ↗
7	Flange Bolt Sh - M6 X 40SP0906032	3	Enquiry ↗
8	Screw Hex Fl M10X1.5X40X10.9SF0202068	2	Enquiry ↗
8.1	Screw Pan Hxlob M10X1.25X40X10.9 Jawa 42 UgSF0237014	2	Enquiry ↗
8.2	Bolt Hex Fl M6X1X35X8.8 Jawa 42 Ug 2.2SF0102644	2	Enquiry ↗
9	Pillion Handle Side RH Black GlossyT08000KW0290W	1	Enquiry ↗
10	Pillion Handle Side LH Black GlossyT08000KW0240W	1	Enquiry ↗
11	Nut Hx Nyl Fl M10X1.50X13.5X10SF0315017	3	Enquiry ↗
11.1	Flange U Nut M10X1.25 Jawa 42 Ug 2.2TSF0318009	3	Enquiry ↗
12	Sub Frame Comp Black GlossyT08000KW0210W	1	Enquiry ↗
13	Bolt Hex M10X1.5X110X8.8XznSF0101088	1	Enquiry ↗
14	Washer M10 (10X22X2.0) Jawa 42 Ug 2.2TSF0401130	1	Enquiry ↗
15	Rubber Sleeve, Return SpringT20000KW0140N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

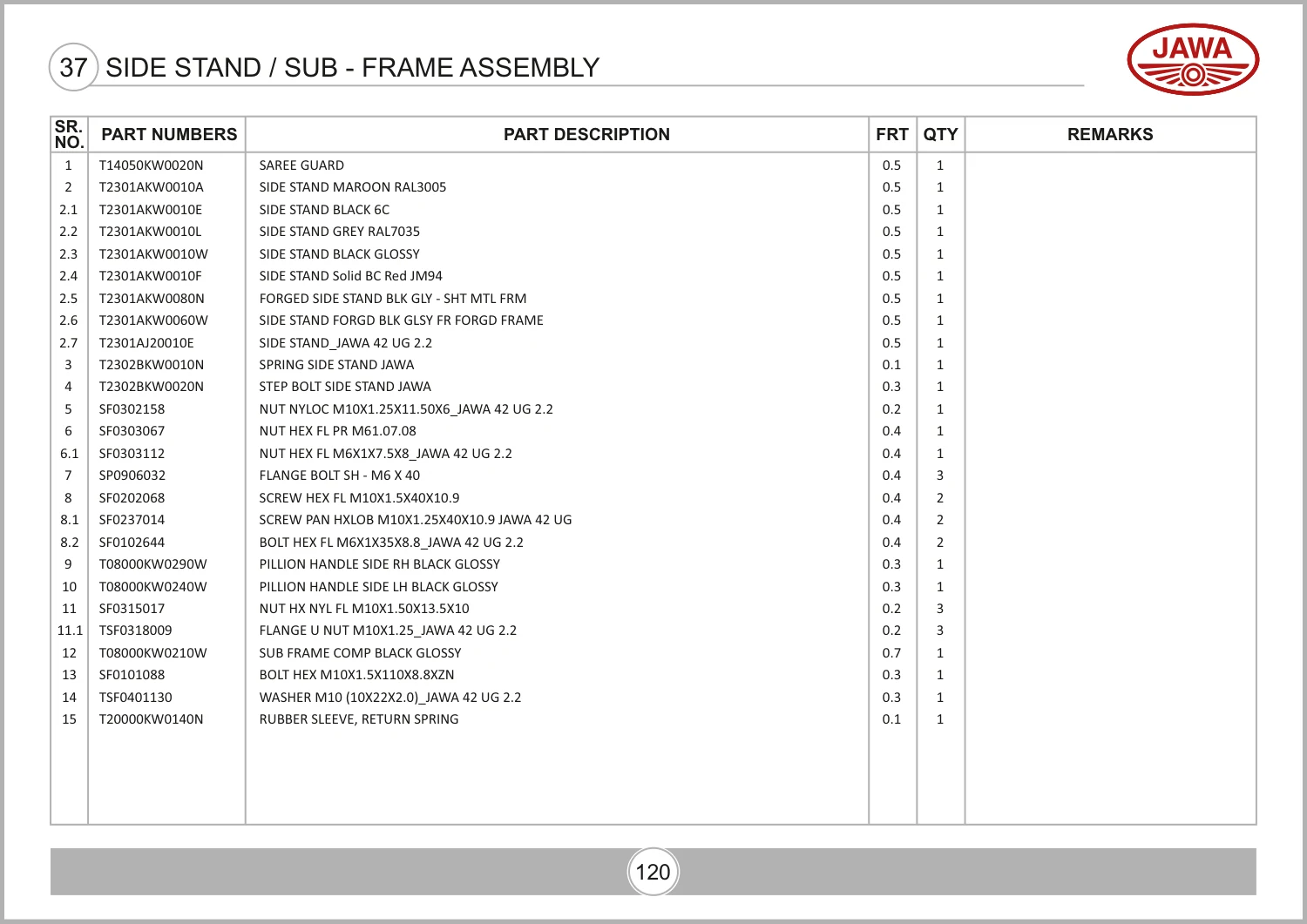

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 134, parts table page 135. View original parts table ↗
