Jawa & Jawa 42 Platform · ASSEMBLY 38 · REV 36
Seat Assembly - Jawa & Jawa 42
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 121Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Seat Mtg Bracket LHT09010KW0080N | 1 | |
| 2 | Seat Mtg Bracket RHT09010KW0090N | 1 | |
| 3 | Bolt Flange 6X1695701-06016-00 | 2 | |
| 4 | Seat Damper 9 MmT0901EKE1910N | 8 | |
| 5 | Seat Assembly (Jawa)T09010KW0050N | 1 | |
| 5.1 | Seat Assembly Jawa 42 Ug 2.2T09010KW0060N | 1 | |
| 6 | Seat StrapT09010KW0070N | 1 | |
| 7 | Seat Tongue Rubber DamperT0901EKW0010N | 1 | |
| 8 | Socket Head Screw M6X16SP0306011 | 2 | |
| 9 | Washer 6.5X20X1.6TSF0401124 | 2 | |
| 10 | Washer M6 (6.5X12X2)TSF0401132 | 2 | |
| 11 | Flanged Head Bolt-Sh M6X12SP0906041 | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

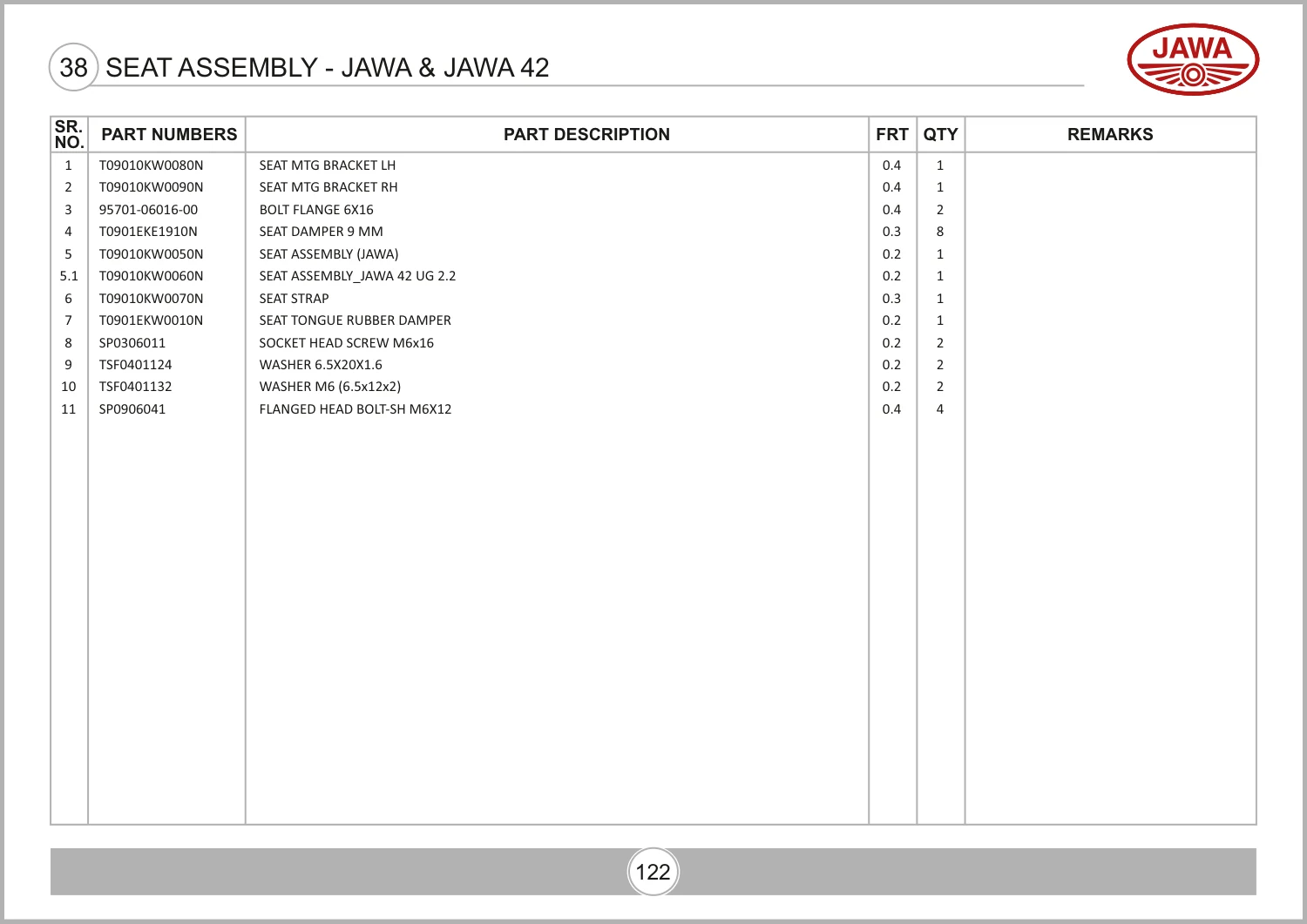

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 136, parts table page 137. View original parts table ↗
