Jawa & Jawa 42 Platform · ASSEMBLY 45 · REV 36

Front Fork Mountings

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Front Fork Mountings exploded assembly diagram, catalogue page 141

Jawa & Jawa 42 Platform · Rev 36 · p. 141Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Front Fork Cover Tube Maroon Ral3005T05010KW0050A	2	Enquiry ↗
1.1	Front Fork Cover Tube Black 6CT05010KW0050E	2	Enquiry ↗
1.2	Front Fork Cover Tubegrey Ral7035T05010KW0050L	2	Enquiry ↗
1.3	Front Fork Cover Matt Black Jawa 42 & Jawa 42 Dual Disc & Jawa 42 Og & Jawa 42 Og UgT05010KW0050W	2	Enquiry ↗
1.4	Front Fork Cover Tube Solid Bc Red Jm94T05010KW0050F	2	Enquiry ↗
1.5	Front Fork Cover Tube KhakiT05010KW0050T	2	Enquiry ↗
1.6	Front Fork Cover Tube Galaxy GreyT05010KW0050R	2	Enquiry ↗
2	Guide, Front Fork Cover TubeT05010KW0040N	2	Enquiry ↗
3	Fr Number Plate Holder Black 6C Single ChannelT08020KW0080E	1	Enquiry ↗
4	Spring Washer M8T0502BKW0030N	2	Enquiry ↗
5	Socket Head Bolt(M8X1.25X42)T0502BKW0040N	2	Enquiry ↗
6	Bracket Indicator Mounting FrontT13160KW0070N	1	Enquiry ↗
7	Screw Tbei M6X12 Uni 7380SP0706018	2	Enquiry ↗
8	Clamping Brkt 2,Brake HoseT05000KW0120N	1	Enquiry ↗
9	Socket Head Screw M8X16SP0708010	2	Enquiry ↗
10	RR Mounting Bracket Single Channel ABST08010KW0220N	1	Enquiry ↗
11	Bolt Fl.6 X 1295701-06012-00	2	Enquiry ↗
12	Regulator Rectifier-J1T1501CKW0010N	1	Enquiry ↗
13	Air DeflectorT13000KW0060N	1	Enquiry ↗
14	Bolt Flange 6X3095701-06030-00	2	Enquiry ↗
15	Caliper Front Brake RHT19010KW0020N	1	Enquiry ↗
15.1	Caliper Front Brake RH J3T1901KJ30010N	1	Enquiry ↗
16	Bolt Hex Fl M8X1.25X28X8.8SF0102331	2	Enquiry ↗
17	Speed Sensor Front Wheel M104T0602FKE0010N	1	Enquiry ↗
18	Socket Head Screw M6X16 Black (Locktite)TSF0224080	1	Enquiry ↗
19	Steering Lock MindaT08000KW0230N	1	Enquiry ↗
20	Screw FlatSF0109001	2	Enquiry ↗
21	Front Number Plate Holder Jawa Forty TwoT08020KW0070N	1	Enquiry ↗
22	Front Number PlateT14060KG0060N	1	Enquiry ↗
23	Screw Rdskt M5X0.8X12Xa2-70SF0212024	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

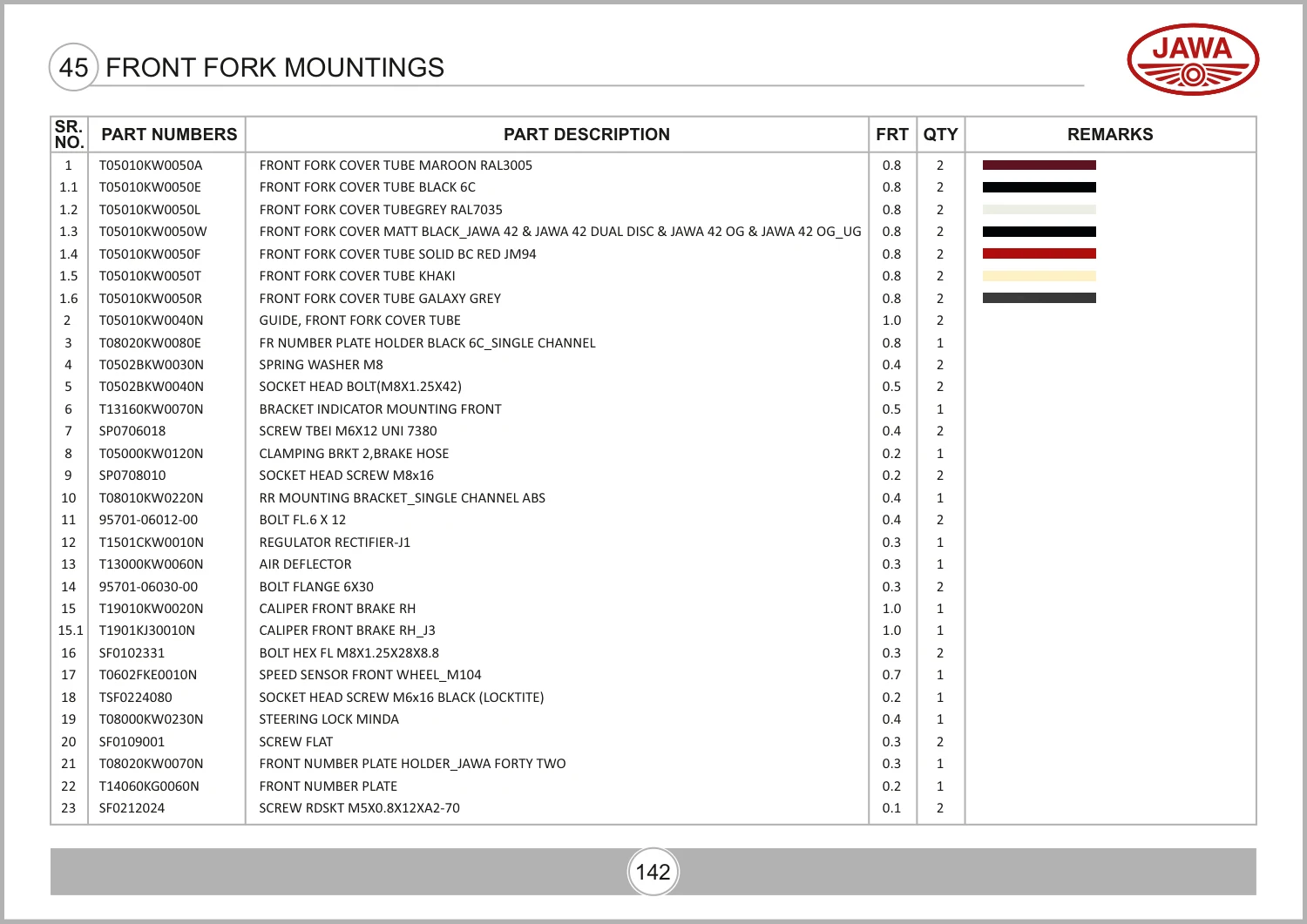

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 156, parts table page 157. View original parts table ↗
