Jawa & Jawa 42 Platform · ASSEMBLY 45 · REV 36
Front Fork Mountings
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 143Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 24 | Washer Plain M6X18X1.6SF0401090 | 2 | |
| 25 | Washer Spring L M8X14.8X2XzgSF0402030 | 2 | |
| 25.1 | Washer Plain M8X14X2 Jawa 42 Ug 2.2SF0401479 | 2 | |
| 26 | Double Cable Clip Rev0 L1 A2T1501AKW0070N | 3 | |
| 27 | Holder No Plate MtgT05010KW0280N | 1 | |
| 28 | Special, Bolt 8MmTSF0100005 | 2 | |
| 29 | RR Mounting Bracket Dual Channel ABST08000KW0440N | 1 | |
| 30 | Fr Number Plate Holder Black 6C Dual ChannelT08020KW0120E | 1 | |
| 31 | Fr Nmbr Plate Holdr Black Glossy Jawa 42T08020KW0130N | 1 | |
| 32 | Caliper Hose ClampT05050KW0010N | 1 | |
| 33 | Side Reflex Reflector Jawa 42 Ug 2.2T1501FB10020N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

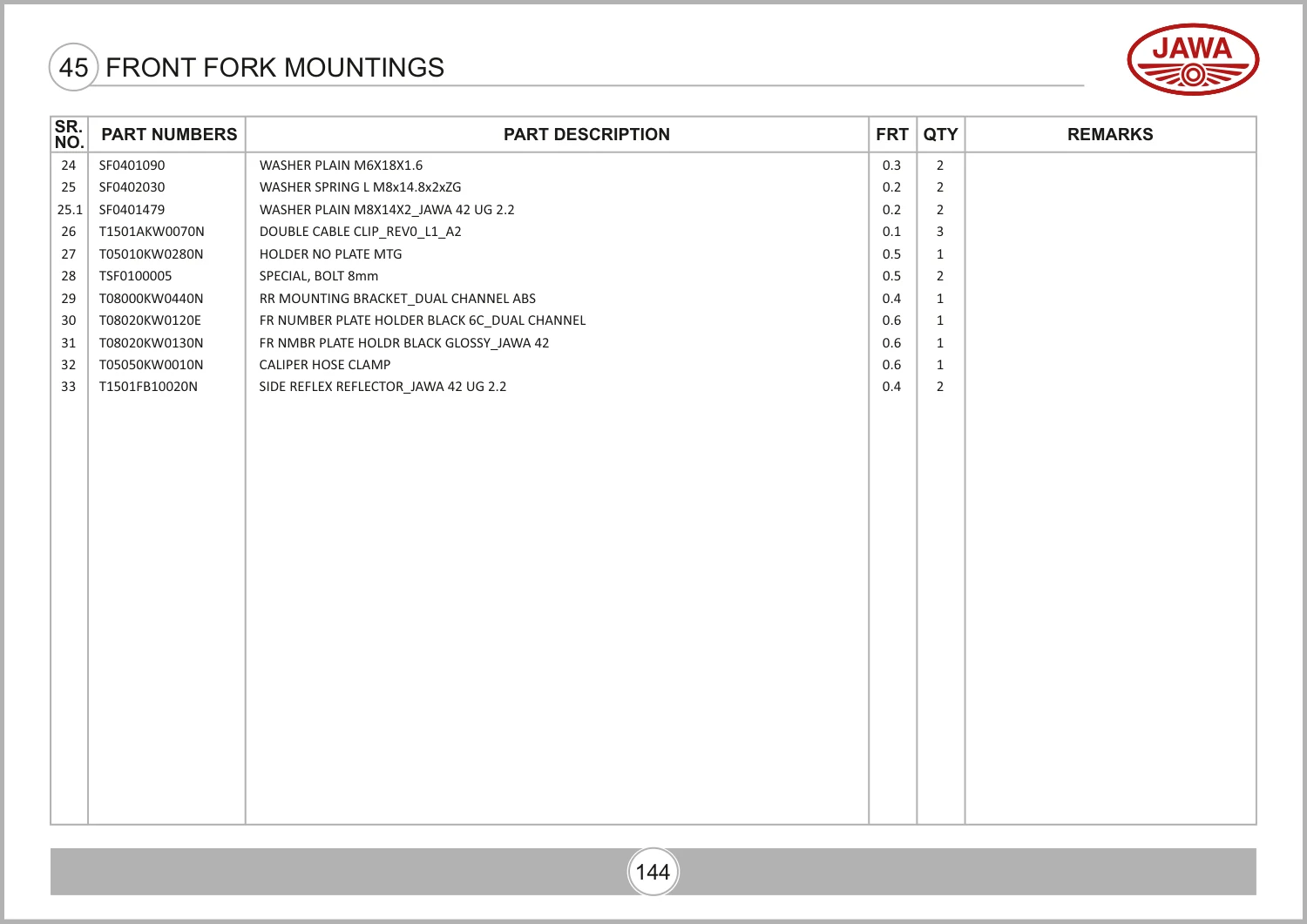

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 158, parts table page 159. View original parts table ↗
