Fairing Assembly (Jawa)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Fairing Assembly (Jawa) exploded assembly diagram, catalogue page 145

Jawa & Jawa 42 Platform · Rev 36 · p. 145Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
2	Collar Tail Lamp MtgMF01730000300	2	Enquiry ↗
3	Fr Fairing Lower Cowl Maroon Ral3005 JawaT13160KW0360A	1	Enquiry ↗
3.1	Fr Fairing Lower Cowl Black 6C JawaT13160KW0360E	1	Enquiry ↗
3.2	Front Cowl Lower Grey JawaT13160KW0360L	1	Enquiry ↗
3.3	Fr Fairing Lower Cowl Solid Bc Red Jm94T08020KW0050F	1	Enquiry ↗
3.4	Fr Fairing Lower Cowl KhakiT08020KW0050T	1	Enquiry ↗
3.5	Fr Fairing Lower Cowl Galaxy GreyT08020KW0050R	1	Enquiry ↗
3.6	Fr Fairing Lower Cowl Mystic Orange JawaT13160KW0360J	1	Enquiry ↗
4	Screw Rdskt M8X1.25X16Xa2-70SF0212025	6	Enquiry ↗
5	Fr Fairing Upper Cowl Maroon Ral3005T08020KW0040A	1	Enquiry ↗
5.1	Fr Fairing Upper Cowl Black 6CT08020KW0040E	1	Enquiry ↗
5.2	Fr Fairing Upper Cowl Grey Ral7035T08020KW0040L	1	Enquiry ↗
5.3	Fr Fairing Upper Cowl Solid Bc Red Jm94T08020KW0040F	1	Enquiry ↗
5.4	Fr Fairing Upper Cowl KhakiT08020KW0040T	1	Enquiry ↗
5.5	Fr Fairing Upper Cowl Galaxy GreyT08020KW0040R	1	Enquiry ↗
5.6	Fr Fairing Upper Cowl Mystic OrangeT08020KW0040J	1	Enquiry ↗
6	Grommet Tail CoverT13030KG0130N	1	Enquiry ↗
7	Plug Handle Bar LHT13160KW0010N	1	Enquiry ↗
8	Plug Handle Bar RHT13160KW0020N	1	Enquiry ↗
9	Digital Speedometer Main Assy (J1-A)T1501HKW0020N	1	Enquiry ↗
9.1	Digital Speedometer Assembly (J1-A) With Trip MeterT1501HKW0130N	1	Enquiry ↗
9.2	Speedometer Assembly Jawa Classic OBD IIT1501HKW0100N	1	Enquiry ↗
10	Washer Plain M6X18X1.6SF0401090	4	Enquiry ↗
11	Head Lamp Assembly - J1-AT1501DKW0010N	1	Enquiry ↗
11.1	Head Lamp Assembly With Black RimT1501DKW0010E	1	Enquiry ↗
12	Screw Rdskt M6X1X12Xa2-70SF0212026	2	Enquiry ↗
13	Horn Assembly - 70 DiaT1501BKW0010E	1	Enquiry ↗
13.1	Horn Assembly J3T1501BKW0010L	1	Enquiry ↗
14	Button Head Socket Screw M6X30TSF0214019	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

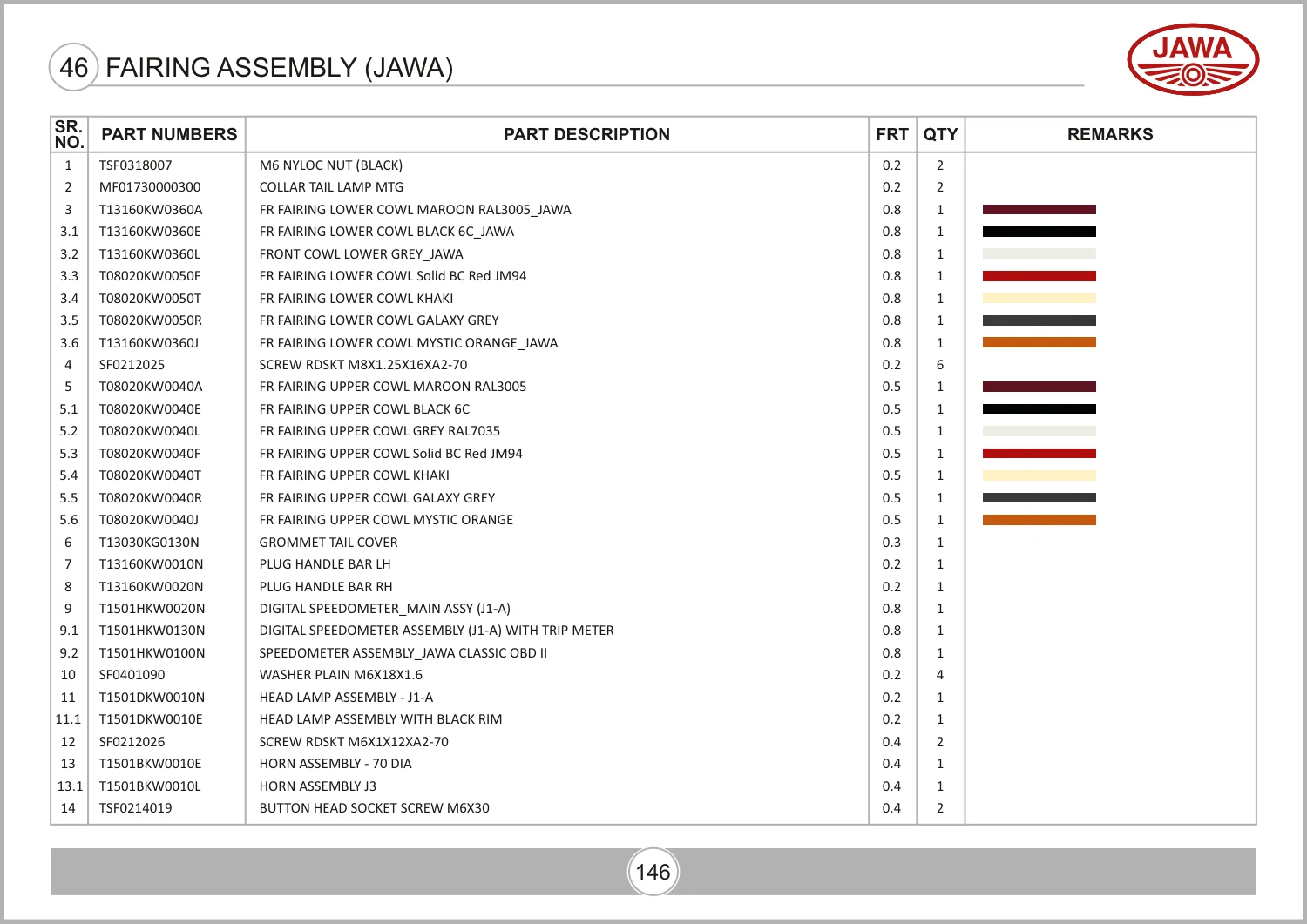

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 160, parts table page 161. View original parts table ↗
