Jawa & Jawa 42 Platform · ASSEMBLY 46 · REV 36
Fairing Assembly (Jawa)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 147Original parts list ↗
Parts in this drawing
8 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 15 | Turn Signal Indicator Front LHT1501GKW0010N | 1 | |
| 15.1 | Turn Signal Indicator Front LH J301T1501GKW0010E | 1 | |
| 16 | Turn Signal Indicator Front RHT1501GKW0020N | 1 | |
| 16.1 | Turn Signal Indicator Front RH J301T1501GKW0020E | 1 | |
| 17 | Damper Head Lamp StayT13160KW0090N | 2 | |
| 18 | Logo Horn Cover JawaT13200KW0050N | 1 | |
| 19 | Horn Assembly With Logo J1 AT1501BKW0030N | 1 | |
| 19.1 | Horn Assembly With Logo - J301T1501BKW0030L | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

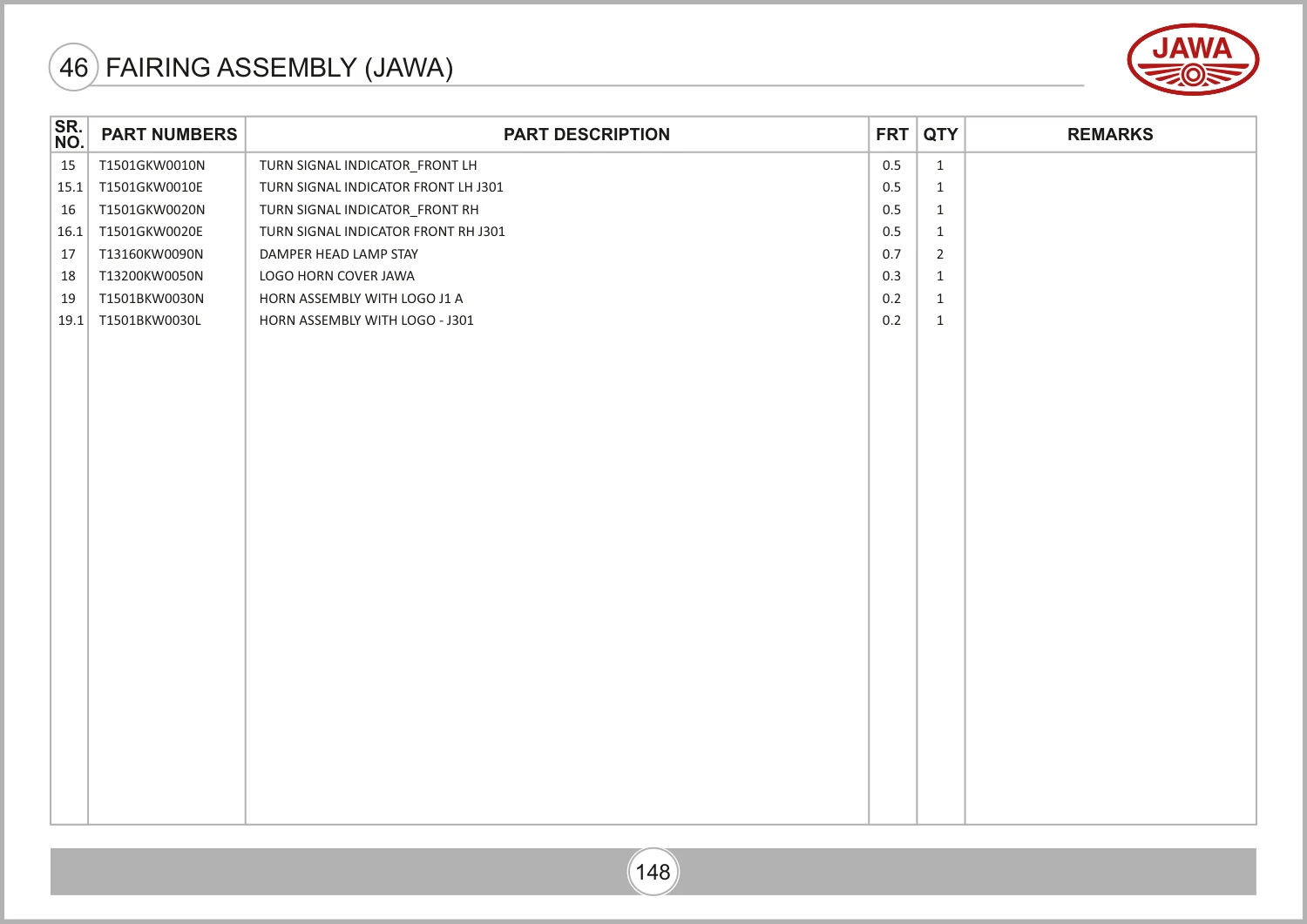

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 162, parts table page 163. View original parts table ↗
