Fairing Assembly (Jawa - Forty Two)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Fairing Assembly (Jawa - Forty Two) exploded assembly diagram, catalogue page 149

Jawa & Jawa 42 Platform · Rev 36 · p. 149Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
2	Damper Head Lamp Stay LowerT13160KW0130N	2	Enquiry ↗
3	Guide RingT08020KW0060N	4	Enquiry ↗
4	Stay Assembly LH Matt BlackT13160KW0040E	1	Enquiry ↗
5	Stay Assembly RH Matt BlackT13160KW0100E	1	Enquiry ↗
6	Washer Plain M6X18X1.6SF0401090	4	Enquiry ↗
7	Damper Head Lamp StayT13160KW0090N	2	Enquiry ↗
8	Collar Tail Lamp MtgMF01730000300	2	Enquiry ↗
9	Digital Speedometer J1-BT1501HKW0040N	1	Enquiry ↗
9.1	Speedometer Assembly - J1B With Trip MeterT1501HKW0110N FITTED TILL - MZDKW1C16P1C97111	1	Enquiry ↗
9.2	Speedoemter Assembly - Jawa 42 Dual DiscT1501HJ10010N	1	Enquiry ↗
10	Special Bolt M10X1.5T05000KW0140N	2	Enquiry ↗
10.1	Fork Top Bolt M10X1.5 UgT05000KW0260N	2	Enquiry ↗
11	Head Lamp Housing Non Cowl Galactic GreenT13160KW0060G	1	Enquiry ↗
11.1	Head Lamp Housing Non Cowl Halleys TealT13160KW0060U	1	Enquiry ↗
11.2	Head Lamp Housing Non Cowl Lumos LimeT13160KW0060D	1	Enquiry ↗
11.3	Head Lamp Housing Non Cowl Starlight BlueT13160KW0060C	1	Enquiry ↗
11.4	Head Lamp Housing Non Cowl Comet RedT13160KW0060P	1	Enquiry ↗
11.5	Head Lamp Housing Non Cowl Nebula BlueT13160KW0060V	1	Enquiry ↗
11.6	Head Lamp Housing Non Cowl Matt RedT13160KW0060X	1	Enquiry ↗
11.7	Head Lamp Housing Non Cowl Matt WhiteT13160KW0060B	1	Enquiry ↗
11.8	Head Lamp Housing Non Cowl Gloss BlackT13160KW0060Y	1	Enquiry ↗
11.9	Head Lamp Housing Non Cowl Rocky BeigeT13160KW0060M	1	Enquiry ↗
11.10	Head Lamp Housing Non Cowl All Star Black Jawa 42 Ug 2.2 & Jawa 42 Dual DiscT13160KW0420Y	1	Enquiry ↗
11.11	Head Lamp Housing Non Cowl Mystic Copper Jawa 42 Ug 2.2T13160KW0420X	1	Enquiry ↗
11.12	Head Lamp Housing Non Cowl Nebula Blue Jawa 42 Ug 2.2T13160KW0420C	1	Enquiry ↗
11.13	Head Lamp Housing Non Cowl Rocky Beige Jawa 42 Ug 2.2T13160KW0420M	1	Enquiry ↗
11.14	Head Lamp Housing Non Cowl Nebula Blue Jawa 42 OgT13000KW0570C	1	Enquiry ↗
11.15	Head Lamp Housing Non Cowl Red Matte Jawa 42 OgT13000KW0570A	1	Enquiry ↗
11.16	Head Lamp Housing Non Cowl Rockey Beige Jawa 42 OgT13000KW0570T	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

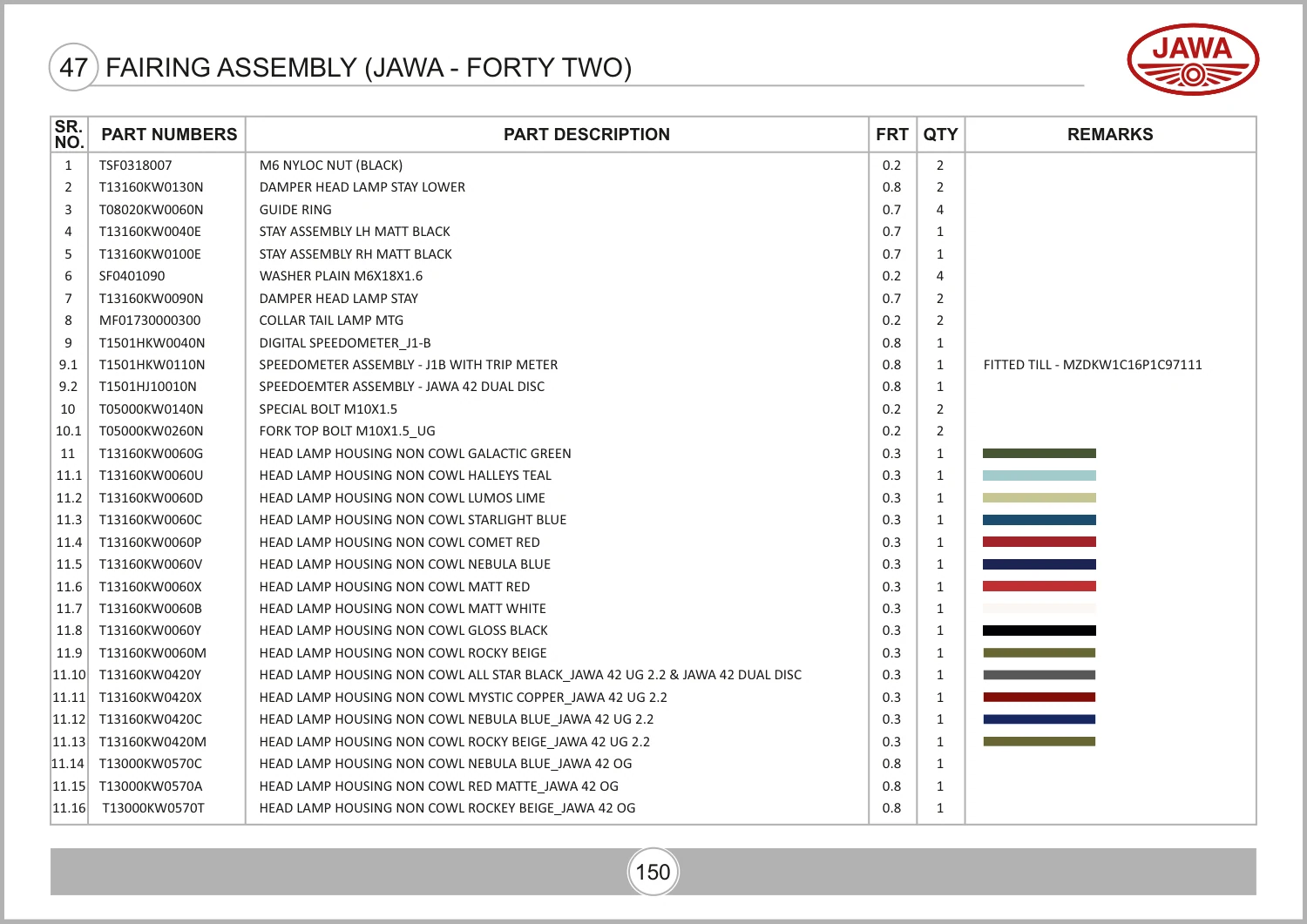

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 164, parts table page 165. View original parts table ↗
