Jawa & Jawa 42 Platform · ASSEMBLY 47 · REV 36

Fairing Assembly (Jawa - Forty Two)

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Fairing Assembly (Jawa - Forty Two) exploded assembly diagram, catalogue page 151

Jawa & Jawa 42 Platform · Rev 36 · p. 151Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
11.17	Head Lamp Housing Non Cowl Copper Matte Jawa 42 OgT13000KW0570K	1	Enquiry ↗
11.18	Head Lamp Housing Non Cowl All Star Black Jawa 42 OgT13000KW0570E	1	Enquiry ↗
11.19	Head Lamp Housing Jawa 42 Nebula Blue Matte Jawa 42 Og UgT13000KW0570V	1	Enquiry ↗
11.20	Head Lamp Housing Jawa 42 Red Matte Jawa 42 Og UgT13000KW0630A	1	Enquiry ↗
11.21	Head Lamp Housing Jawa 42 Ivory Jawa 42 Og UgT13000KW0570Y	1	Enquiry ↗
11.22	Head Lamp Housing Jawa 42 White Matte Jawa 42 Og UgT13000KW0630B	1	Enquiry ↗
11.23	Head Lamp Housing Jawa 42 All Star Black Jawa 42 Og UgT13000KW0630E	1	Enquiry ↗
12	Clip Nut 6Mm (Black)90305-GK8-0001	1	Enquiry ↗
13	Bracket Head Lamp Cover MountingT13160KW0160N	1	Enquiry ↗
14	Screw Special M6X1X12Xa2-70SF0200124	2	Enquiry ↗
15	Screw Rdskt M8X1.25X16Xa2-70SF0212025	3	Enquiry ↗
15	Screw Rdskt M8X1.25X16X8.8 Jawa 42 Ug 2.2SF0212042	3	Enquiry ↗
16	Head Lamp Assembly - Jawa Forty TwoT1501DKW0040N	1	Enquiry ↗
16.1	Head Lamp Assembly J1 B With Black Rim With KnobT1501DKW0130N	1	Enquiry ↗
16.2	Head Lamp Assembly With Black Rim Jawa 42 Ug 2.2 Without KnobT1501DKW0200E	1	Enquiry ↗
17	Button Head Socket Screw M6X30TSF0214019	2	Enquiry ↗
17.1	Screw Rdskt M6X1X28X8.8SF0212047	2	Enquiry ↗
18	Turn Signal Indicator Front LHT1501GKW0010N	1	Enquiry ↗
18.1	Turn Signal Indicator Front LH J301T1501GKW0010E	1	Enquiry ↗
18.2	Turn Signal Indicator Front LH Jawa 42 Ug 2.2T1501GKW0090N	1	Enquiry ↗
19	Turn Signal Indicator Front RHT1501GKW0020N	1	Enquiry ↗
19.1	Turn Signal Indicator Front RH J301T1501GKW0020E	1	Enquiry ↗
19.2	Turn Signal Indicator Front RH Jawa 42 Ug 2.2T1501GKW0100N	1	Enquiry ↗
20	Screw Rdskt M6X1X12Xa2-70SF0212023	1	Enquiry ↗
20.1	Screw Rdskt M6X1X12X8.8 Jawa 42 Ug 2.2SF0212037	1	Enquiry ↗
21	Rubber Washer M8T13160KW0200N	2	Enquiry ↗
22	Fork Bolt CapT07000KW0060N	2	Enquiry ↗
23	Digital Speedometer Y401T1501HY40010N FITTED FROM - MZDKW1C16P1C97112	1	Enquiry ↗
24	Grommet For M6T13180AE0030E	3	Enquiry ↗
25	Collar For M5T08020B10020N	3	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

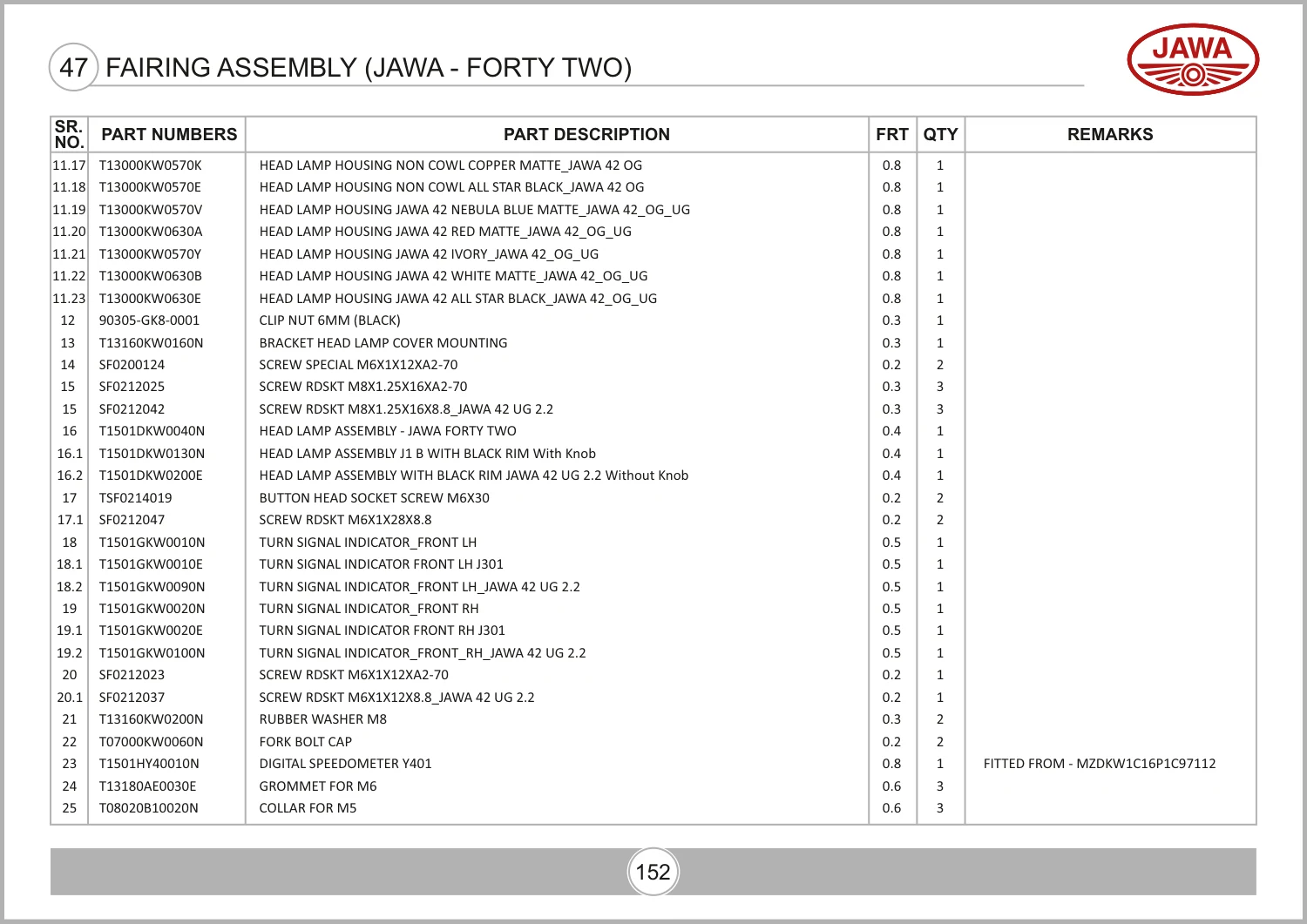

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 166, parts table page 167. View original parts table ↗
