Yezdi Roadster Mark II · ASSEMBLY 15 · REV 06
Evaporative Emission System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster Mark II · Rev 06 · p. 41Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Hose Tank To Rollover ValveT10000J20250N | 1 | |
| 2 | Clip Tube B895002-02080 | 5 | |
| 3 | Roll Over ValveT10000KW0040N | 1 | |
| 4 | Roll Over Valve GrommetT10000KW0170N | 1 | |
| 5 | Hose Rollover Valve To CanisterT10000J20260N | 1 | |
| 6 | Carbon Canister MojoT10000KE0021N | 1 | |
| 7 | Spring Band Clamp Dia11T10050KE0100N | 2 | |
| 8 | Hose Canister To Check Valve Bs-IVT10000KW0110N | 1 | |
| 9 | Valve Check Bs-IVT10000KE0031N | 1 | |
| 10 | Hose Check Valve To Throttle BodyT10000Y50120N | 1 | |
| 11 | Drain Tube CanisterT10000Y50130N | 1 | |
| 12 | Tool Kit BandT14010KE0010N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

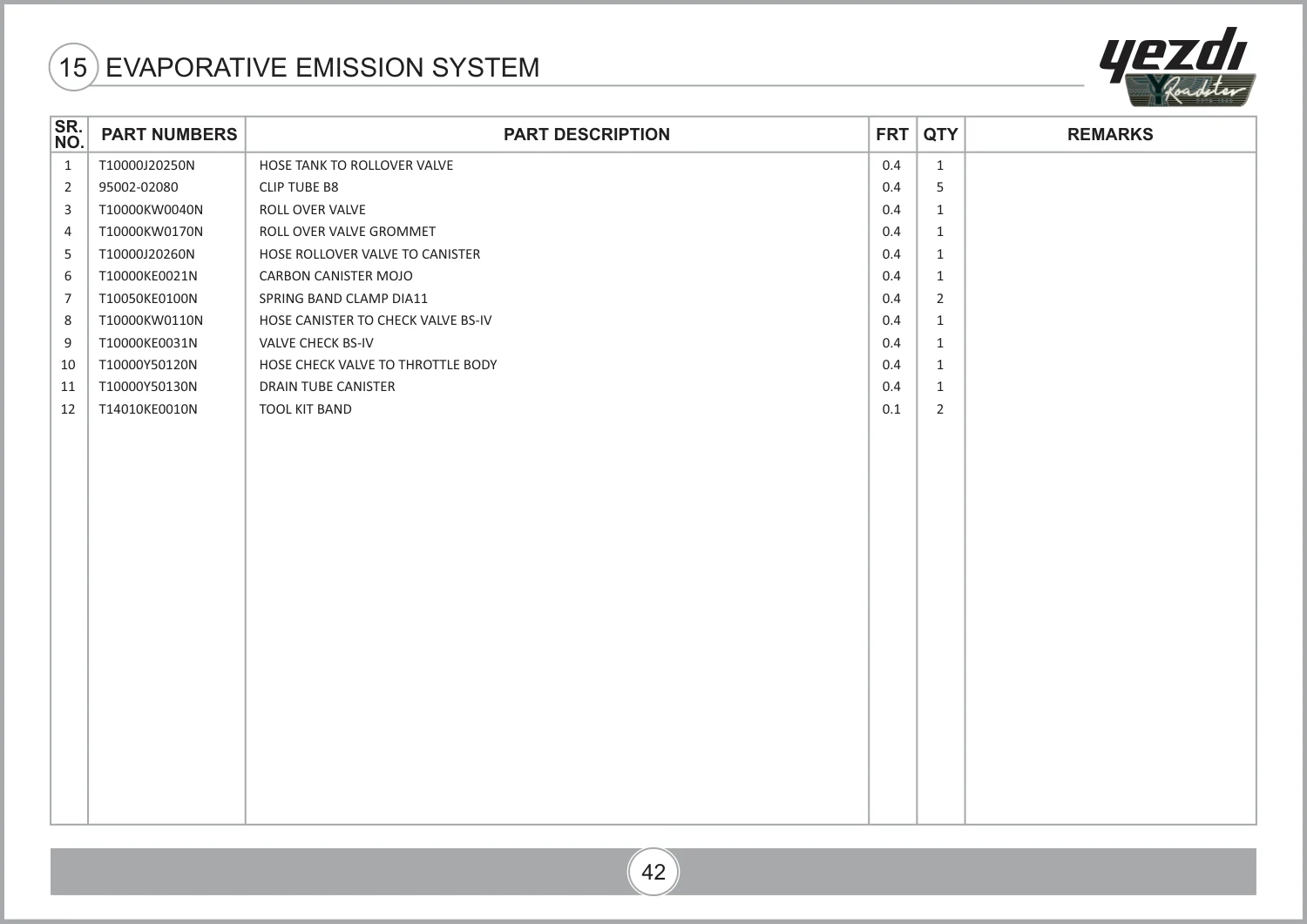

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 51, parts table page 52. View original parts table ↗
