Yezdi Roadster Mark II · ASSEMBLY 16 · REV 06

Air Filter Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Mark II · Rev 06 · p. 43Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Housing & Cover Assy.T0101AJ20020N	1	Enquiry ↗
2	Grommet Structure MountingT13160KG0130N	3	Enquiry ↗
3	Collar Fairing MountingT13160KG0210N	3	Enquiry ↗
4	Flange Bolt 61895801-06018-07	3	Enquiry ↗
5	O-Ring Entry BoxT0101FKW0010N	1	Enquiry ↗
6	Inlet Duct 1200T0101FKW0050N	1	Enquiry ↗
7	Truss Head Screw M5X12 (Black)TSF0212010	10	Enquiry ↗
8	Frame Element HolderT0101AKW0040N	1	Enquiry ↗
9	Screw Rdskt M5X0.8X8X8.8SF0212039	4	Enquiry ↗
10	Air Filter ElementT0101DKW0010N	1	Enquiry ↗
11	Spring Band - Drain TubeT0101AKW0070N	1	Enquiry ↗
12	Drain TubeT0101AKW0060N	1	Enquiry ↗
13	Plug Oil DrainT0101AKW0020N	1	Enquiry ↗
14	Wire Clip - Oil DrainT0101AKW0010N	2	Enquiry ↗
15	Oil Drain TubeT01010KW0030N	1	Enquiry ↗
16	Resonator BoxT01000KW0010N	1	Enquiry ↗
17	Resonator ClampT01010KW0020N	1	Enquiry ↗
18	Clamp Special M60X0.7X9SF0700025	4	Enquiry ↗
19	Connecting TubeT0101GKW0020N	1	Enquiry ↗
20	Dia 59 Manifold AssemblyT0101AJ20080N	1	Enquiry ↗
21	O Ring FrameT0101AKW0050N	1	Enquiry ↗
22	Spring Band Clamp Dia 14T10050KE0030N	1	Enquiry ↗
23	Tube Clip 17T0103AKM0040N	1	Enquiry ↗
24	Bush BreatherT02110KE0010N	1	Enquiry ↗
25	Breather Tube (Air Filter To Engine)T0207CVE0010N	1	Enquiry ↗
26	Cover Throttle Body LH (Black)T13120KW0010T	1	Enquiry ↗
26.1	Cover Throttle Body LH (Chrome)T13010KW0100N RED WOLF	1	Enquiry ↗
27	Cover Throttle Body RH (Black)T13120KW0020T	1	Enquiry ↗
27.1	Cover Throttle Body RH (Chrome)T13010KW0110N RED WOLF	1	Enquiry ↗
28	Holder Cover Throttle Body LH-J1 UpgradeT13010KW0310N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

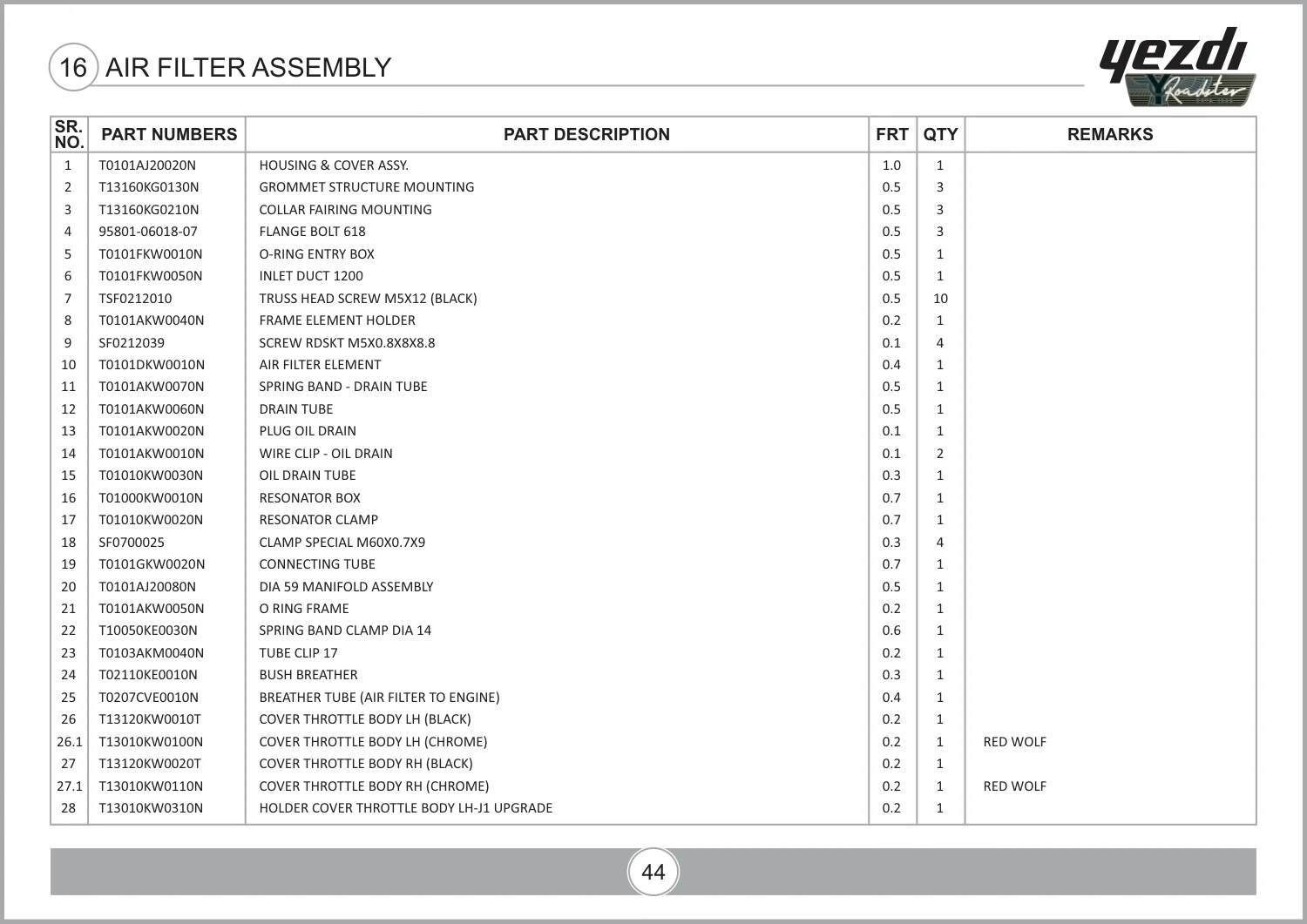

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 53, parts table page 54. View original parts table ↗
