Yezdi Roadster Mark II · ASSEMBLY 26 · REV 06
Rear Hugger Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster Mark II · Rev 06 · p. 71Original parts list ↗
Parts in this drawing
23 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rear Hugger Cover With Tail LampT13070J20410N | 1 | |
| 1.1 | Rear Hugger CoverT13070J20330N SHADOW BLACK | 1 | |
| 2 | Rear Hugger Stay Raven TextureT13070J20340E | 1 | |
| 3 | Rear Hugger Inner CoverT13070J20370N | 1 | |
| 4 | Koso Number Plate Mtg BracketT13070J20420N | 1 | |
| 5 | Hugger Stay Support BracketT13000J20350N | 1 | |
| 6 | Plate Tail Lamp Cover MountingT13070J20240N | 1 | |
| 7 | Cover Tail Lamp Ebony Matt BlackT13000J20200T | 1 | |
| 8 | Tail Lamp (Black)T1501EJ20040N | 1 | |
| 8.1 | Tail Lamp (Chrome)T1501EJ20060N RED WOLF | 1 | |
| 9 | FoamT13160KG0080N | 1 | |
| 10 | Number Plate Lamp (Black)T1501TKW0040N | 1 | |
| 10.1 | Number Plate Lamp (Chrome)T1501TB10010N RED WOLF | 1 | |
| 11 | Nut Flange 6Mm65538380 | 4 | |
| 12 | Screw Rdskt M6X1X12X8.8SF0212049 | 9 | |
| 13 | Nut Nyloc M5X0.8X6.8X6SF0302157 | 2 | |
| 14 | Button Head Socket Screw M6X16TSF0212011 | 6 | |
| 15 | Screw Rdskt M6X1X28X8.8SF0212047 | 2 | |
| 16 | Socket Head Screw M8X40TSF0212015 | 2 | |
| 17 | Screw Tppa Cr St4.2X1.4X9.5 C WhSF0216001 | 4 | |
| 18 | Harness ClampT13070J20400N | 4 | |
| 19 | Rubber Grommet Tail Lamp CoverT13070J20230N | 1 | |
| 20 | Washer Plain M8X14X2SF0401479 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

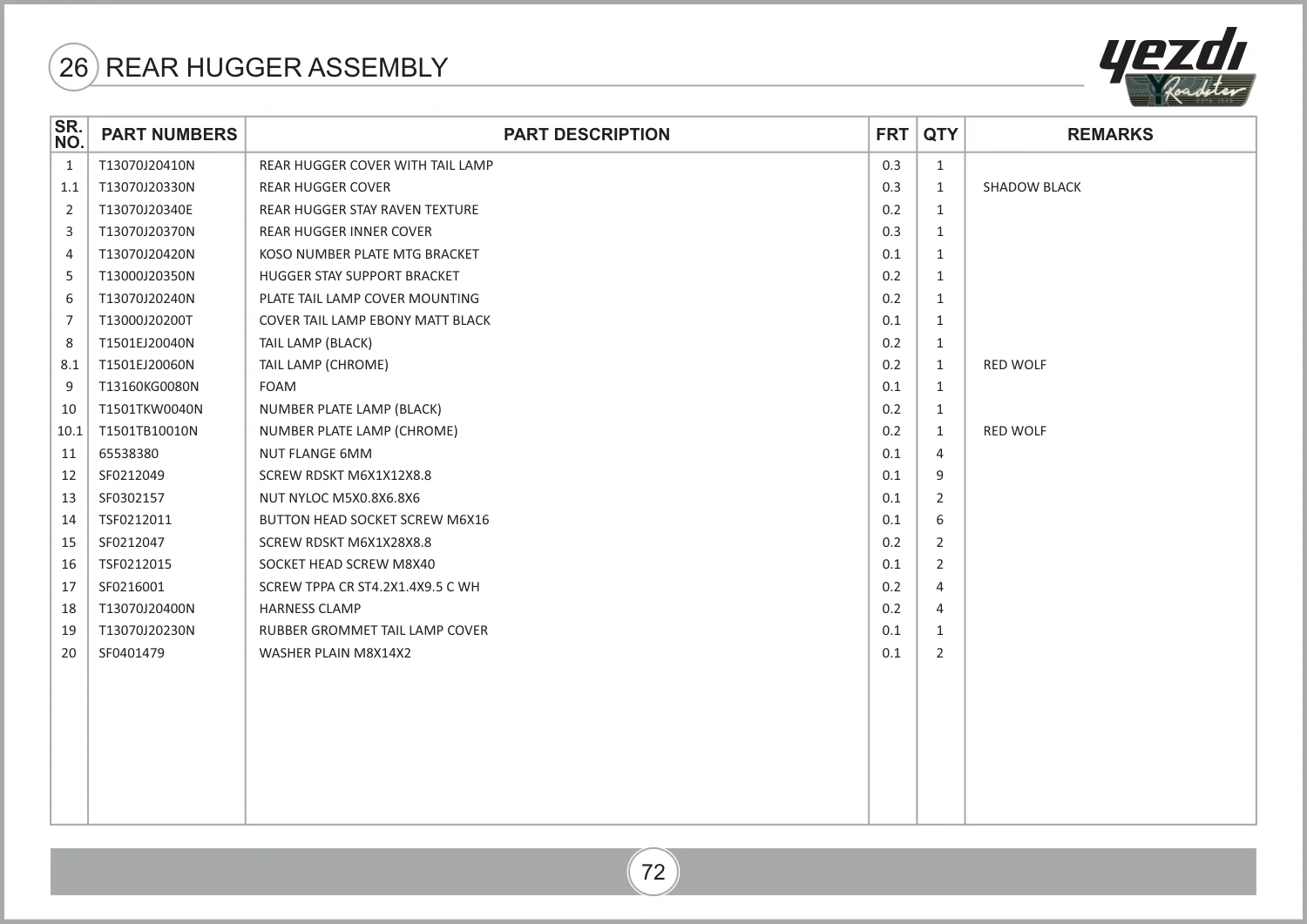

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 81, parts table page 82. View original parts table ↗
