Yezdi Roadster Mark II · ASSEMBLY 27 · REV 06

Rear Alloy Wheel Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Mark II · Rev 06 · p. 73Original parts list ↗

25 entries

Ref.	Part name / number	Assembly qty.	Action
1	Alloy Wheel, Rear, Mt 4.25X17T1201AJ20010N	1	Enquiry ↗
2	Wheel Bearing 6203 (17X40X12)T0601DKW0021N	2	Enquiry ↗
3	Spacer Assy Inner, Rear WheelT1201CKW0050N	1	Enquiry ↗
4	Circlip Int - Lug 40X1.75XphSF0602007	1	Enquiry ↗
5	Front Dust Seal (A22X40X7) Hi-Tech AraiT0601EKW0021N	1	Enquiry ↗
6	Rear Disc (RH, D=240)T2501GKW0010N	1	Enquiry ↗
7	Toner Wheel FrontT0602LKE0010N	1	Enquiry ↗
8	Screw Special M8X1.25X28Xa2-70SF0200097	5	Enquiry ↗
9	Kit Drive Chain SprocketT14000J20370N	1	Enquiry ↗
10	Chain Drive-108 LinksT14080Y50030N	1	Enquiry ↗
11	Plaque Wheel Rim GreyT13200J20210N	2	Enquiry ↗
12	Spacer Rear Wheel (RH Side) Rear DiscT1201CKW0060N	1	Enquiry ↗
13	Self Lock Nut M16TSF0318003	1	Enquiry ↗
14	Cush DriveMH01270000500	4	Enquiry ↗
15	Spacer Cush Drive Housing RHT1201CKW0080N	1	Enquiry ↗
16	Socket Head Screw M8X28SP0308023	5	Enquiry ↗
17	Cush Drive Housing, MachinedT12010KW0040E	1	Enquiry ↗
18	Rear LH Dust Seal A31X47X7 Hi-Tech AraiT1201EKW0021N	1	Enquiry ↗
19	Cush Drive Housing Bearing 6005(25X47X12)T1201DKW0031N	1	Enquiry ↗
20	Spacer Rear Wheel (LH Side)T1201CKW0020N	1	Enquiry ↗
21	Chain Sprocket Rear 47TT1201MY50020N	1	Enquiry ↗
22	Self-Taping Nut For M8MH01680001700	5	Enquiry ↗
23	Spacer Cush Drive Housing LHT1201CKW0070N	1	Enquiry ↗
24	Bolt Special M16X1.5X305X10.9SF0100083	1	Enquiry ↗
24.1	Bolt Special M16X1.5X305X10.9SF0100195 SHADOW BLACK	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

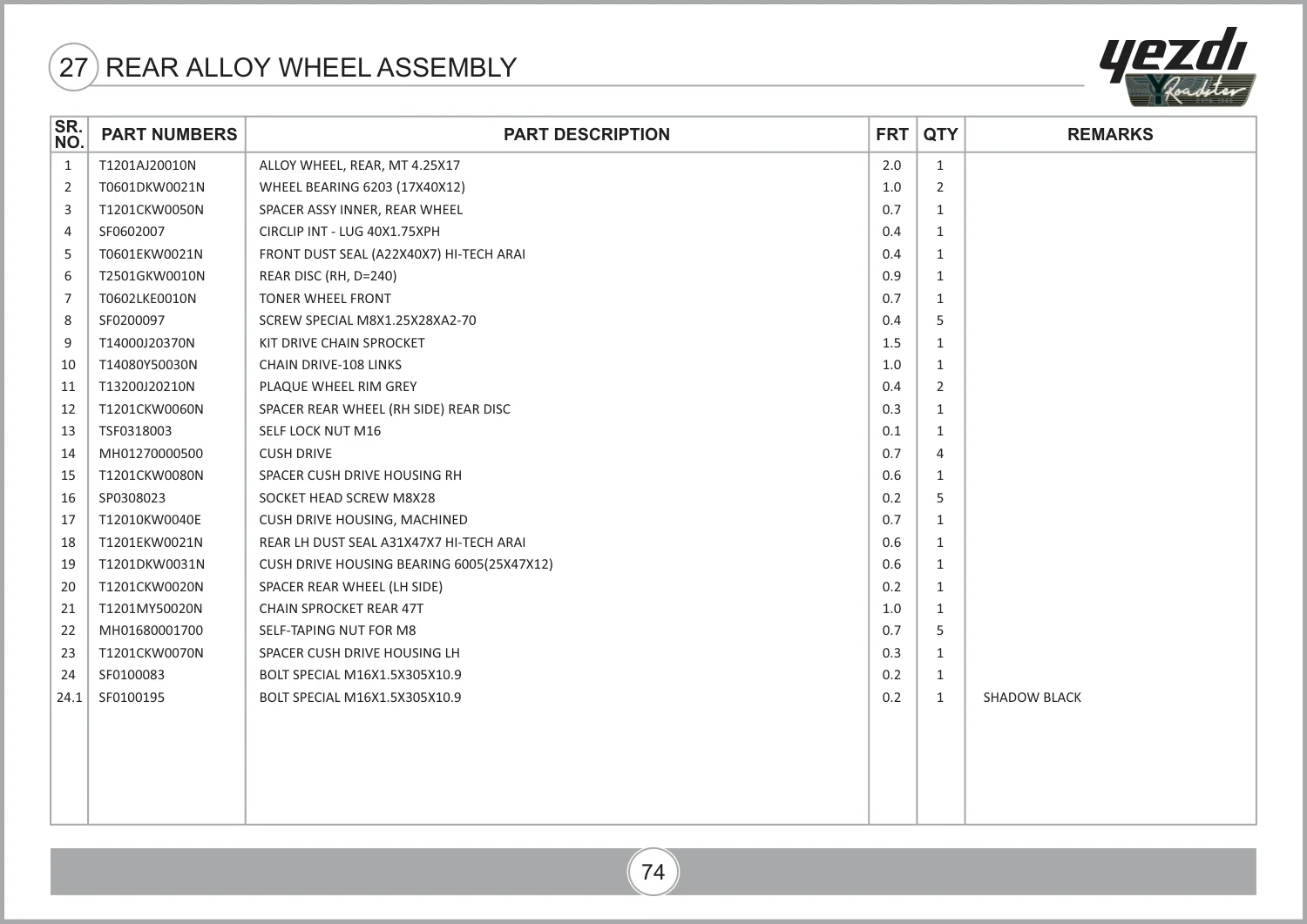

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 83, parts table page 84. View original parts table ↗
