Yezdi Roadster Mark II · ASSEMBLY 35 · REV 06

Frame Assembly / Frame & Mountings / Side Stand

Select a diagram reference or a row below to enquire about the exact part.

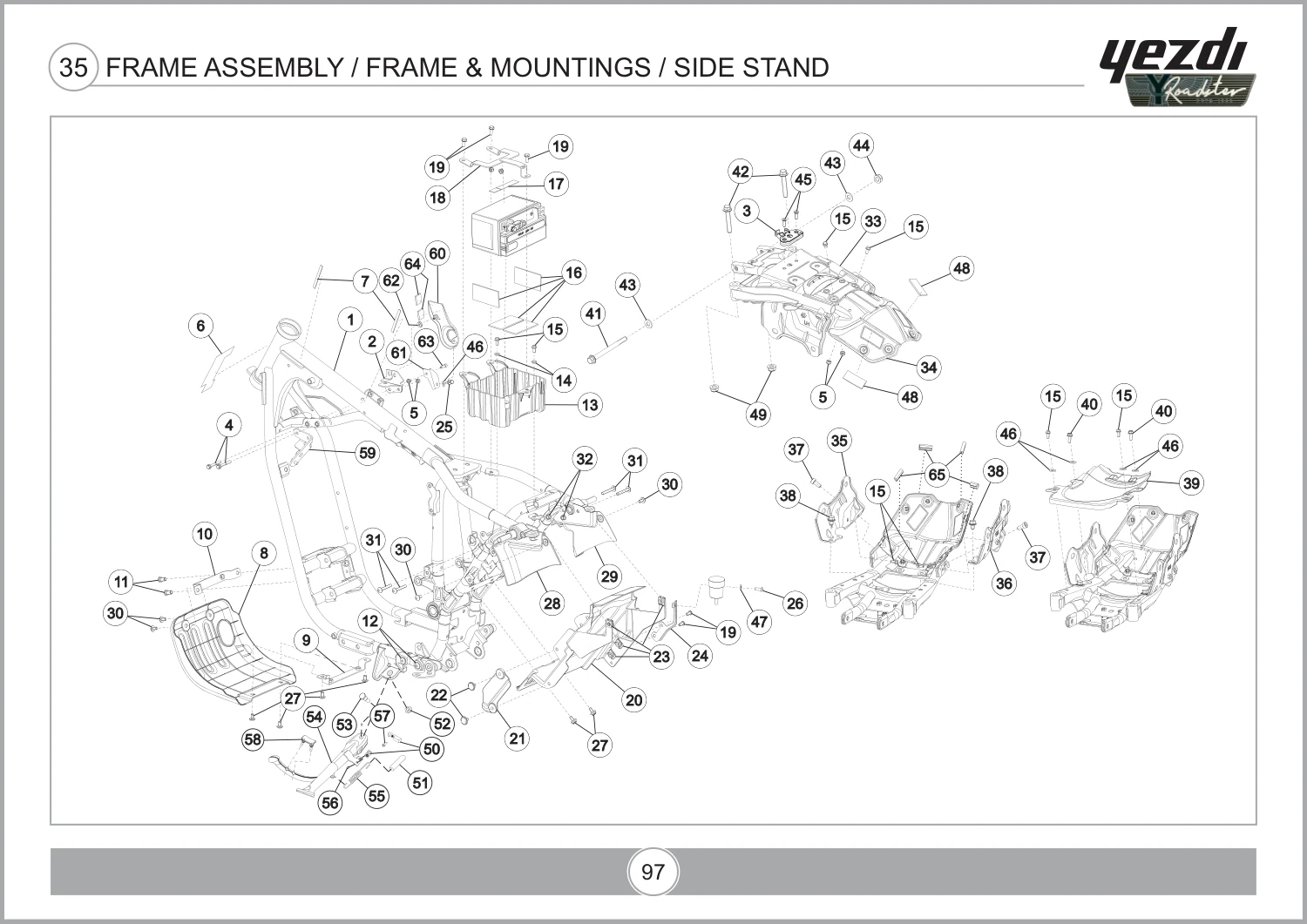

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Mark II · Rev 06 · p. 97Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
31	Screw Rdskt M6X1X40Xa2-70SF0212027	4	Enquiry ↗
32	Nut Flange 6 Mm65538380	4	Enquiry ↗
33	Sub Frame AssemblyT08010J20300N	1	Enquiry ↗
34	Fender Reinforcement BracketT1307AJ20260N	1	Enquiry ↗
35	Fender Mtg Bracket LHT08000J20470N	1	Enquiry ↗
36	Fender Mtg Bracket RHT08000J20480N	1	Enquiry ↗
37	Socket Head Screw M8X18 (Black)SP0224002	2	Enquiry ↗
38	Screw Hex Fl M8X1.25X12X8.8SF0202345	2	Enquiry ↗
39	Rear Fender Rear EnclosureT13050J20010N	1	Enquiry ↗
40	Flange Bolt M6*14TSF0102282	2	Enquiry ↗
41	Bolt Hex Fl M10X1.25X120X10.9SF0102620	1	Enquiry ↗
42	Bolt Hex Fl M10X1 5X65X8 8SF0102338	2	Enquiry ↗
43	Washer M10 (10X22X2.0)TSF0401130	2	Enquiry ↗
44	Flange U Nut M10X1.5TSF0318009	1	Enquiry ↗
45	Screw Ftcs Cr M6X1X20X6.6SF0211010	2	Enquiry ↗
46	Washer Plain G6.3X15.8X1.65SF0401129	5	Enquiry ↗
47	Washer M6 (6.4X12X1.6)TSF0401132	1	Enquiry ↗
48	Tape Rear FenderT13070B10120N	2	Enquiry ↗
49	Nut Hx Nyl Fl M10X1.5X13.5X10SF0315019	2	Enquiry ↗
50	Side Stand Switch AssemblyT1501MKW0050N	1	Enquiry ↗
51	Rubber Sleeve , Return SpringT20000KW0140N	1	Enquiry ↗
52	Nut Nyloc M10X1.25X11.50X6SF0302158	1	Enquiry ↗
53	Step Bolt Side StandT2302BKW0020N	1	Enquiry ↗
54	Side StandT2301AJ20010E	1	Enquiry ↗
55	Spring Side StandT2302BKW0010N	1	Enquiry ↗
56	Screw Phcc Lp M4X0.7X108.8SF0225044	1	Enquiry ↗
57	Screw Pan 4X1093500-04010-OH	1	Enquiry ↗
58	Side Stand Rubber StopperT14000KW0570N	1	Enquiry ↗
59	Horn Mounting BracketT08000J20500N	1	Enquiry ↗
60	Ignition Switch CoverT13000J10040N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

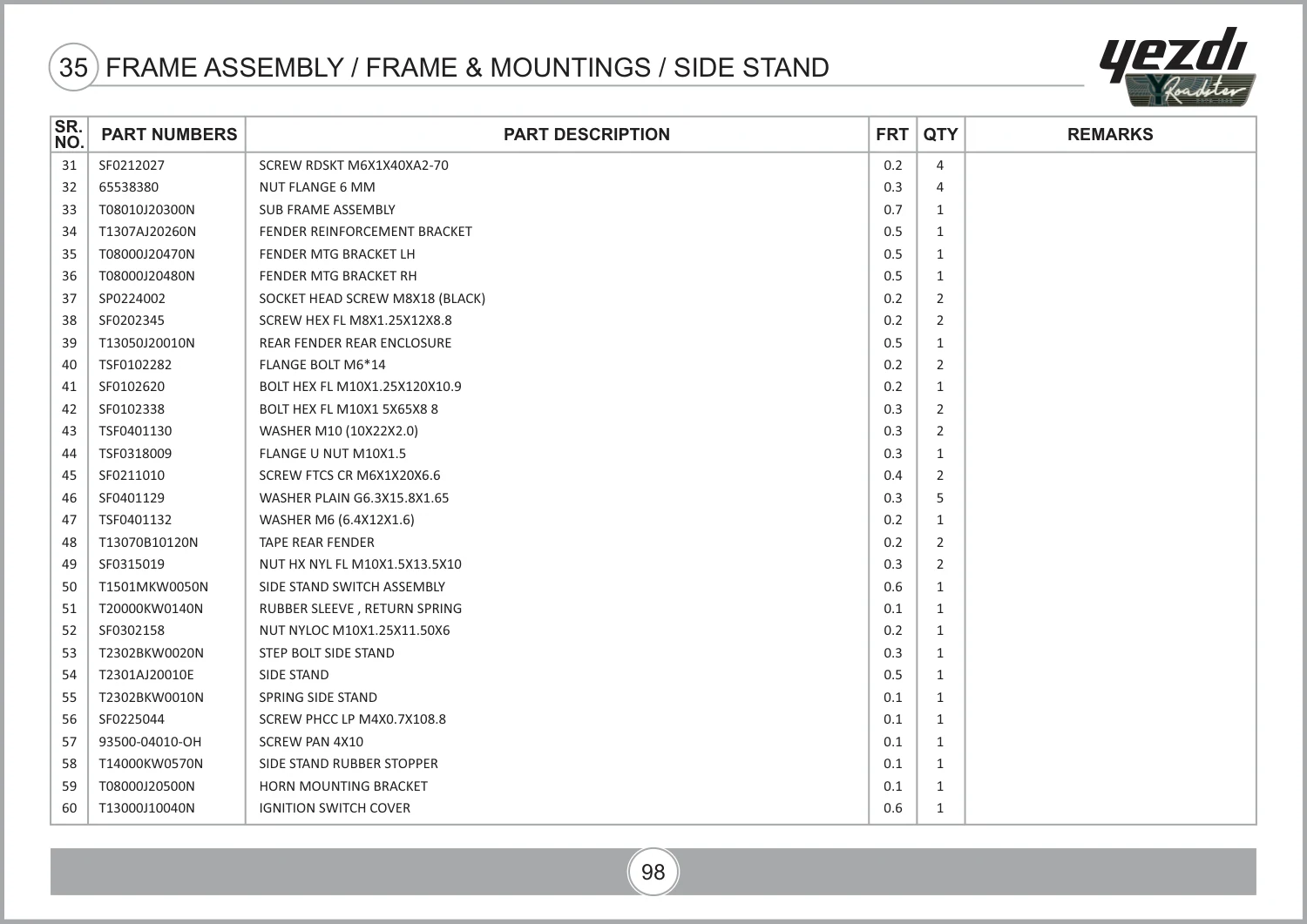

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 107, parts table page 108. View original parts table ↗
