Yezdi Roadster Mark II · ASSEMBLY 35 · REV 06
Frame Assembly / Frame & Mountings / Side Stand
Select a diagram reference or a row below to enquire about the exact part.

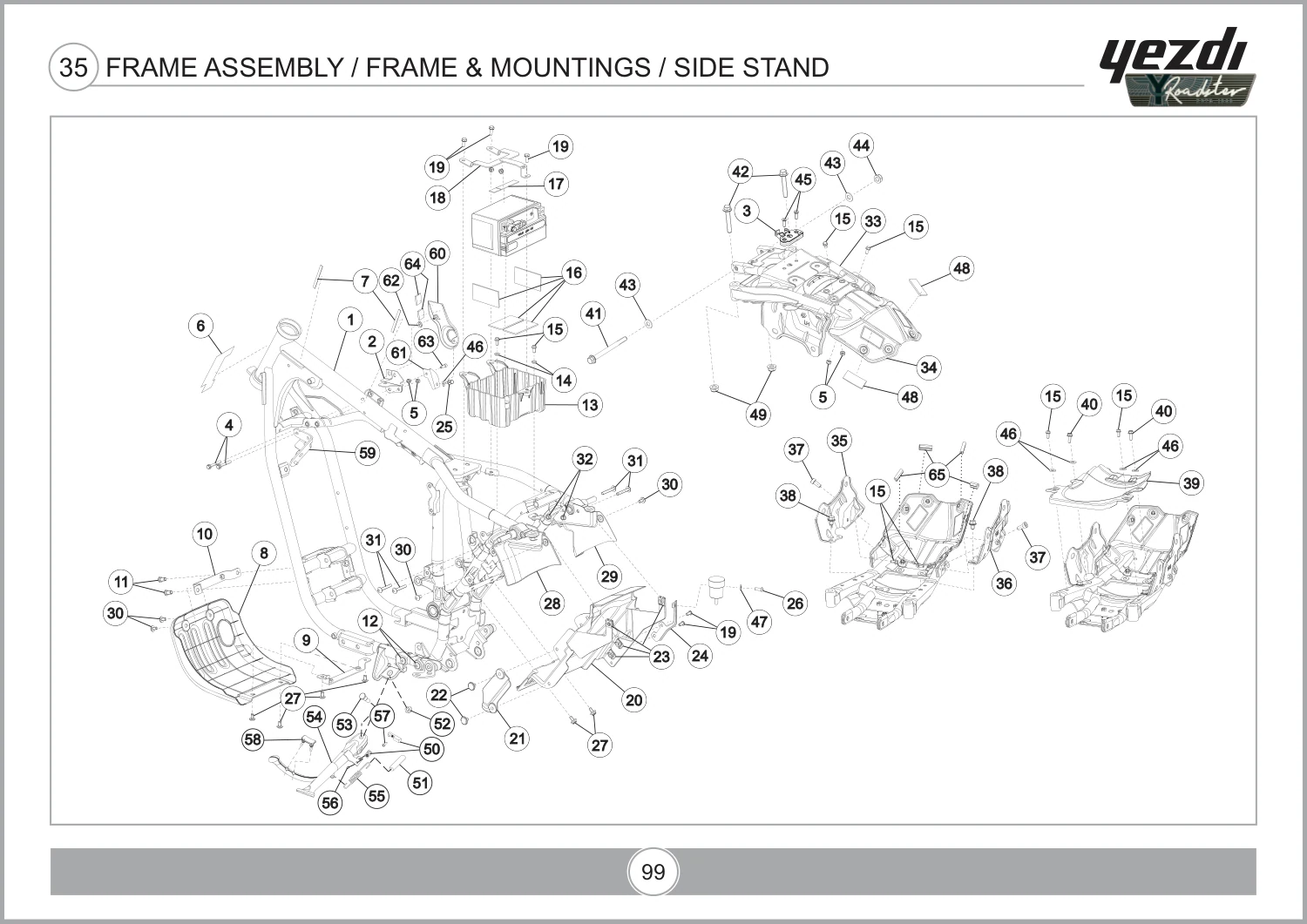

CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster Mark II · Rev 06 · p. 99Original parts list ↗
Parts in this drawing
5 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 61 | Radiator Neck Mtg Loose BrktT0401AJ10020N | 1 | |
| 62 | Grommet SpecialT13160J10110N | 1 | |
| 63 | Hex Soc Cap Head Screw M5*16*0.8SF0105067 | 1 | |
| 64 | FoamT13160KG0080N | 2 | |
| 65 | Beading FrameT08000B10340N | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

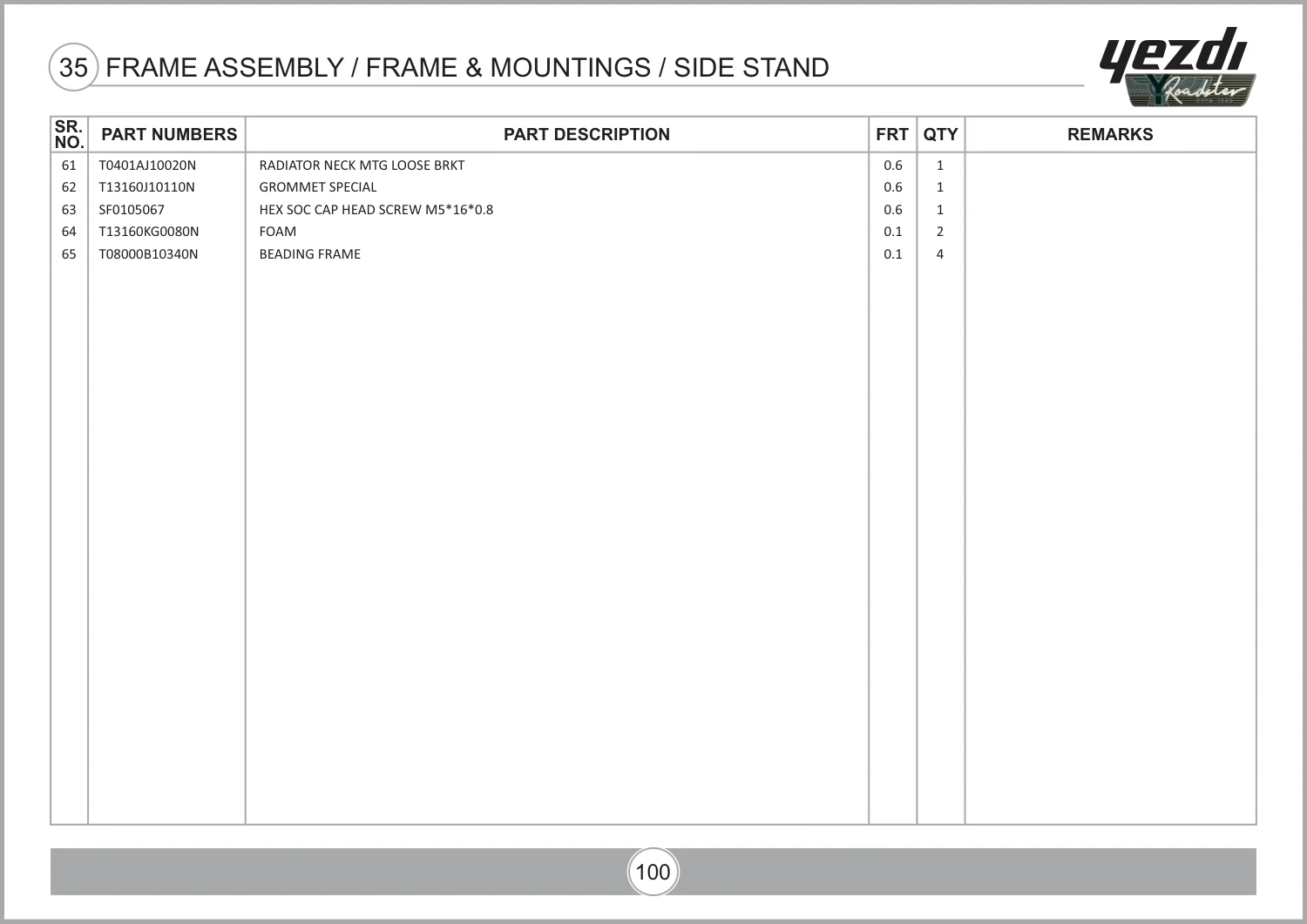

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 109, parts table page 110. View original parts table ↗
