Yezdi Roadster Mark II · ASSEMBLY 36 · REV 06

Engine Mounting System

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Mark II · Rev 06 · p. 101Original parts list ↗

26 entries

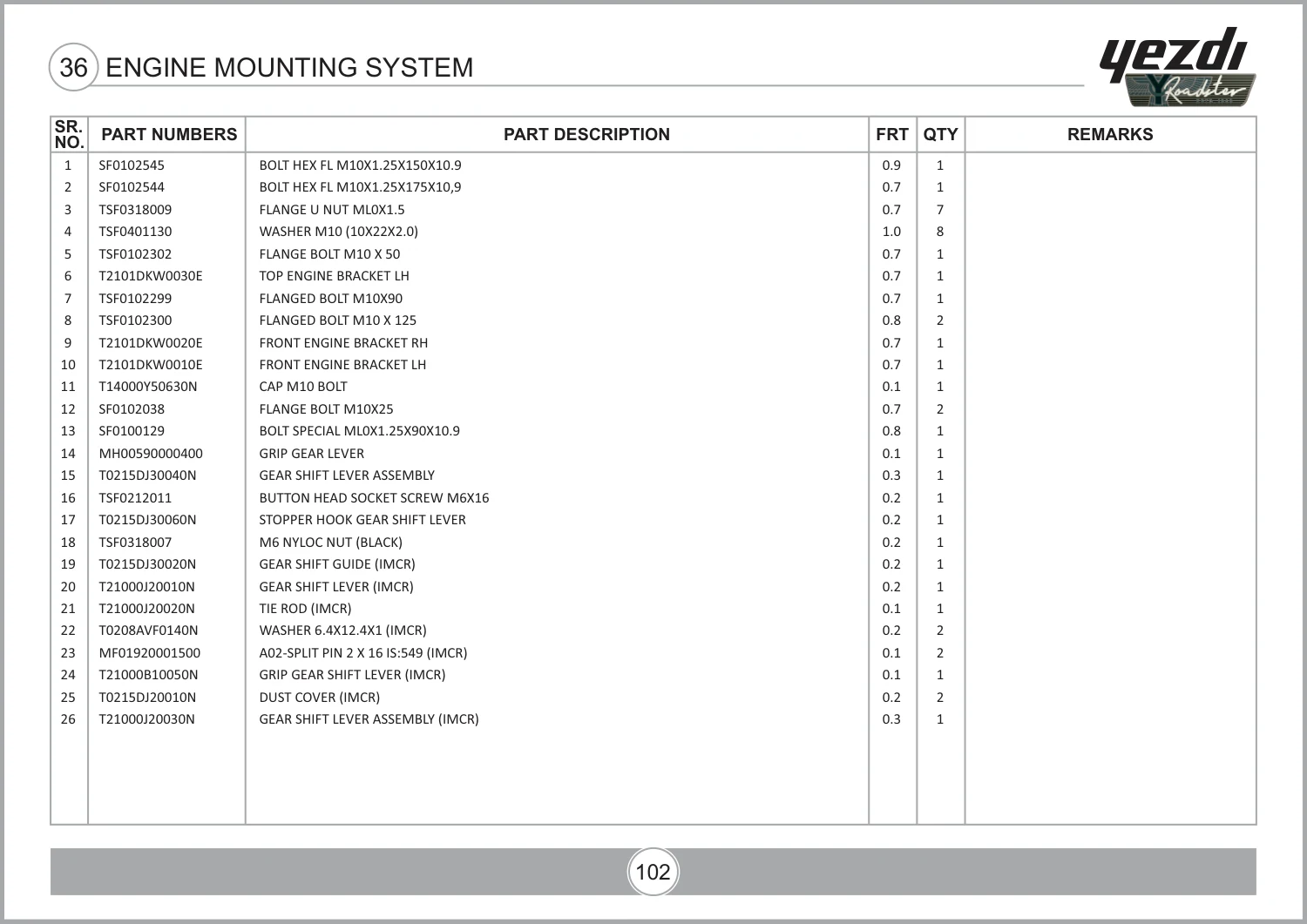

Ref.	Part name / number	Assembly qty.	Action
1	Bolt Hex Fl M10X1.25X150X10.9SF0102545	1	Enquiry ↗
2	Bolt Hex Fl M10X1.25X175X10,9SF0102544	1	Enquiry ↗
3	Flange U Nut Ml0X1.5TSF0318009	7	Enquiry ↗
4	Washer M10 (10X22X2.0)TSF0401130	8	Enquiry ↗
5	Flange Bolt M10 X 50TSF0102302	1	Enquiry ↗
6	Top Engine Bracket LHT2101DKW0030E	1	Enquiry ↗
7	Flanged Bolt M10X90TSF0102299	1	Enquiry ↗
8	Flanged Bolt M10 X 125TSF0102300	2	Enquiry ↗
9	Front Engine Bracket RHT2101DKW0020E	1	Enquiry ↗
10	Front Engine Bracket LHT2101DKW0010E	1	Enquiry ↗
11	Cap M10 BoltT14000Y50630N	1	Enquiry ↗
12	Flange Bolt M10X25SF0102038	2	Enquiry ↗
13	Bolt Special Ml0X1.25X90X10.9SF0100129	1	Enquiry ↗
14	Grip Gear LeverMH00590000400	1	Enquiry ↗
15	Gear Shift Lever AssemblyT0215DJ30040N	1	Enquiry ↗
16	Button Head Socket Screw M6X16TSF0212011	1	Enquiry ↗
17	Stopper Hook Gear Shift LeverT0215DJ30060N	1	Enquiry ↗
18	M6 Nyloc Nut (Black)TSF0318007	1	Enquiry ↗
19	Gear Shift Guide (Imcr)T0215DJ30020N	1	Enquiry ↗
20	Gear Shift Lever (Imcr)T21000J20010N	1	Enquiry ↗
21	Tie Rod (Imcr)T21000J20020N	1	Enquiry ↗
22	Washer 6.4X12.4X1 (Imcr)T0208AVF0140N	2	Enquiry ↗
23	A02-Split Pin 2 X 16 Is:549 (Imcr)MF01920001500	2	Enquiry ↗
24	Grip Gear Shift Lever (Imcr)T21000B10050N	1	Enquiry ↗
25	Dust Cover (Imcr)T0215DJ20010N	2	Enquiry ↗
26	Gear Shift Lever Assembly (Imcr)T21000J20030N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - YEZDI ROADSTER MARK-II_REV-06.pdf · PDF diagram page 111, parts table page 112. View original parts table ↗
