Transmission System - [Fitted From - Mzdj21C16R1C26375]

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Transmission System - [Fitted From - Mzdj21C16R1C26375] exploded assembly diagram, catalogue page 39

Yezdi Roadster · Rev 22 · p. 39Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Washer Ø20.2Ø300.5 (Vave)T0215DVG0470N	1	Enquiry ↗
2	Shaft, Input T/M (NVH Final)T0215DVG0210N	1	Enquiry ↗
3	Gear, 5Th Drive (NVH Final)T0215DVG0240N	1	Enquiry ↗
4	Spline Washer Ø20.3Xø26X1.6 (NVH Final)T0215DVG0280N	1	Enquiry ↗
5	Circlip - 20X1.2 (Vave)T0215DVG0480N	2	Enquiry ↗
6	Gear, 3Rd & 4Th Drive (Integral) (Intermediate) (NVH Final) (Vave)T0215DVG0400N	1	Enquiry ↗
7	Spline Bush - 6Th Drive (NVH Final)T0215DVG0270N	1	Enquiry ↗
8	Gear, 6Th Drive (NVH Final)T0215DVG0250N	1	Enquiry ↗
9	Gear, 2Nd Drive (NVH Final) (Vave)T0215DVG0390N	1	Enquiry ↗
10	Washer Ø15.2Xø25X1 (Vave)T0215DVG0460N	1	Enquiry ↗
11	Sprocket, DriveT0215DUF0080N	1	Enquiry ↗
12	Lock Plate Drive SprocketT0215DUF0090N	1	Enquiry ↗
13	Flange Bolt M6*10TSF0102281	4	Enquiry ↗
14	Bearing Ball InputT18050UF0130N	1	Enquiry ↗
15	Oil Seal, Output ShaftT18020UF0080N	1	Enquiry ↗
16	Internal Circlip (Ø35*1.75)TSF0602039	1	Enquiry ↗
17	Bearing Input Shaft (6204N.C3) (Ø20Ø4714) (Vave)T0215DVG0560N	1	Enquiry ↗
18	Lock Plate Input BearingT0202CUF0510N	1	Enquiry ↗
19	Breather Hole Cover PlateT0202CUF2430N	1	Enquiry ↗
20	Shaft Output T MT0215DVG0350N	1	Enquiry ↗
21	Bush, 2Nd Gear (Vave)T0215DVG0500N	3	Enquiry ↗
22	Gear 2Nd Driven (NVH Final) (Vave)T0215DVG0420N	1	Enquiry ↗
23	Gear 6Th Driven (NVH Final)T0215DVG0200N	1	Enquiry ↗
24	Gear, 4Th Driven (NVH Final) (Vave)T0215DVG0440N	1	Enquiry ↗
25	Gear 3Rd, Driven (NVH Final) (Vave)T0215DVG0430N	1	Enquiry ↗
26	Washer Ø22.2Ø280.5 (Vave)T0215DVG0520N	1	Enquiry ↗
27	Circlip 20.5X1.2 (Vave)T0215DVG0530N	1	Enquiry ↗
28	Gear, 5Th Driven (NVH Final)T0215DVG0190N	1	Enquiry ↗
29	Bush, 1St Gear (Vave)T0215DVG0490N	1	Enquiry ↗
30	Gear, 1St Driven (NVH Final)T0215DVG0150N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

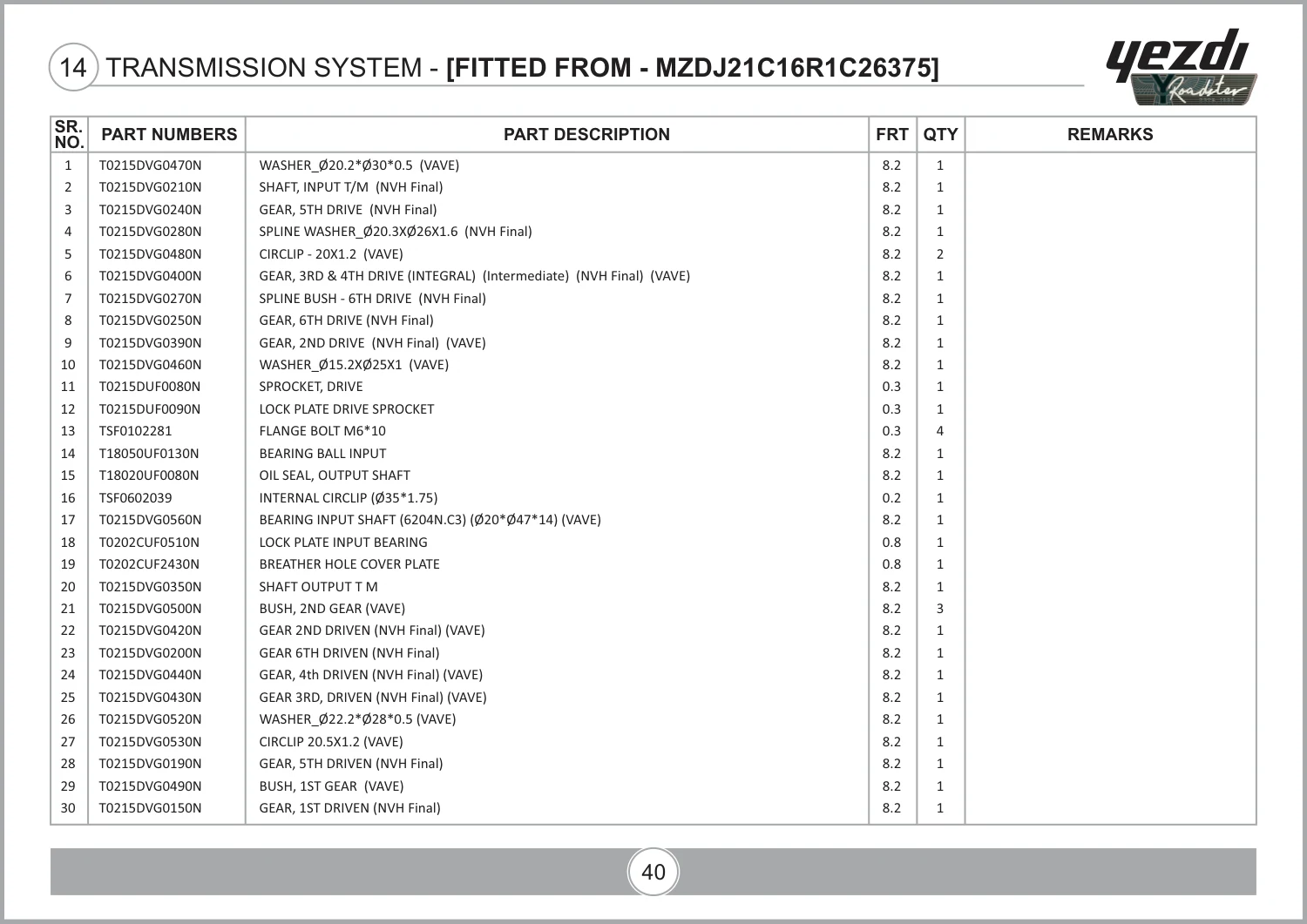

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 51, parts table page 52. View original parts table ↗
