Yezdi • CATALOGUE REV 22
Yezdi Roadster spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 74 diagram sheets and 1,451 parts entries, including repeated parts used in different assemblies.
Assembly 1

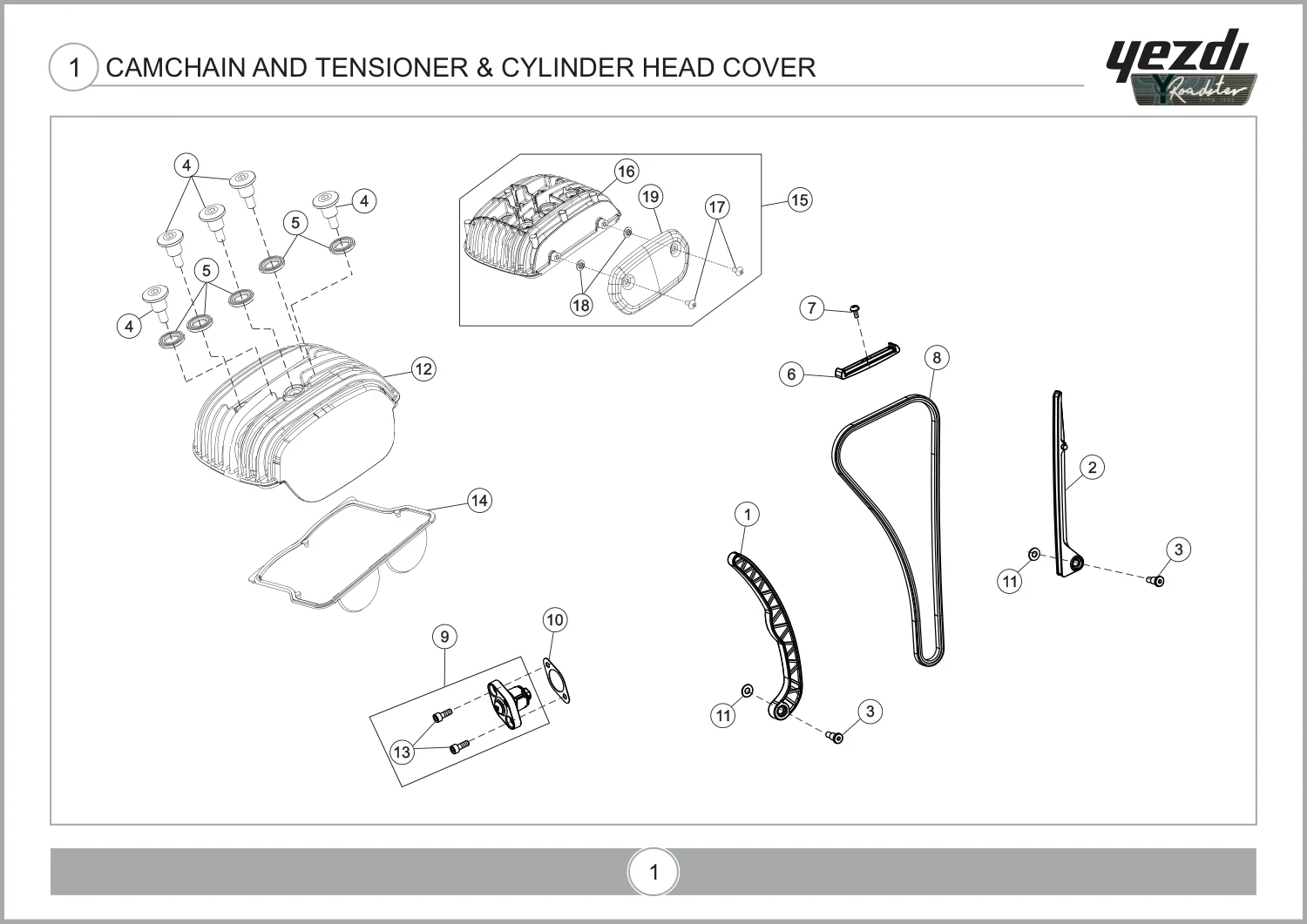

Camchain And Tensioner & Cylinder Head Cover
Page 1 · 26 parts
Assembly 2
Crankcase LH
Page 3 · 30 parts
Assembly 2
Crankcase LH
Page 5 · 8 parts
Assembly 3
Crankcase RH
Page 7 · 26 parts
Assembly 4

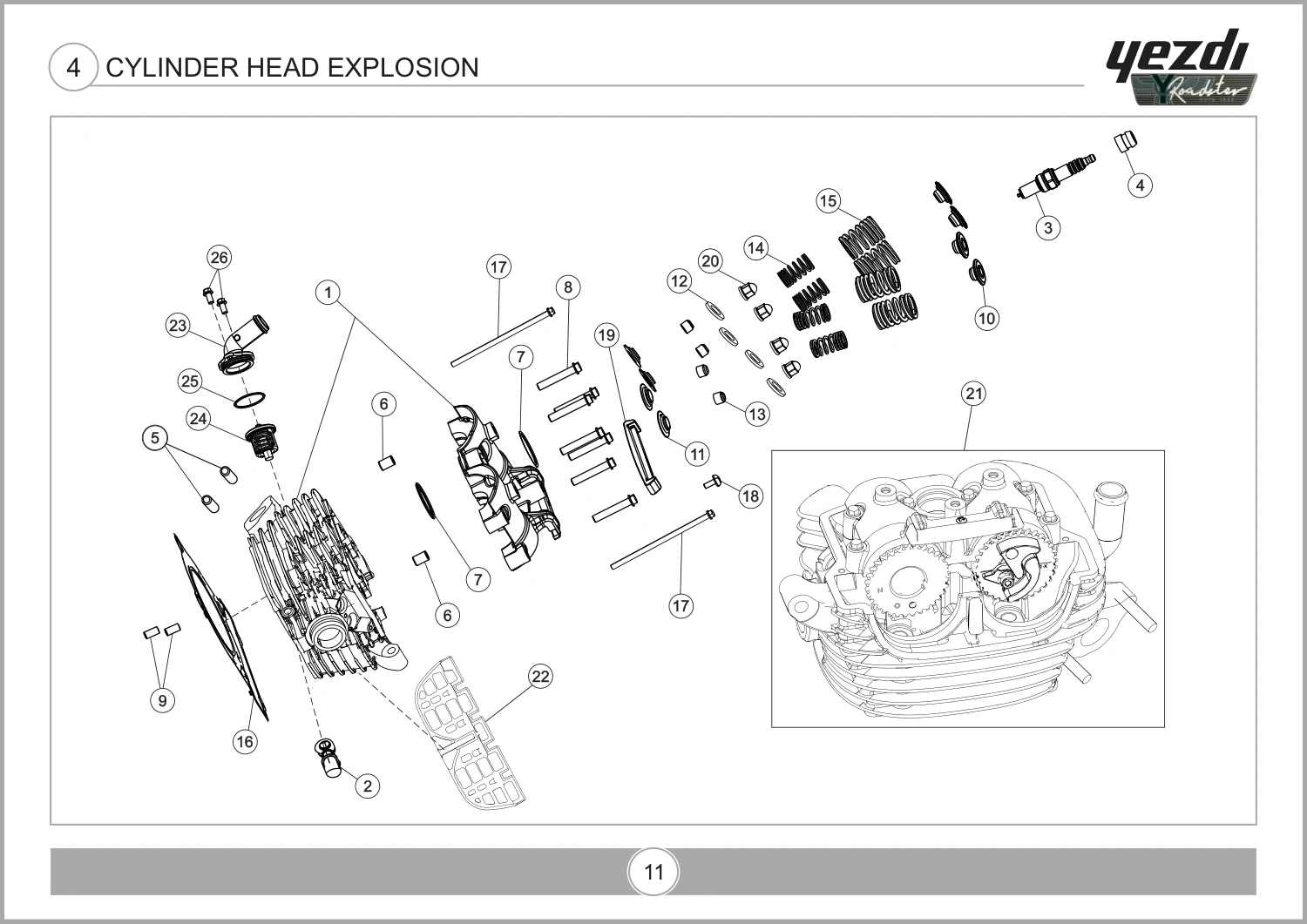

Cylinder Head Explosion
Page 9 · 30 parts
Assembly 4
Cylinder Head Explosion
Page 11 · 2 parts

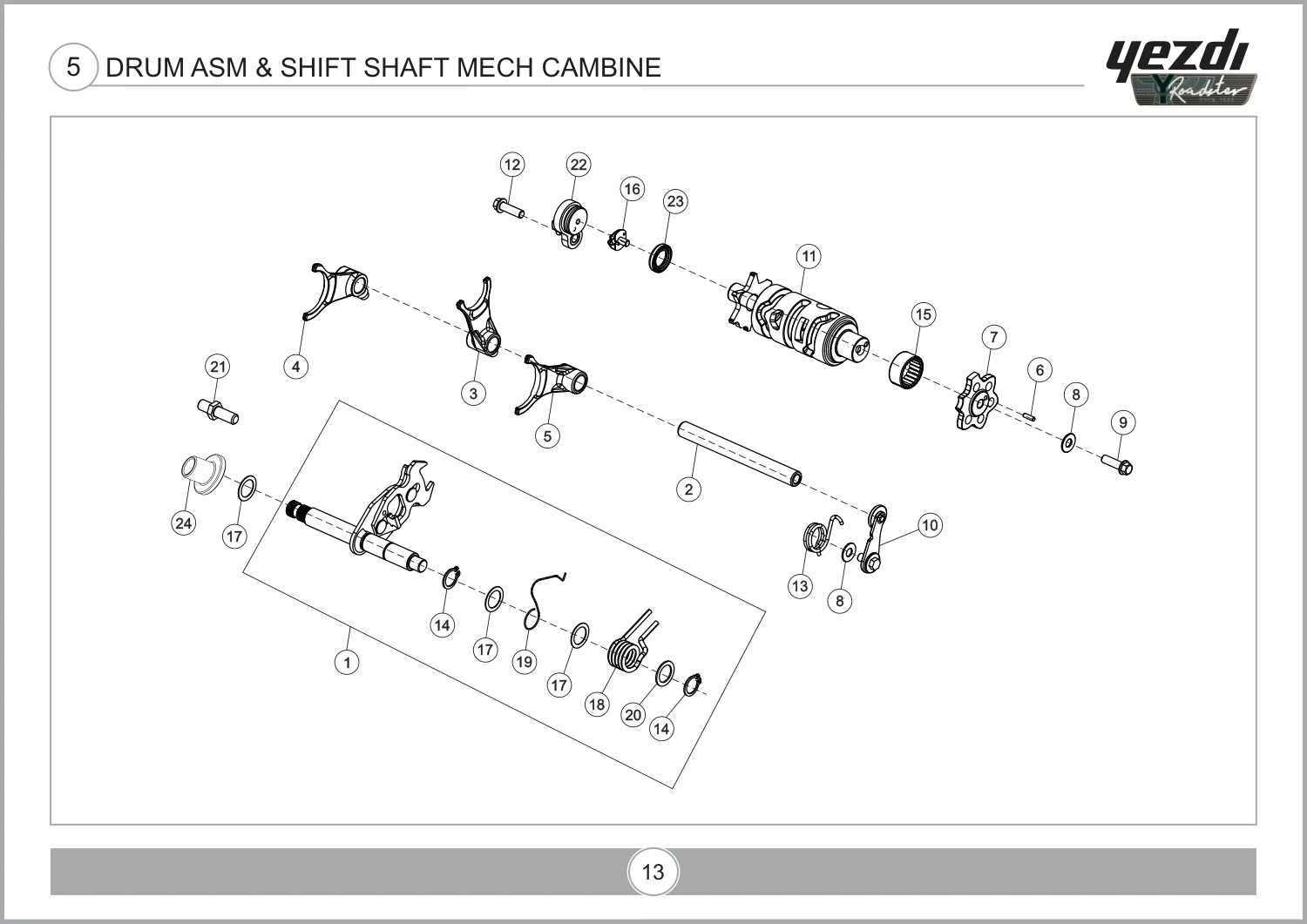

Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 13 · 24 parts![Magneto Assembly - Bs Vi [Fitted Till - Mzdj21C16P1B18810] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p027.webp)
Assembly 6
Magneto Assembly - Bs Vi [Fitted Till - Mzdj21C16P1B18810]
Page 15 · 11 parts![Magneto Assembly - OBD II [Fitted From - Mzdj21C16P1B18811] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p029.webp)
Assembly 7
Magneto Assembly - OBD II [Fitted From - Mzdj21C16P1B18811]
Page 17 · 11 parts
Assembly 8
Starting System & Starter Motor
Page 19 · 18 parts
Assembly 9

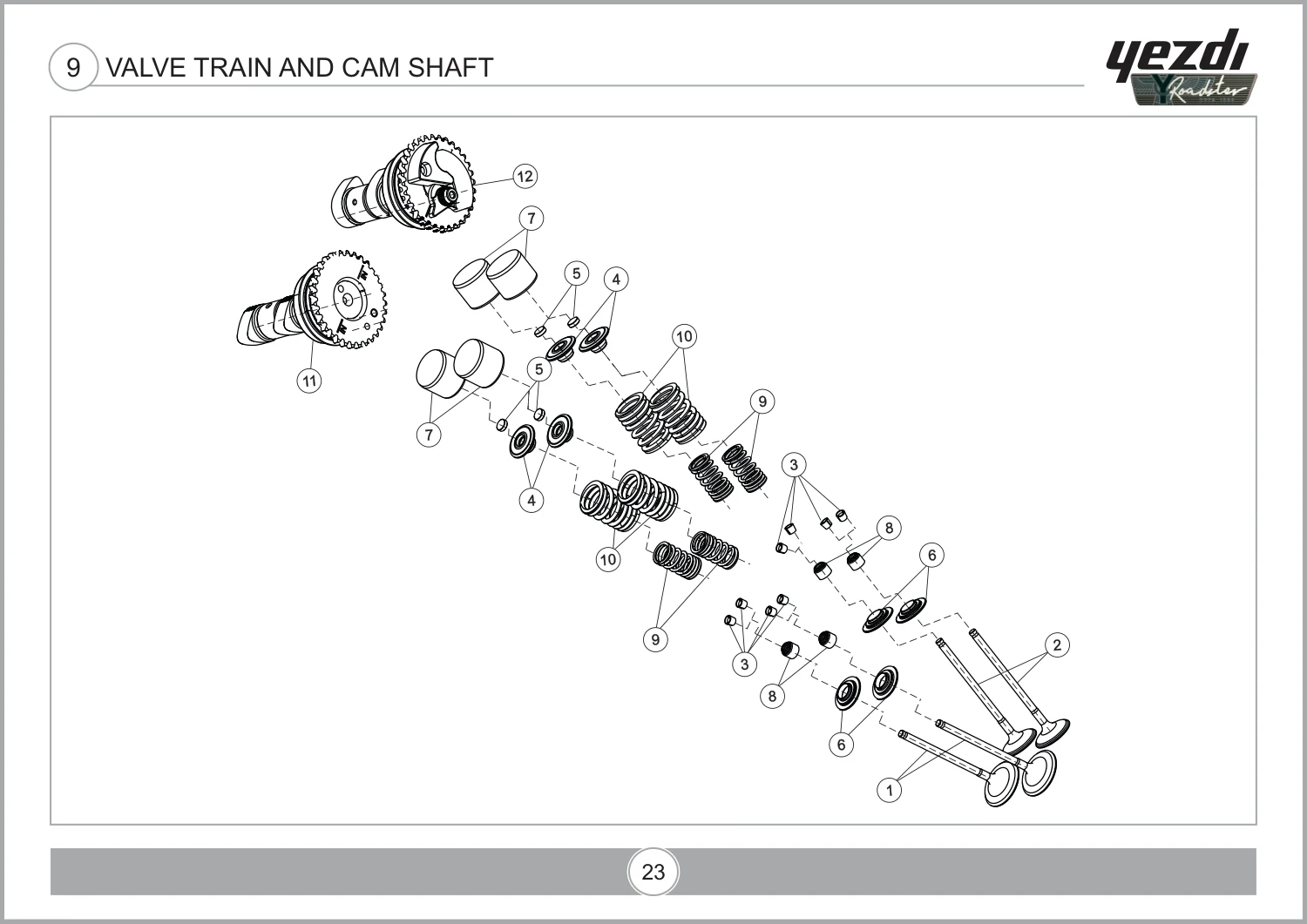

Valve Train And Cam Shaft
Page 21 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 23 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 25 · 4 parts
Assembly 10
Balancer Shaft Assembly
Page 27 · 10 parts![Balancer Shaft Assembly - [Fitted From - Mzdj33C16R1H00530] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p041.webp)
Assembly 11
Balancer Shaft Assembly - [Fitted From - Mzdj33C16R1H00530]
Page 29 · 7 parts![Transmission System - Bs Vi [Fitted Till - Mzdj21C16P1B18810] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p043.webp)
Assembly 12
Transmission System - Bs Vi [Fitted Till - Mzdj21C16P1B18810]
Page 31 · 30 parts![Transmission System - Bs Vi [Fitted Till - Mzdj21C16P1B18810] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p045.webp)
Assembly 12
Transmission System - Bs Vi [Fitted Till - Mzdj21C16P1B18810]
Page 33 · 11 parts![Transmission System - OBD II [Fitted From - Mzdj21C16P1B18811] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p047.webp)
Assembly 13

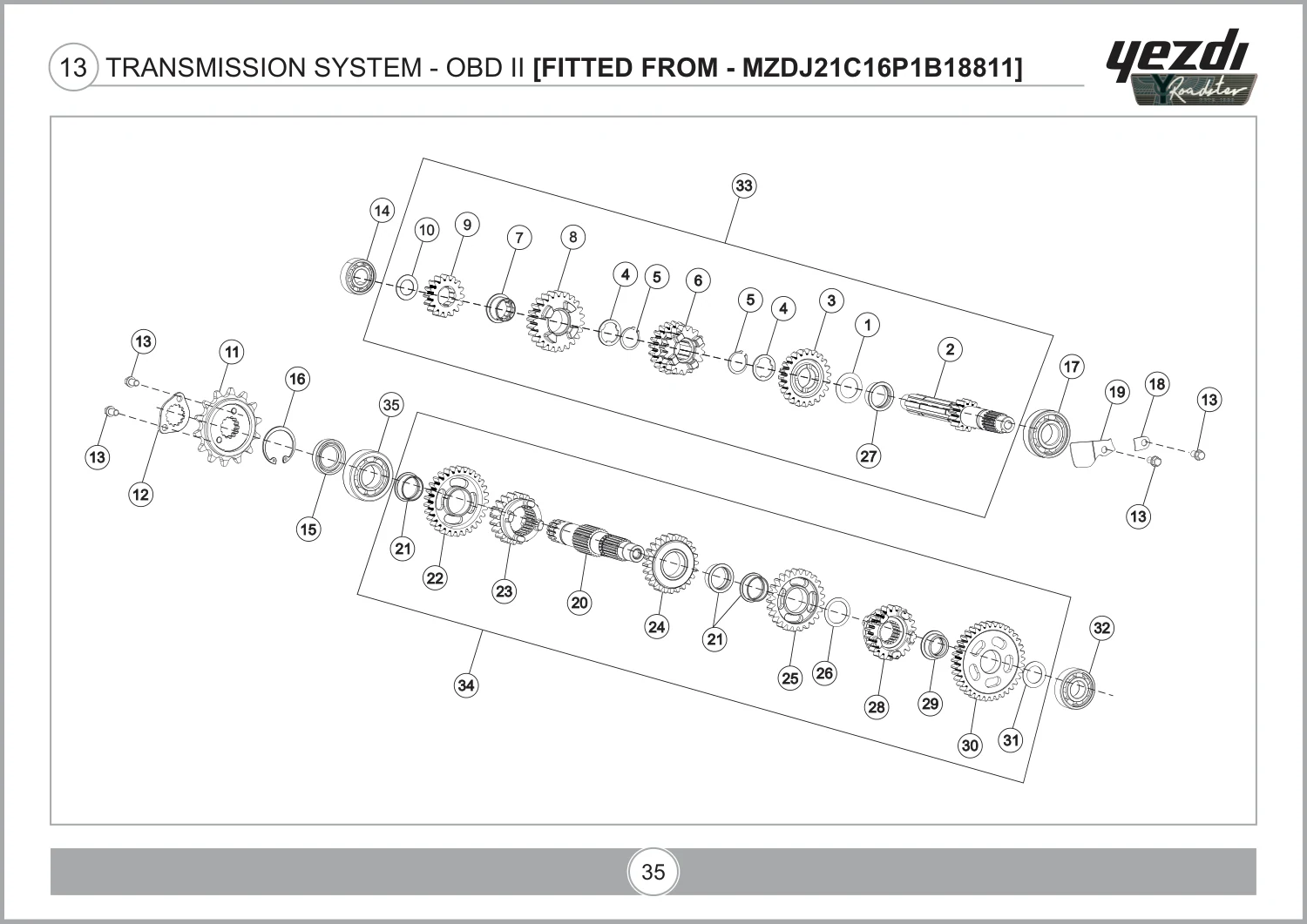

Transmission System - OBD II [Fitted From - Mzdj21C16P1B18811]
Page 35 · 30 parts![Transmission System - OBD II [Fitted From - Mzdj21C16P1B18811] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p049.webp)
Assembly 13
Transmission System - OBD II [Fitted From - Mzdj21C16P1B18811]
Page 37 · 11 parts![Transmission System - [Fitted From - Mzdj21C16R1C26375] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p051.webp)
Assembly 14

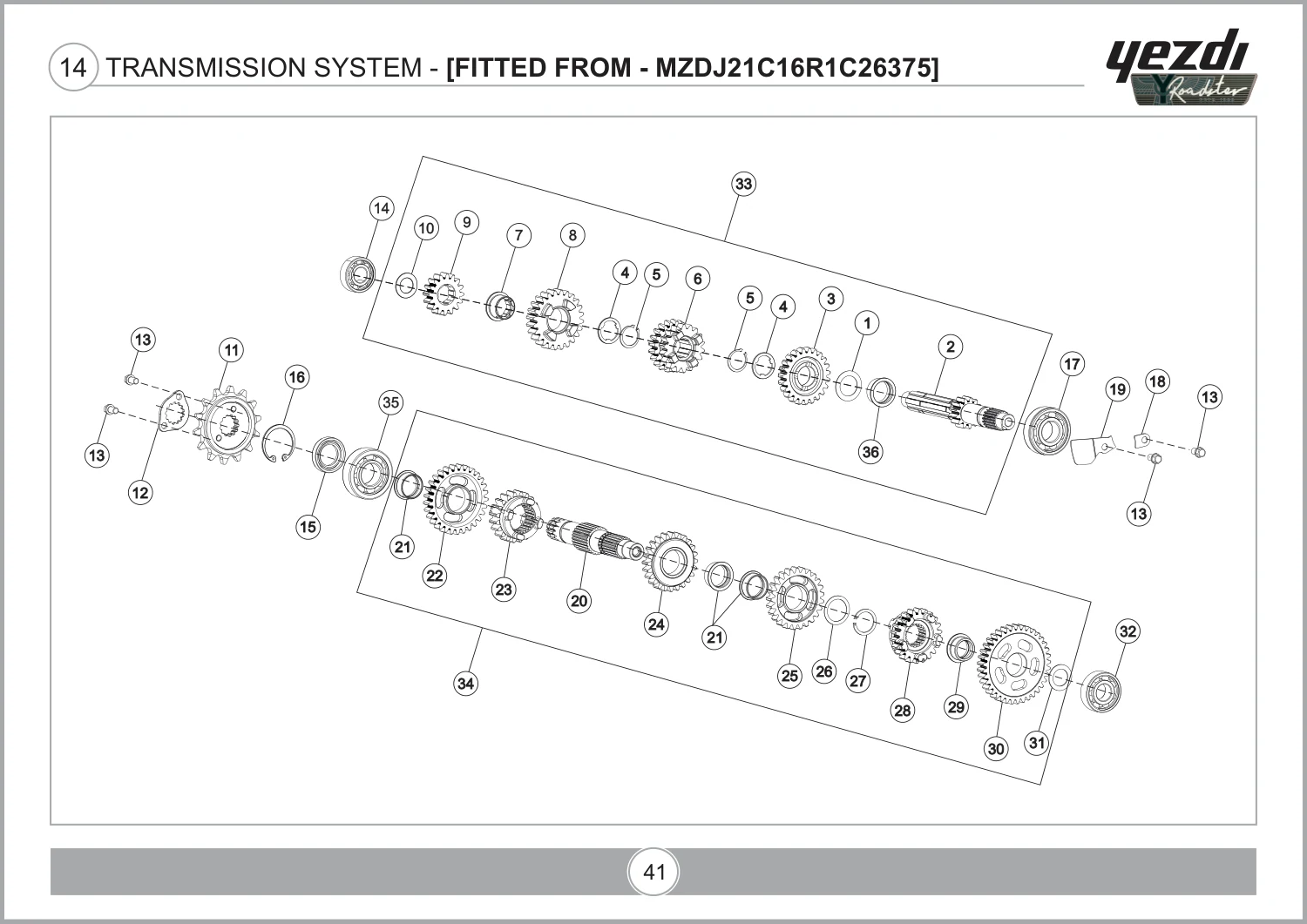

Transmission System - [Fitted From - Mzdj21C16R1C26375]
Page 39 · 30 parts![Transmission System - [Fitted From - Mzdj21C16R1C26375] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p053.webp)
Assembly 14
Transmission System - [Fitted From - Mzdj21C16R1C26375]
Page 41 · 6 parts
Assembly 15

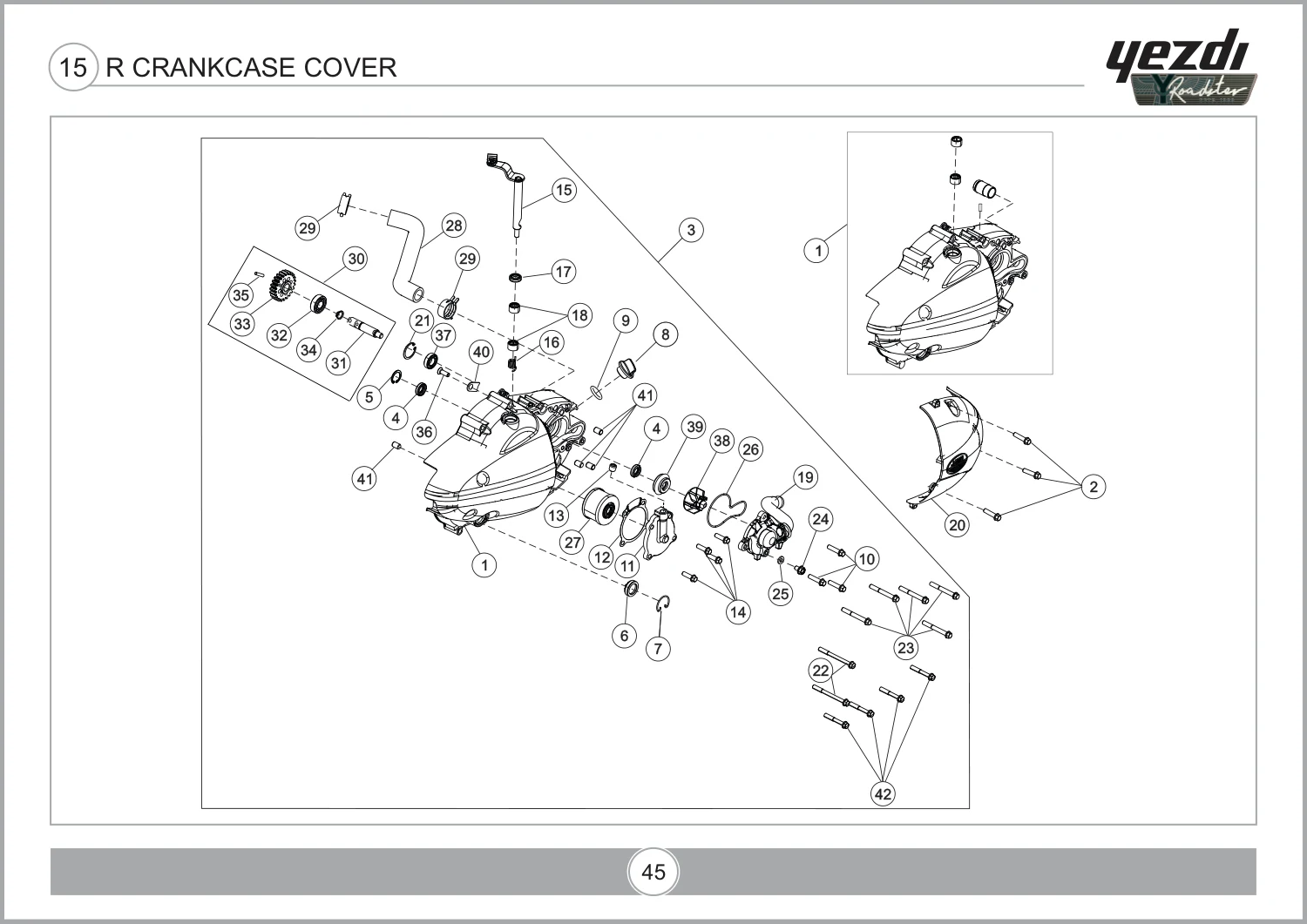

R Crankcase Cover
Page 43 · 30 parts
Assembly 15
R Crankcase Cover
Page 45 · 27 parts
Assembly 16
Crankshaft And Piston
Page 47 · 24 parts![Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p061.webp)
Assembly 17
Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810]
Page 49 · 30 parts![Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p063.webp)
Assembly 17
Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810]
Page 51 · 2 parts![Magneto Cover LH - OBD II [Fitted From - Mzdj21C16P1B18811] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p065.webp)

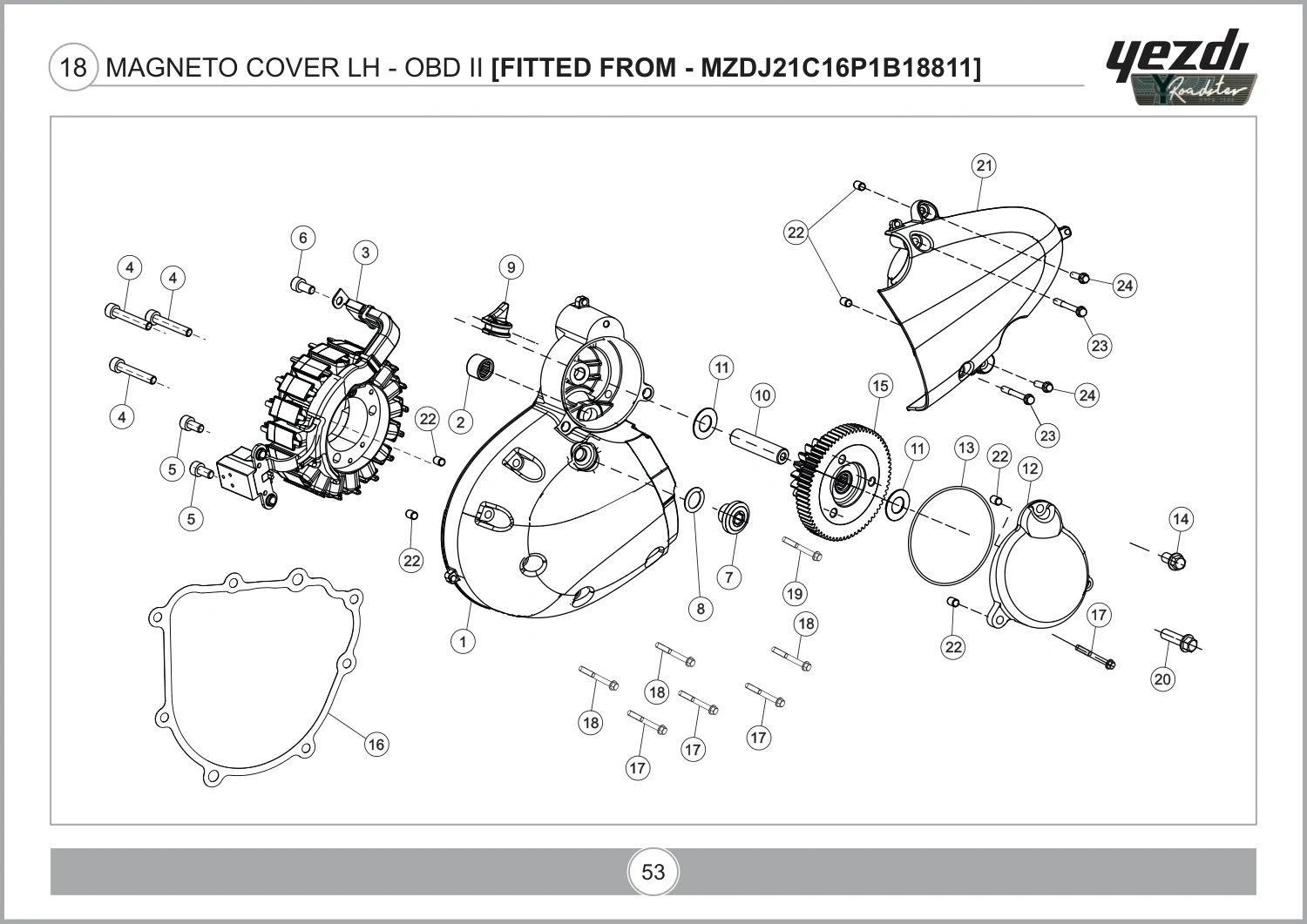

Assembly 18
Magneto Cover LH - OBD II [Fitted From - Mzdj21C16P1B18811]
Page 53 · 30 parts![Magneto Cover LH - OBD II [Fitted From - Mzdj21C16P1B18811] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p067.webp)
Assembly 18
Magneto Cover LH - OBD II [Fitted From - Mzdj21C16P1B18811]
Page 55 · 7 parts![Conventional - Clutch Assembly [Fitted Till - Mzdj21C16N1F10515] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p069.webp)
Assembly 19
Conventional - Clutch Assembly [Fitted Till - Mzdj21C16N1F10515]
Page 57 · 17 parts![A&S - Clutch Assembly [Fitted From - Mzdj21C16N1F10516] drawing](/jawa-spare/assets/diagrams/yezdi-roadster-p071.webp)
Assembly 20
A&S - Clutch Assembly [Fitted From - Mzdj21C16N1F10516]
Page 59 · 24 parts
Assembly 21

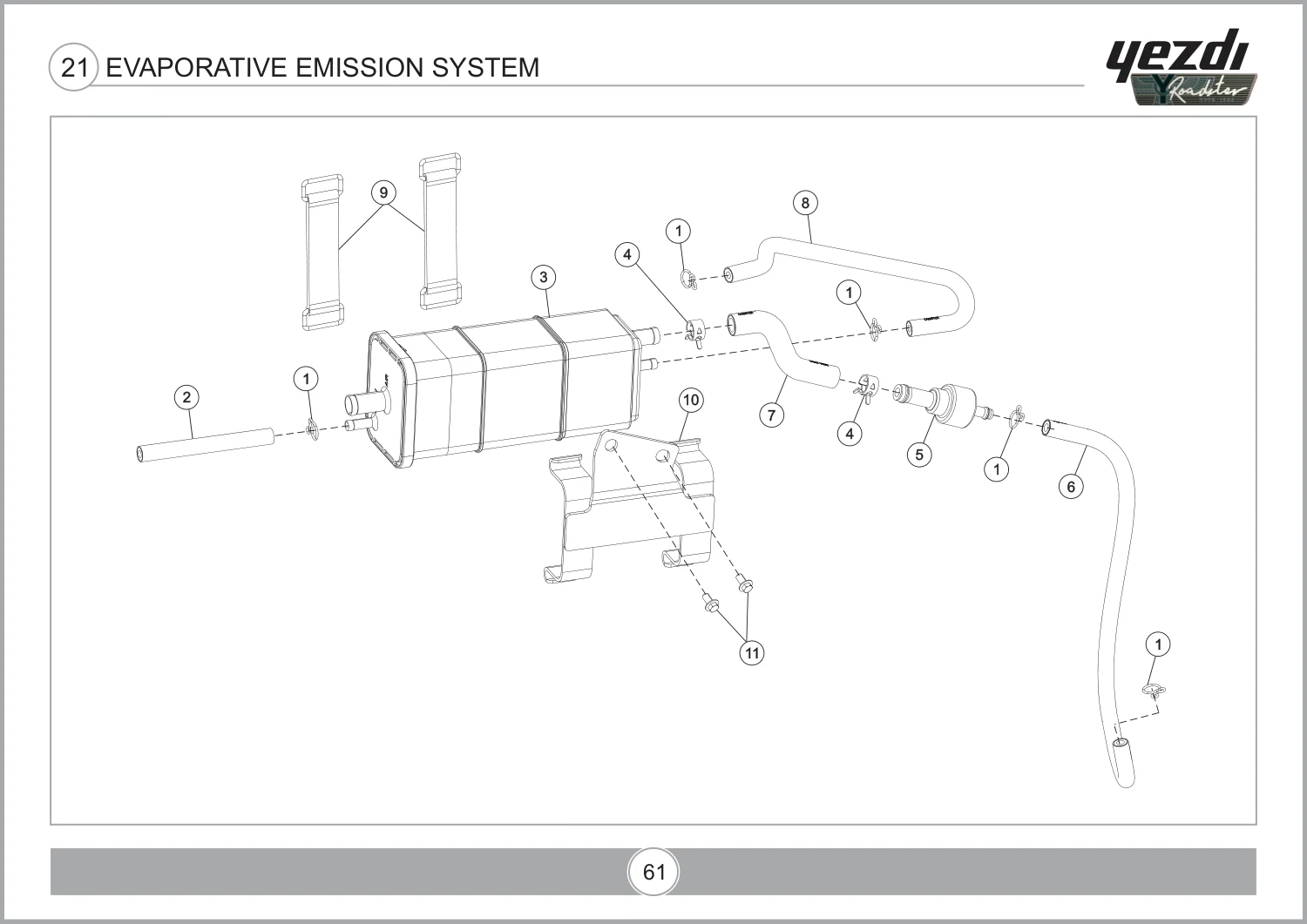

Evaporative Emission System
Page 61 · 11 parts
Assembly 22
Air Filter Assembly
Page 63 · 30 parts
Assembly 22
Air Filter Assembly
Page 65 · 6 parts
Assembly 23
Brake System Front
Page 67 · 28 parts
Assembly 24

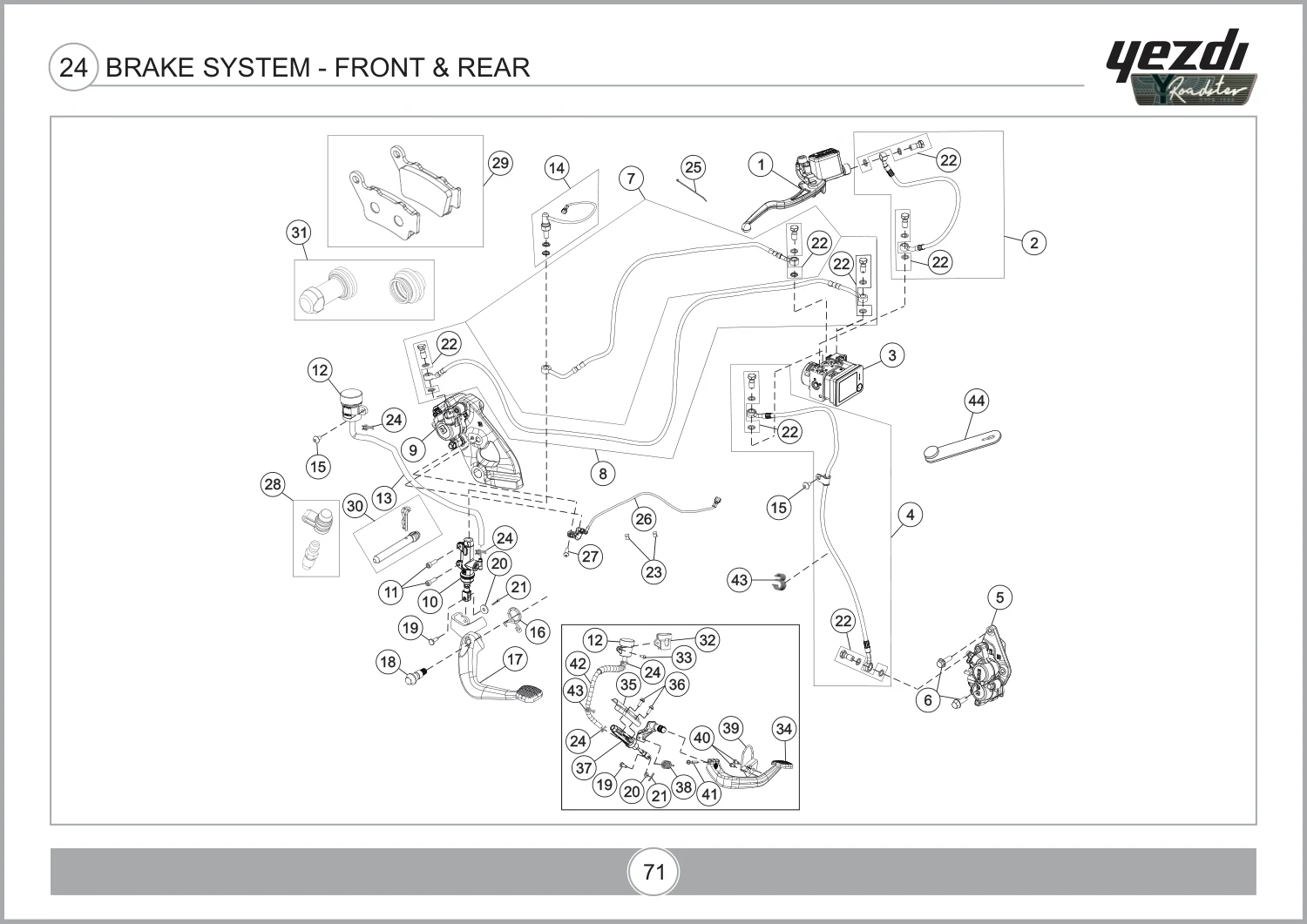

Brake System - Front & Rear
Page 69 · 30 parts
Assembly 24
Brake System - Front & Rear
Page 71 · 19 parts
Assembly 25
Anti-Lock Braking System (ABS)
Page 73 · 5 parts
Assembly 26
Foot Rest Assembly/ Gear Shift Lever / Lock Set
Page 75 · 30 parts
Assembly 26
Foot Rest Assembly/ Gear Shift Lever / Lock Set
Page 77 · 15 parts
Assembly 27
Footrest Assembly LH & RH
Page 79 · 24 parts
Assembly 28
Front Wheel Assembly
Page 81 · 16 parts
Assembly 29

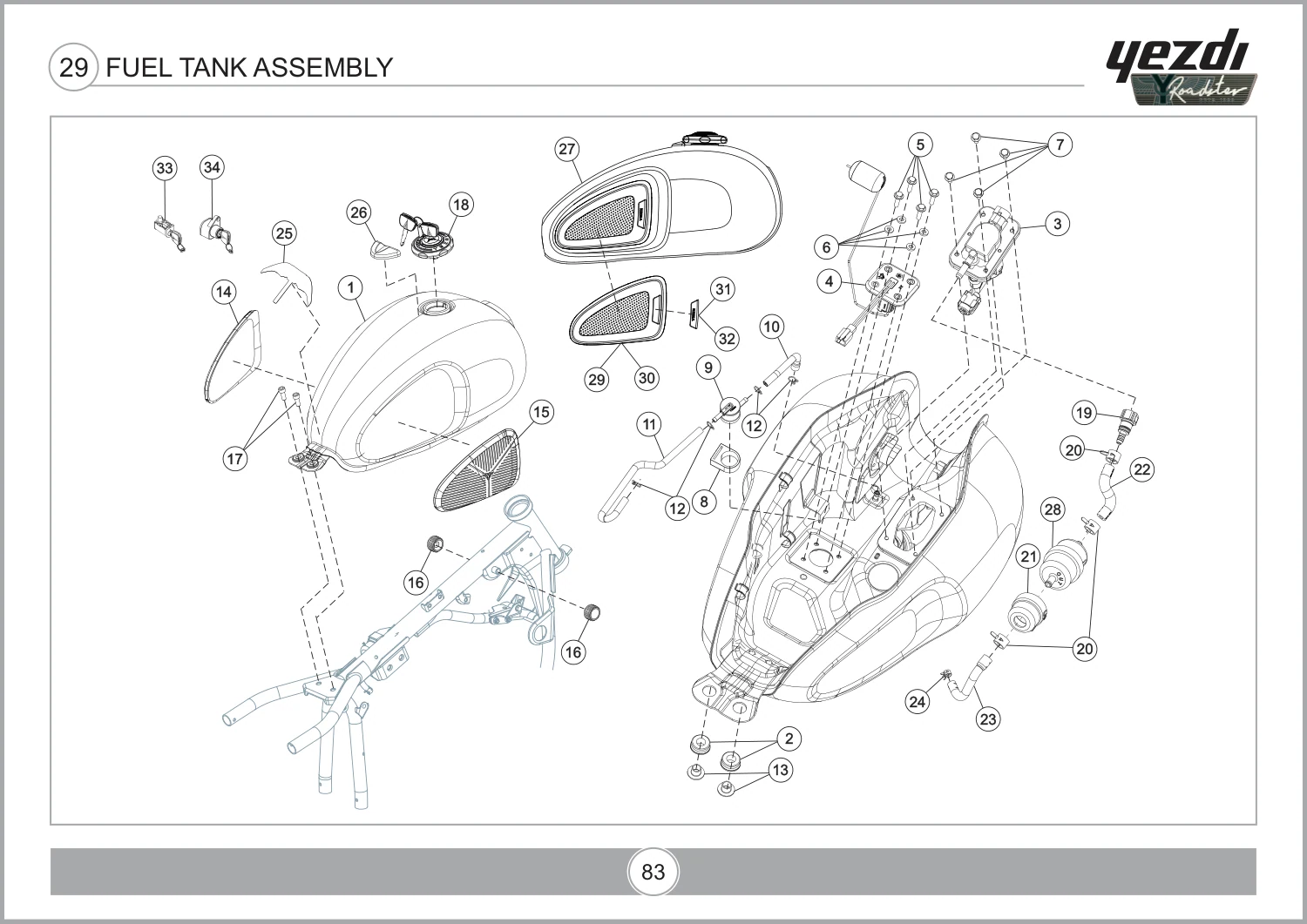

Fuel Tank Assembly
Page 83 · 30 parts
Assembly 29
Fuel Tank Assembly
Page 85 · 15 parts
Assembly 30
Front Mudguard Assembly
Page 87 · 13 parts
Assembly 31
Radiator & Cooling System (1/2)
Page 89 · 24 parts
Assembly 32
Radiator & Cooling System (2/2)
Page 91 · 18 parts
Assembly 33

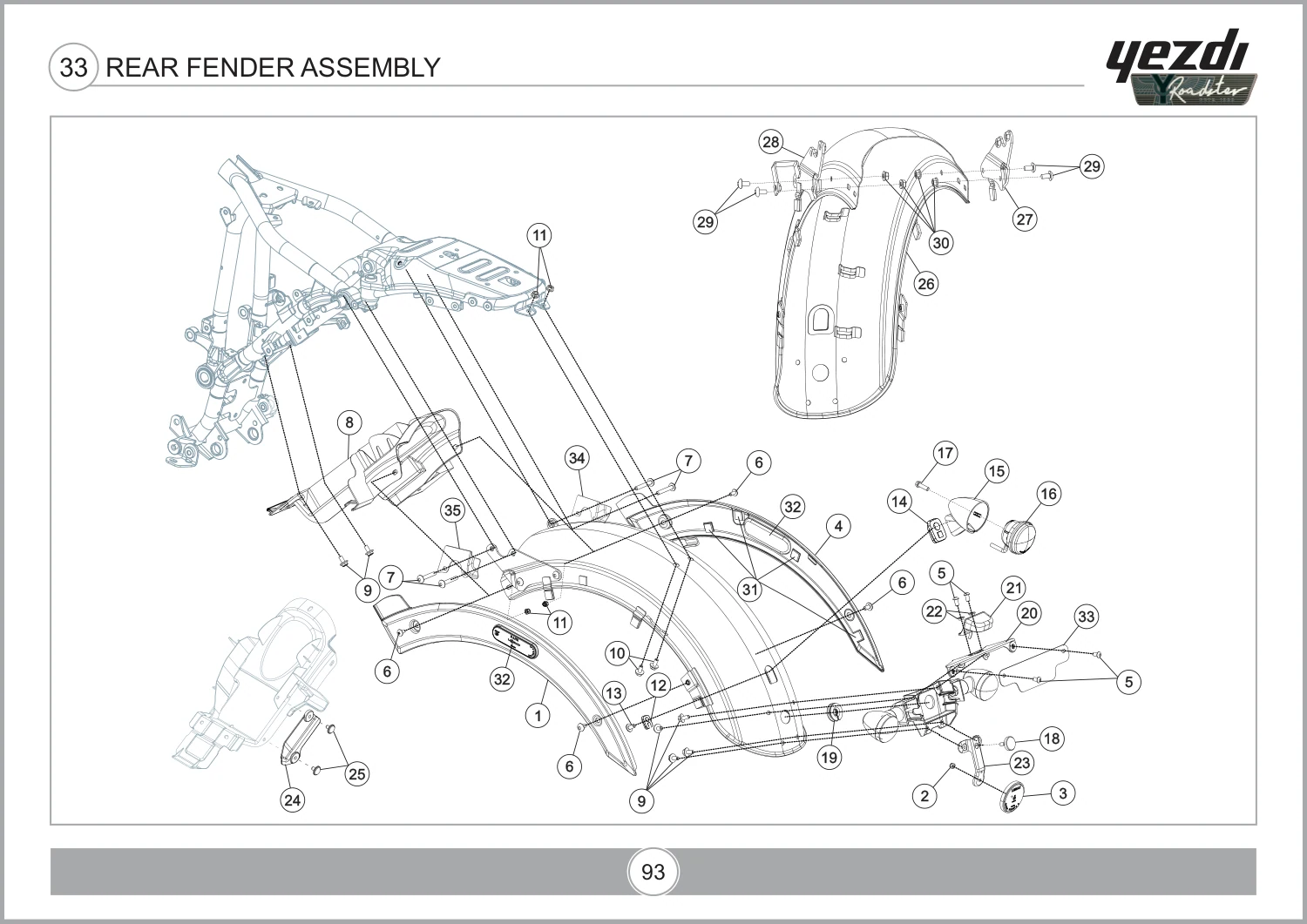

Rear Fender Assembly
Page 93 · 30 parts
Assembly 33
Rear Fender Assembly
Page 95 · 15 parts
Assembly 34

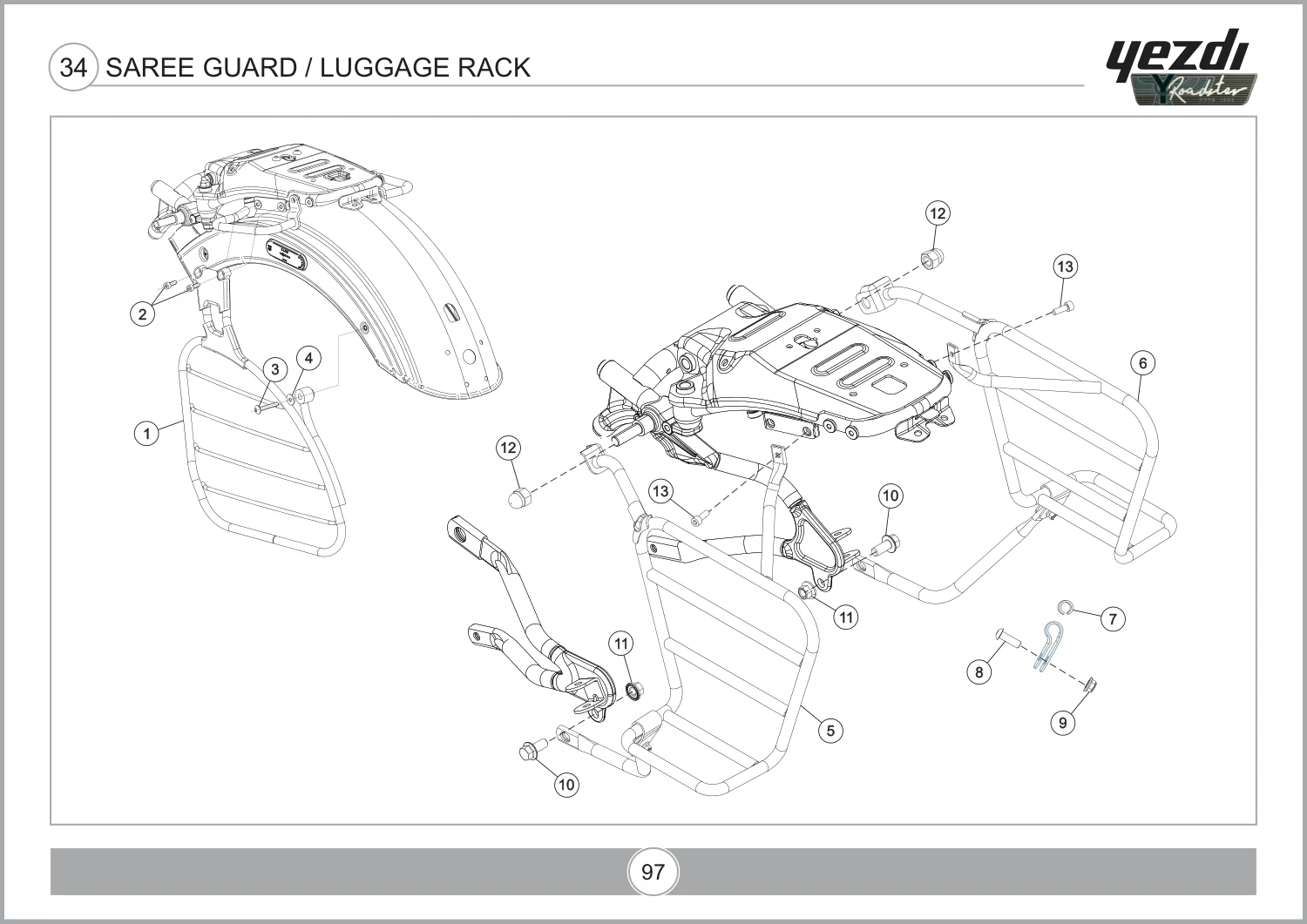

Saree Guard / Luggage Rack
Page 97 · 13 parts
Assembly 35
Rear Wheel Assembly
Page 99 · 28 parts

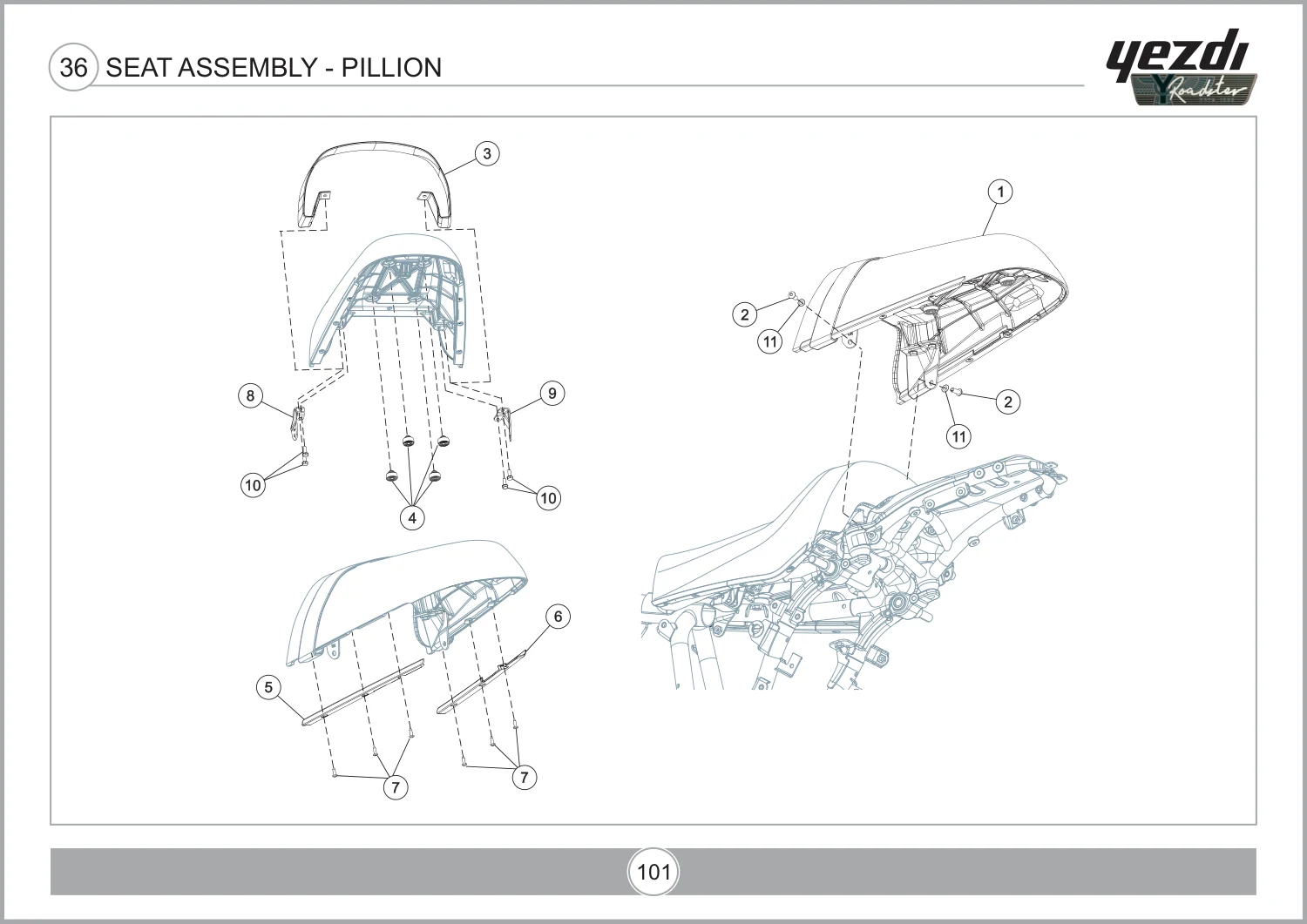

Assembly 36
Seat Assembly - Pillion
Page 101 · 12 parts
Assembly 37

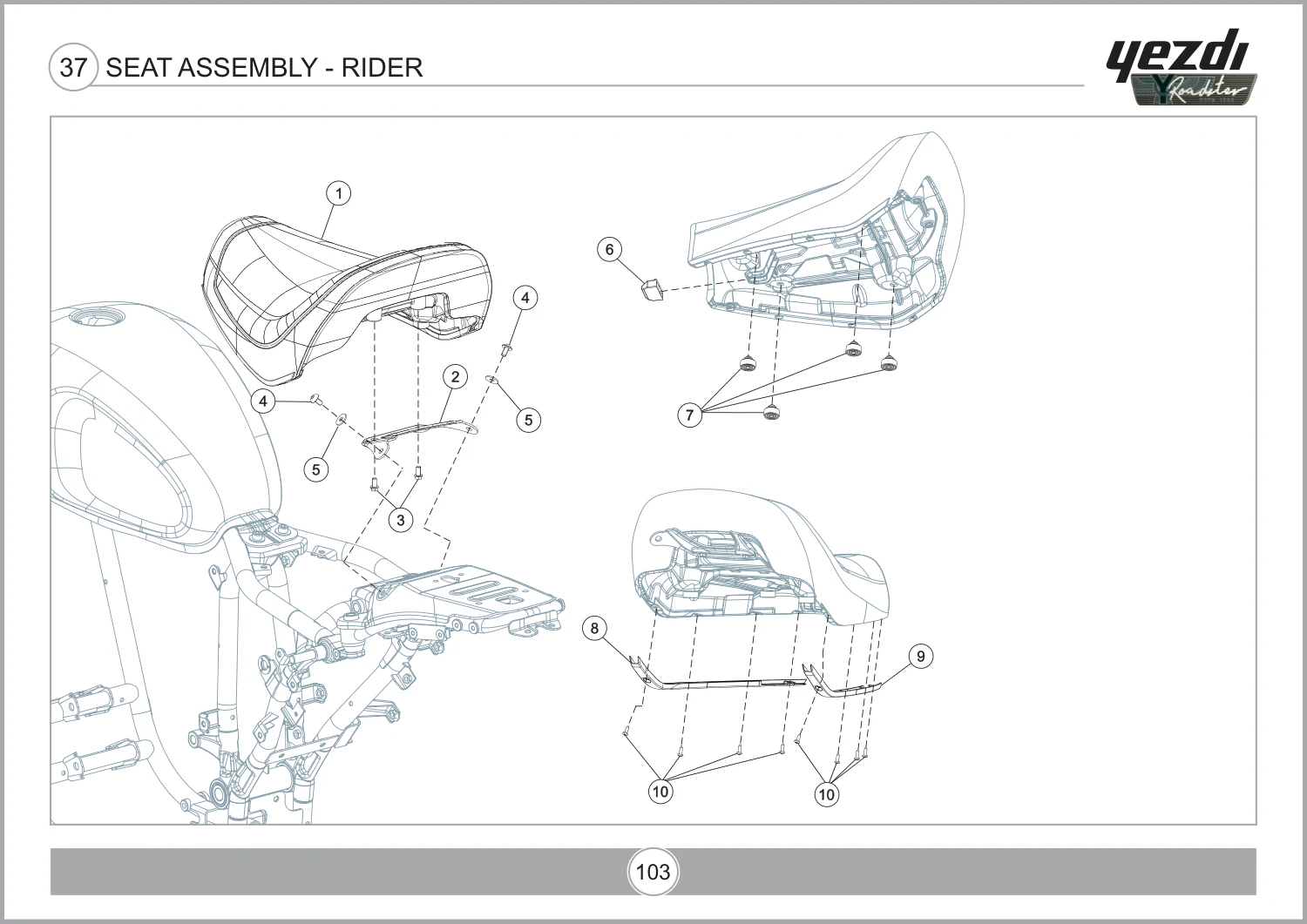

Seat Assembly - Rider
Page 103 · 11 parts
Assembly 38
Silencer Assembly
Page 105 · 29 parts
Assembly 39

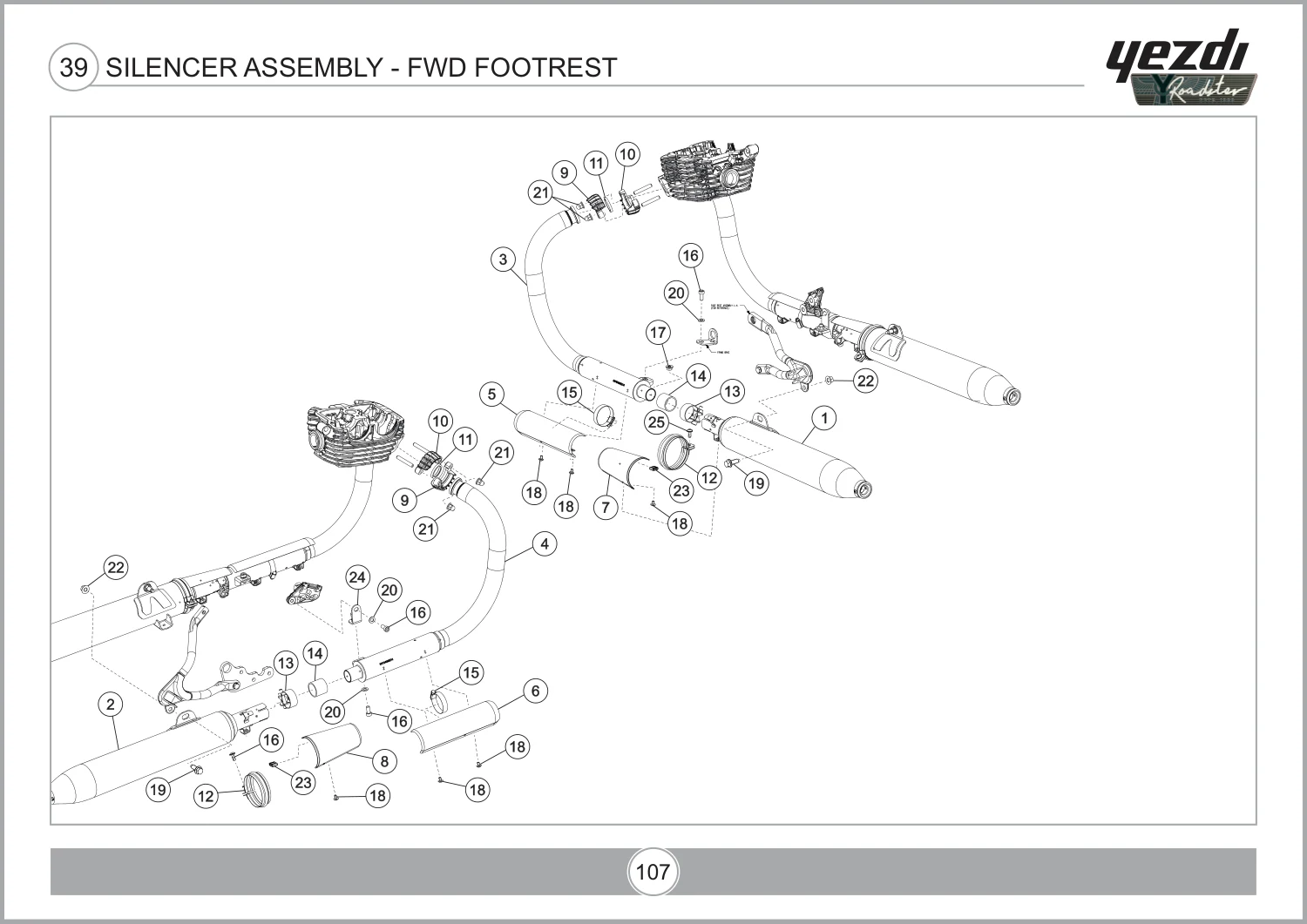

Silencer Assembly - Fwd Footrest
Page 107 · 25 parts
Assembly 40
Steering
Page 109 · 12 parts
Assembly 41
Front Fork Assembly
Page 111 · 23 parts
Assembly 42

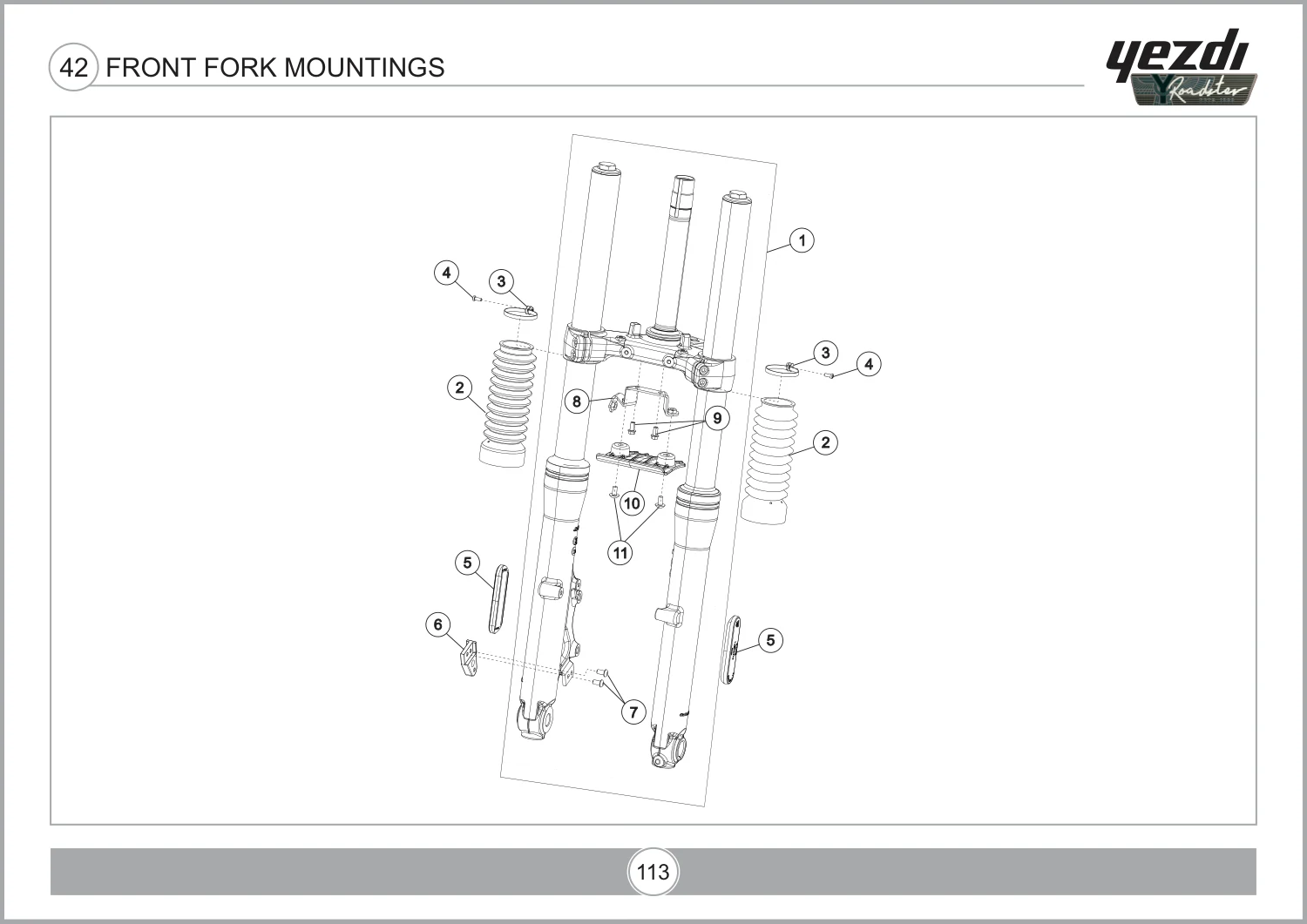

Front Fork Mountings
Page 113 · 11 parts
Assembly 43
Fairing Assembly (1/2)
Page 115 · 24 parts
Assembly 44
Fairing Assembly (2/2)
Page 117 · 25 parts
Assembly 45

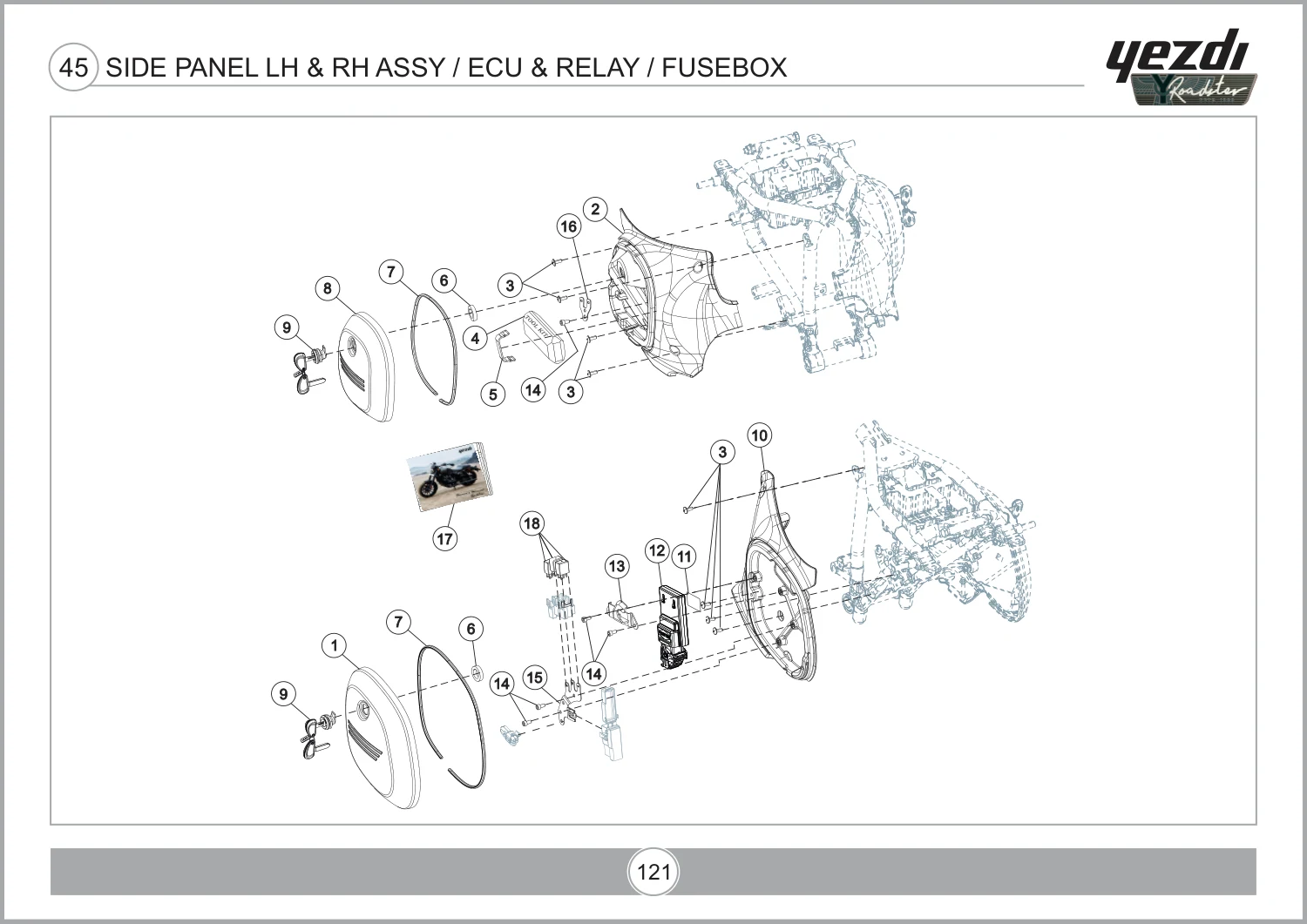

Side Panel LH & RH Assy / ECU & Relay / Fusebox
Page 119 · 30 parts
Assembly 45
Side Panel LH & RH Assy / ECU & Relay / Fusebox
Page 121 · 3 parts
Assembly 46
Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Page 123 · 30 parts
Assembly 46
Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Page 125 · 13 parts
Assembly 47
Engine Mounting System
Page 127 · 21 parts
Assembly 48

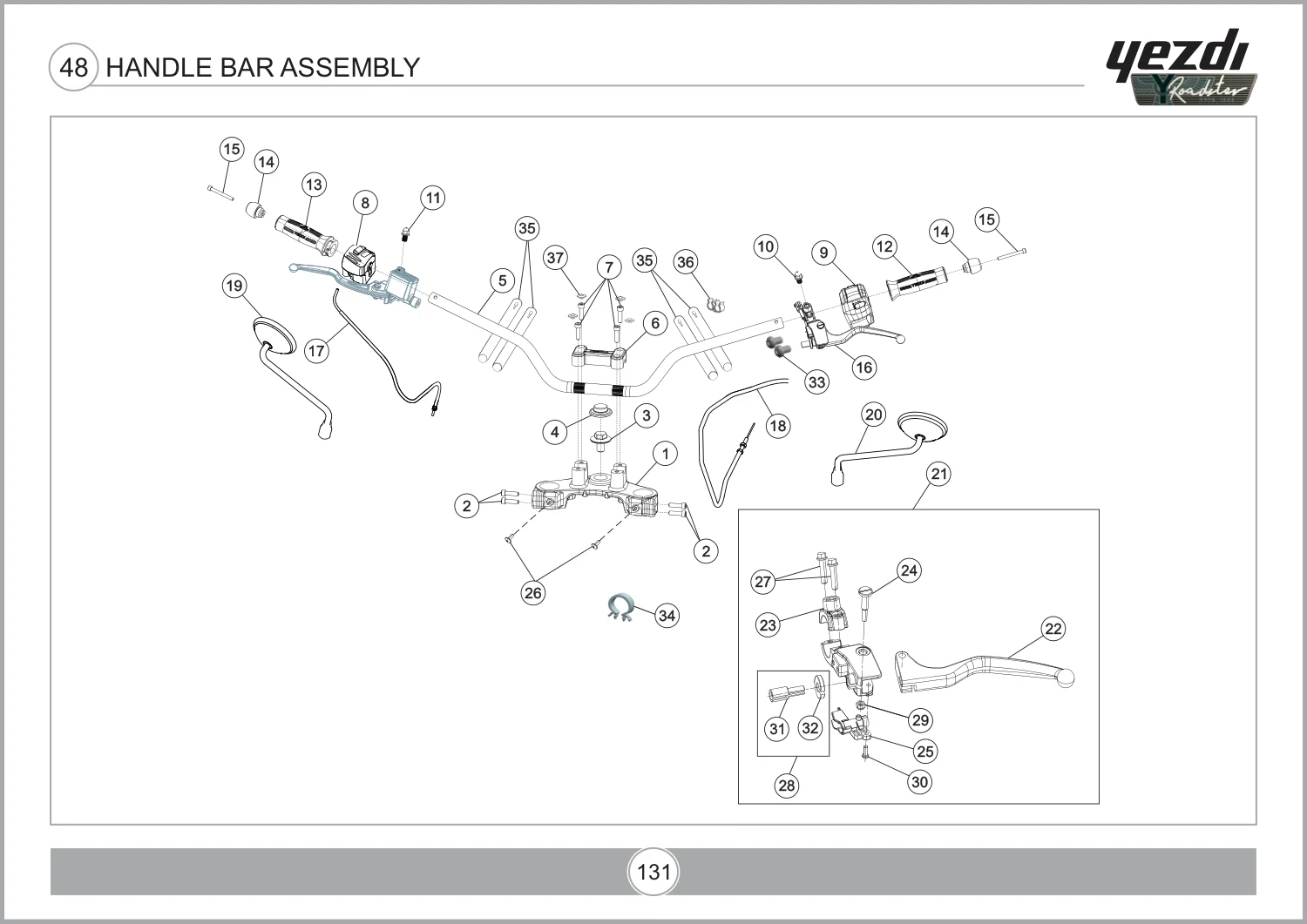

Handle Bar Assembly
Page 129 · 30 parts
Assembly 48
Handle Bar Assembly
Page 131 · 22 parts
Assembly 49
Swing Arm Assembly And Rear Shock Absorber
Page 133 · 30 parts
Assembly 50
Headlamp, Tail Lamp, Indicator Fr & RR, Speedometer Assembly
Page 135 · 30 parts
Assembly 50
Headlamp, Tail Lamp, Indicator Fr & RR, Speedometer Assembly
Page 137 · 5 parts
Assembly 51
Wiring Harness & Electrical Components
Page 139 · 22 parts
Assembly 52
Electronic Fuel Injection (EFI) Assembly
Page 141 · 22 parts
Assembly 53
Decals
Page 143 · 16 parts
Assembly 54
Decals - Fwd Footrest
Page 145 · 11 parts
Assembly 55
Accessories
Page 147 · 18 partsNo matching assemblies. Try a broader name.
Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf. Check the BS/OBD and variant notes in each drawing before requesting a part.
