Yezdi Roadster · ASSEMBLY 49 · REV 22

Swing Arm Assembly And Rear Shock Absorber

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster · Rev 22 · p. 133Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Bush Inner LHT1101AKW0010N	1	Enquiry ↗
2	Screw Rdskt M6X1X12Xa2-70SF0212023	3	Enquiry ↗
3	Bush Inner RHT1101AKW0020N	1	Enquiry ↗
4	Collar - Bush Inner RHT1101AKW0040N	1	Enquiry ↗
5	Self Lock Nut M16TSF0318003	1	Enquiry ↗
6	Bush Outer RHT1101AKW0030N	1	Enquiry ↗
7	Swing Arm Axle M16T1101CKW0010N	1	Enquiry ↗
8	Special Washer (RR Shock ABS. Mtg,)MF01700003500	4	Enquiry ↗
9	Nut Special M12X1.5X22X8SF0300040	4	Enquiry ↗
10	Swing Arm Chain Adjustor RHT08000KW0620N	1	Enquiry ↗
11	Cable Strap 200Mm HellermannT1501AKE2052E	5	Enquiry ↗
12	Rear Shock Absorber J2 Classic DarkT11020J20010N	2	Enquiry ↗
12.1	Rear Shock Absorber J2 Classic SilverT11020J20010F	2	Enquiry ↗
13	Swing Arm Chain Adjustor LHT08000KW0610N	1	Enquiry ↗
14	Swing Arm SubassemblyT11010J20040N	1	Enquiry ↗
15	Chain Cover Texture BlackT1103AJ20010N	1	Enquiry ↗
16	Circlip Int - Lug 30X1.2XphSF0602002	2	Enquiry ↗
17	Tapping Screw M4X12TSF0214025	2	Enquiry ↗
18	Needle Roller Bearing6801CAP00021N	3	Enquiry ↗
19	Bearing Dg Ball Sr 17X30X7SP010100119	1	Enquiry ↗
20	Washer 4Mm94101-04700	2	Enquiry ↗
21	Chain GuideT1103BY50010N	1	Enquiry ↗
22	Nut Hex M8X1.25X6.8X8SF0301245	2	Enquiry ↗
23	Screw Hex M8X1.25X55X8.8SF0201389	2	Enquiry ↗
24	Cable Tie Clamp AraymondT25010KW0034N	1	Enquiry ↗
25	Caution StickerT08000J20180N	1	Enquiry ↗
26	Swing Arm J201T11010J20020N	1	Enquiry ↗
27	Bracket Reservoir Hose Mtg Fwd FootrestT22000J20130N	1	Enquiry ↗
28	Washer Plate LHT11010KW0070N	1	Enquiry ↗
29	Washer Plate RHT11010KW0080N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

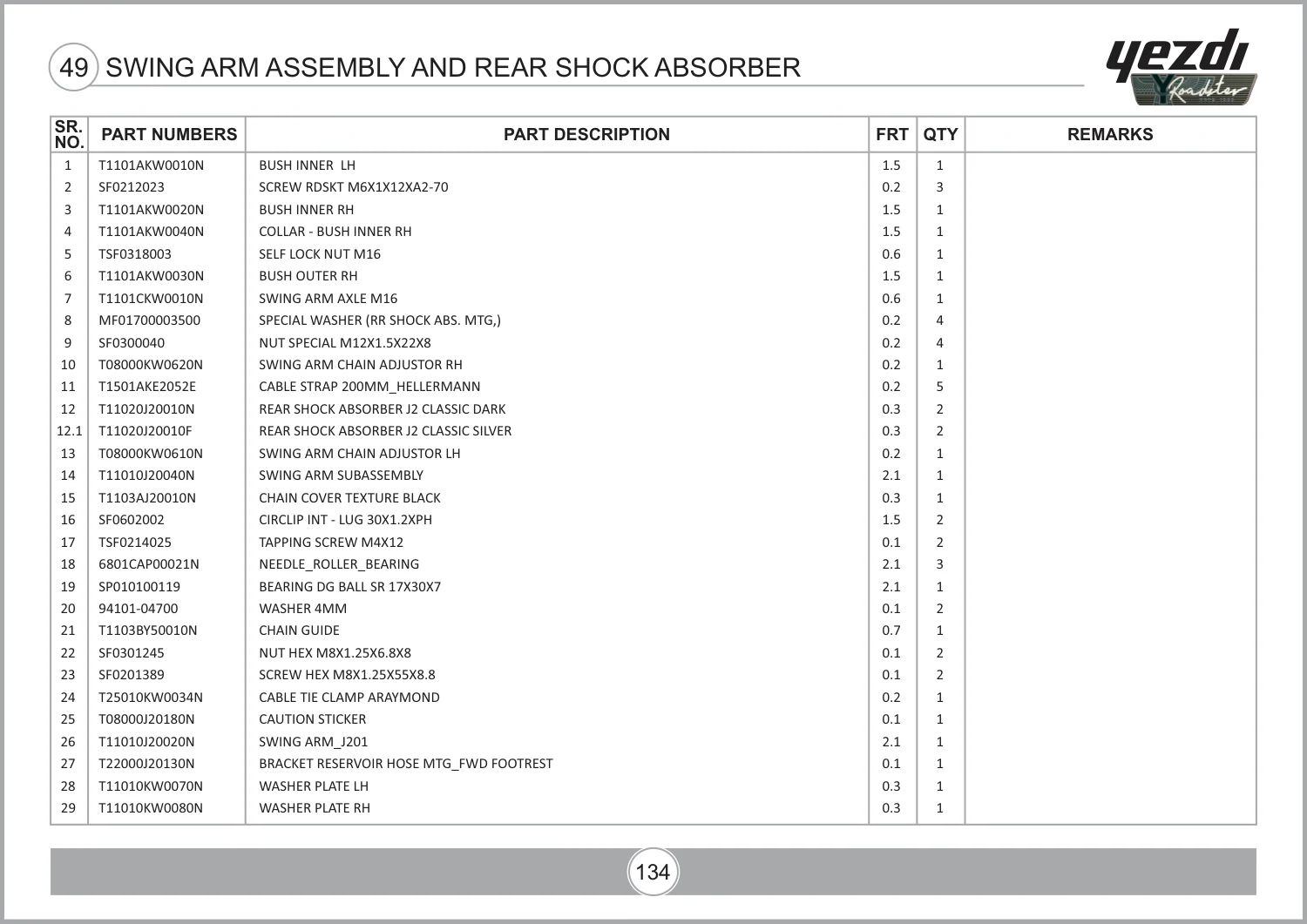

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 145, parts table page 146. View original parts table ↗
