Handle Bar Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Handle Bar Assembly exploded assembly diagram, catalogue page 129

Yezdi Roadster · Rev 22 · p. 129Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Upper Bracket J2 ClassicT0505DJ20010E	1	Enquiry ↗
1.1	Upper Bracket J2 Fwd FootrestT0505DJ20010T	1	Enquiry ↗
2	Socket Head Screw M8X28 Fwd FootrestSF0224181	4	Enquiry ↗
3	Steering Top Bolt M16X1.25X25X8.8T07000KW0050N	1	Enquiry ↗
4	Cap Steering BoltT07000KW0060N	1	Enquiry ↗
5	Handlebar Tube ChromeT07000J20030N	1	Enquiry ↗
5.1	Handlebar Tube BlackT07000J20030E	1	Enquiry ↗
5.2	Handlebar Tube Chrome Fwd FootrestT07000J20040N	1	Enquiry ↗
5.3	Handlebar Tube Black Fwd FootrestT07000J20040E	1	Enquiry ↗
6	Handle Bar Holder Upper J201T0701GJ20010E	1	Enquiry ↗
6.1	Handle Bar Holder Upper Fwd FootrestT0701GJ20010T	1	Enquiry ↗
7	Screw Socket M8X1.25X40X8.8 Fwd FootrestSF0224043	4	Enquiry ↗
8	Switch Assembly RH -J201T1501MJ20020N	1	Enquiry ↗
9	Switch Assembly LH -J201T1501MJ20010N	1	Enquiry ↗
10	Plug Cap LHT0701CJ30010N	1	Enquiry ↗
11	Plug Cap RHT0701CJ30020N	1	Enquiry ↗
12	Handle Grip LHT0701DJ20010N	1	Enquiry ↗
12.1	Handle Grip LH Fwd FootrestT0701DB10010N	1	Enquiry ↗
13	Throttle Control Tube With Handle Grip RHT0701EJ20010N	1	Enquiry ↗
13.1	Throttle Control Tube With Handle Grip RH Fwd FootrestT0701DB10020N	1	Enquiry ↗
14	Counter WeightT0701JKW0030N	2	Enquiry ↗
14.1	Counter Weight BlackT0701JKW0020N	2	Enquiry ↗
15	Socket Head Screw M6X55SP0306020	2	Enquiry ↗
15.1	Bolt Socket M6X1X60X8.8 Fwd FootrestSF0105025	2	Enquiry ↗
16	Clutch Lever AssyT0701CY50020N	1	Enquiry ↗
17	Throttle Cable AsslyT2401DKW0010N	1	Enquiry ↗
17.1	Throttle Cable Assly Fwd FootrestT2401DY40010N	1	Enquiry ↗
18	Clutch Cable Assembly - BSVIT2401HJ20010N	1	Enquiry ↗
19	Mirror RH AssemblyT14040KW0020N	1	Enquiry ↗
19.1	Mirror Assy RH Handle EndT14040KW0040N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

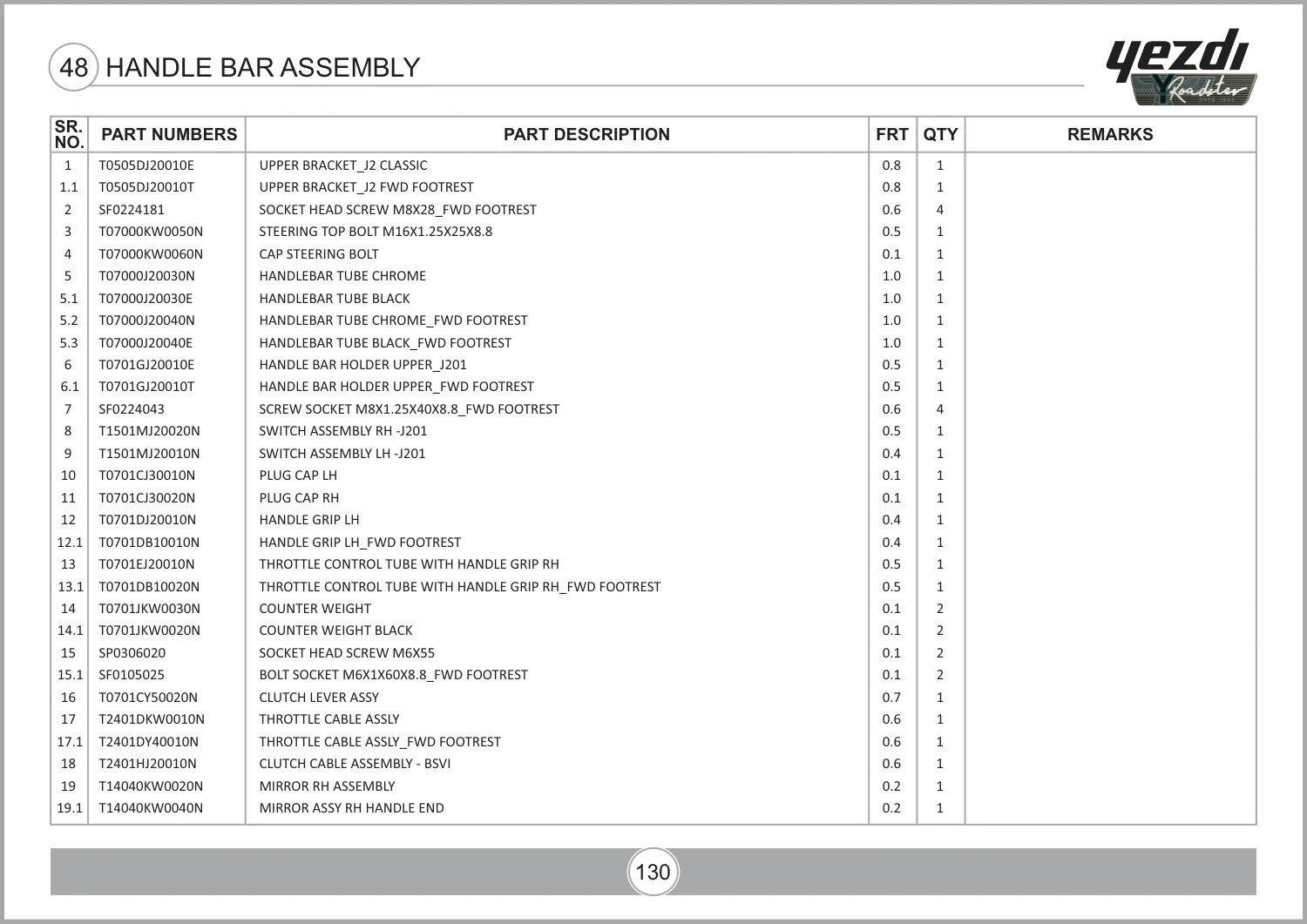

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 141, parts table page 142. View original parts table ↗
