Yezdi Roadster · ASSEMBLY 47 · REV 22
Engine Mounting System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster · Rev 22 · p. 127Original parts list ↗
Parts in this drawing
21 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Bolt Hex Fl M10X1.25X150X10.9SF0102545 | 1 | |
| 2 | Bolt Hex Fl M10X1.25X175X10.9SF0102544 | 1 | |
| 3 | Flange U Nut M10X1.25TSF0318009 | 7 | |
| 4 | Washer M10 (110*22*2.0)TSF0401130 | 5 | |
| 5 | Flanged Bolt M10 X 50TSF0102302 | 1 | |
| 6 | Screw Hex Fl M10X1.5X25X8.8SF0202258 | 2 | |
| 7 | Top Engine Bracket LHT2101DKW0030E | 1 | |
| 8 | Flanged Bolt M10 X 90TSF0102299 | 1 | |
| 9 | Flanged Bolt M10 X 125TSF0102300 | 2 | |
| 10 | Front Engine Bracket RHT2101DKW0020E | 1 | |
| 11 | Front Engine Bracket LHT2101DKW0010E | 1 | |
| 12 | Bolt Special M10*1.25*90*10.9SF0100129 | 1 | |
| 13 | Gear Shift Lever Assembly BlackT0215DJ30040N | 1 | |
| 14 | Stopper Hook Gear Shift LeverT0215DJ30060N | 1 | |
| 15 | Button Head Socket Screw M6X16TSF0212011 | 1 | |
| 16 | Grip Gear LeverMH00590000400 | 1 | |
| 17 | M6 Nyloc Nut (Black)TSF0318007 | 1 | |
| 18 | Pin Pivot Gear Shift Lever J122 Fwd FootrestT20010KW0150N | 1 | |
| 19 | Flange Bolt M6 X 20 (White)SP0906029 | 1 | |
| 20 | Cap M10 BoltT14000Y50630N | 1 | |
| 21 | Clutch Cable Mtg Bracket Fwd FootrestT0219BVE0010E | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

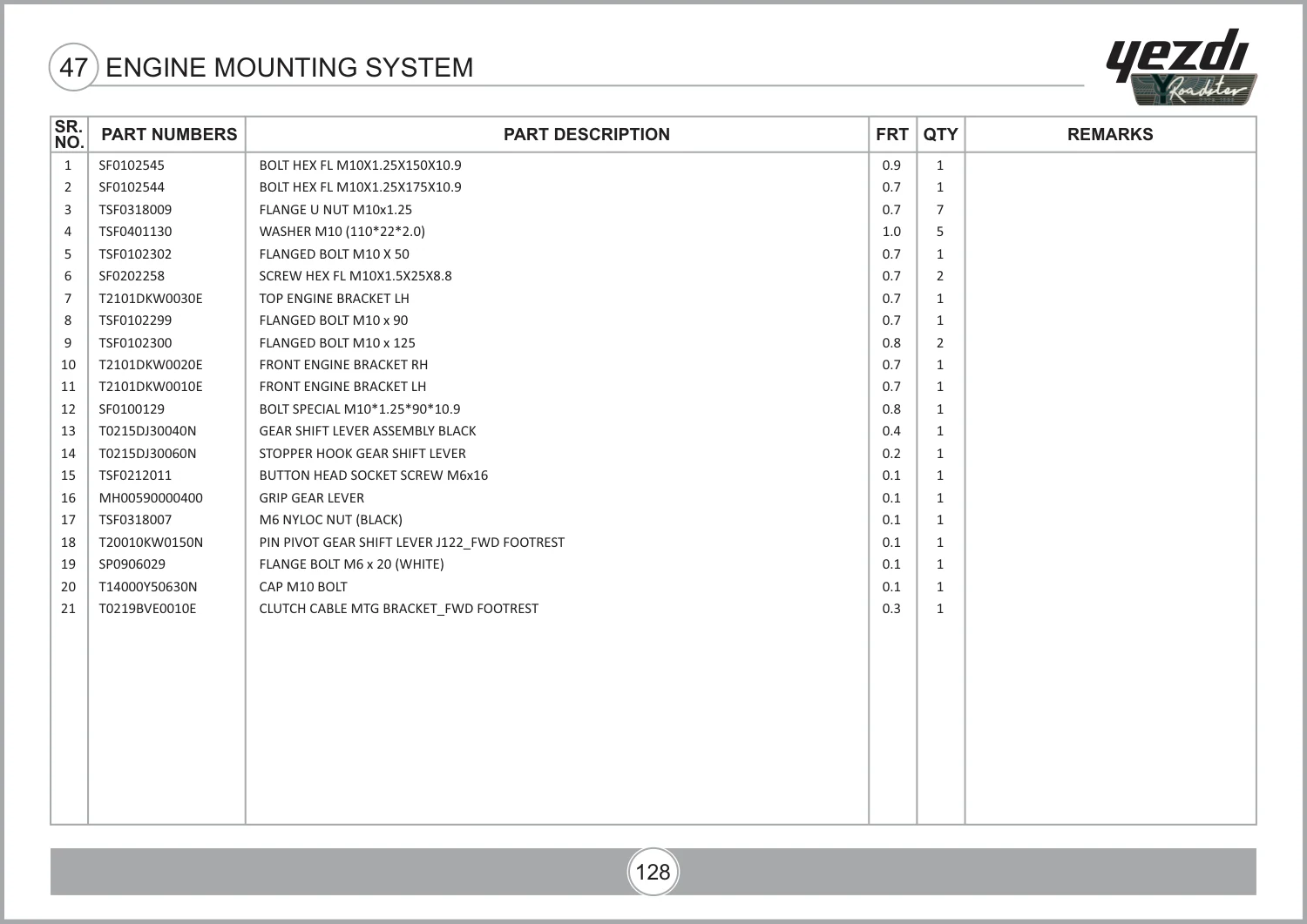

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 139, parts table page 140. View original parts table ↗
