Yezdi Roadster · ASSEMBLY 33 · REV 22
Rear Fender Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster · Rev 22 · p. 95Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 25 | Plastic Rivet Dia 7.0 MmT13000B10250N | 2 | |
| 26 | Rear Mudguard Met Silver Ford 63T1307AJ20080F | 1 | |
| 26.1 | Rear Mudguard Metallic Gun MetalT1307AJ20080U | 1 | |
| 26.2 | Rear Mudguard BlackT1307AJ20080E | 1 | |
| 26.3 | Rear Mudguard Gloss BlackT1307AJ20080H | 1 | |
| 27 | Rear Mudguard Mounting Bracket LH J201T1307AJ20090N | 1 | |
| 28 | Rear Mudguard Mounting Bracket RH J201T1307AJ20100N | 1 | |
| 28.1 | Rear Mudguard Mtg Bracket RH (V2 Version) Fwd FootrestT13070J20170N | 1 | |
| 29 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 4 | |
| 30 | Nut Flange 6Mm(White)65538380 | 4 | |
| 31 | Duel Lock 15X15T08000B10320N | 8 | |
| 32 | Side Reflex Reflector LumaxT1501FB10020N | 2 | |
| 33 | Cover Rear Number Plate BracketT13030KW0010N | 1 | |
| 34 | Frame Cover RH Fwd FootrestT13070KW0220N | 1 | |
| 35 | Frame Cover LH Fwd FootrestT13070KW0210N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

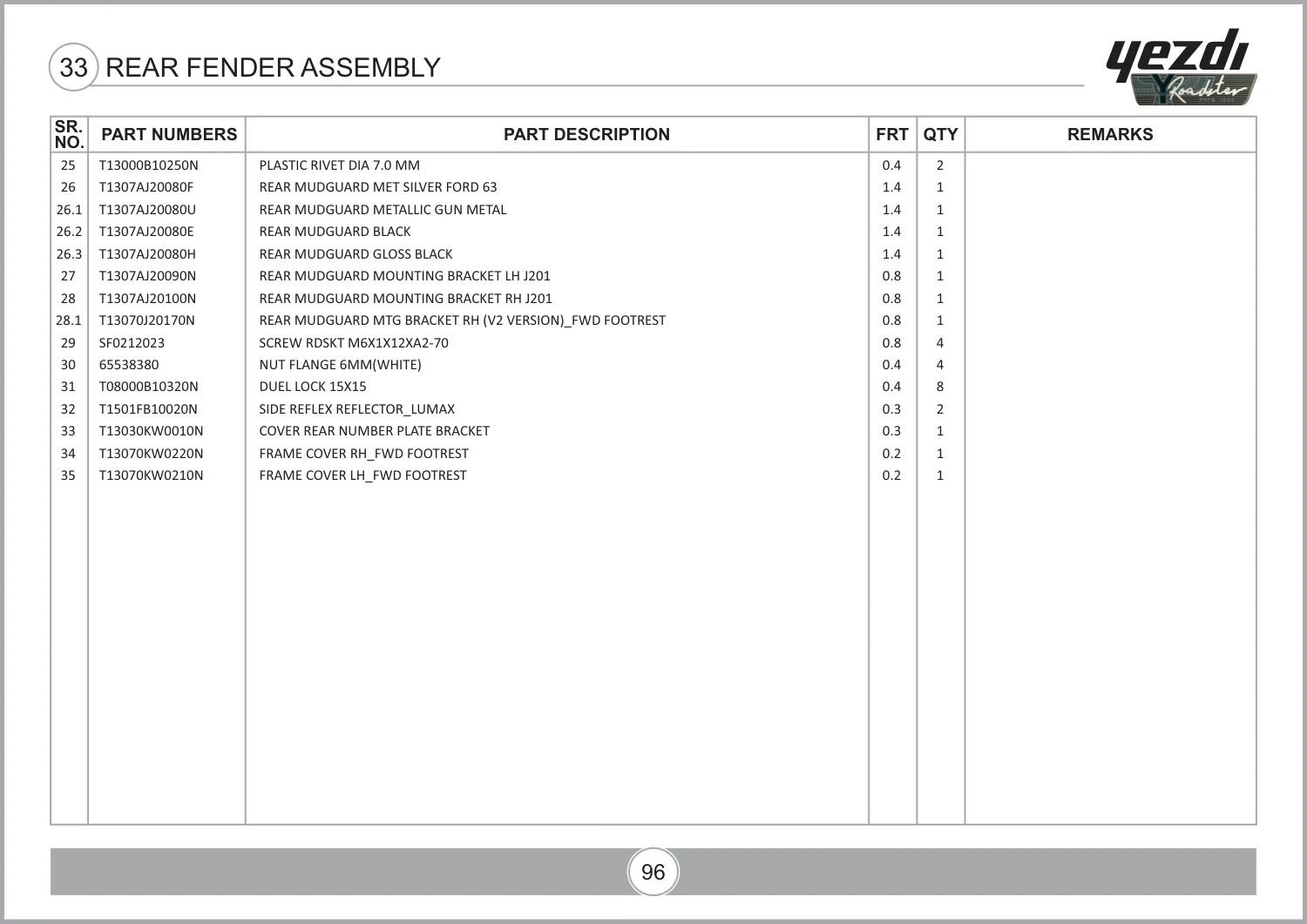

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 107, parts table page 108. View original parts table ↗
