Yezdi Roadster · ASSEMBLY 52 · REV 22
Electronic Fuel Injection (EFI) Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Roadster · Rev 22 · p. 141Original parts list ↗
Parts in this drawing
22 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Metal FlangeT10050KW0050N | 1 | |
| 2 | Fuel Pump Rubber GasketT10050KW0060N | 1 | |
| 3 | Fuel FilterT10050KW0040N | 1 | |
| 4 | Fuel PumpT10050J20010N | 1 | |
| 5 | Ignition Coil With CableT1502CKE0050N | 1 | |
| 6 | Electronic Control Unit - OBD-1T1502GJ20010N | 1 | |
| 6.1 | Electronic Control Unit - OBD-2AT1502GJ20020N | 1 | |
| 7 | Fuel Sensor UnitT1501PKW0010N | 1 | |
| 8 | Rubber GasketT1501PKW0040N | 1 | |
| 9 | Flanged Head Bolt-Sh M5X12TSF0102272 | 4 | |
| 10 | Hex Flanged Bolt M5X18SF0102046 | 4 | |
| 11 | Lambda SensorT15000Y50020N | 1 | |
| 12 | Throttle Body Assembly (38 Dia)T0102HY50010N CUT OFF - MZDJ21C16P1B18810 | 1 | |
| 12.1 | Throttle Body Assembly Type B (38 Dia)T0102HY50050N FIT FROM - MZDJ21C16P1B18811 | 1 | |
| 13 | Fastner-MtbT1501PKW0050N | 4 | |
| 14 | Fuel Injector CapT1501PKW0020E | 1 | |
| 15 | Fixing Injector Clip (Dellorto)T0102BKE0050N | 1 | |
| 16 | Fuel Injector Throttle BodyT0102HY50020N | 1 | |
| 17 | Cable Bracket Throttle BodyT0102HKW0040N | 1 | |
| 18 | Iacv Bracket Throttle BodyT0102HY50030N | 1 | |
| 19 | Iacv Y501T0102HY50040N | 1 | |
| 20 | Kit 3 In 1 Sensor Throttle Body Y501T0102HY50060N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

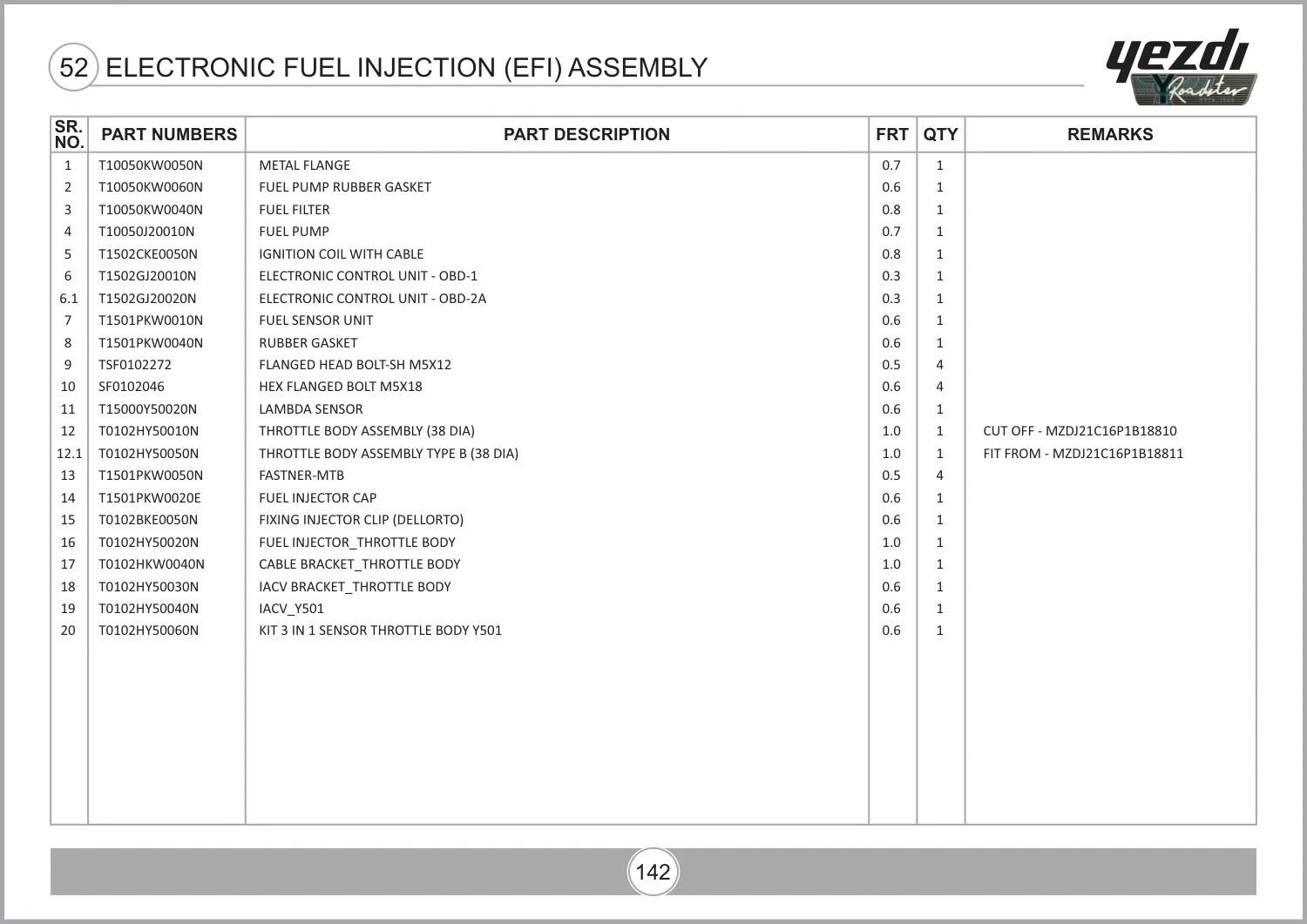

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 153, parts table page 154. View original parts table ↗
