Yezdi Roadster · ASSEMBLY 16 · REV 22

Crankshaft And Piston

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Crankshaft And Piston exploded assembly diagram, catalogue page 47

Yezdi Roadster · Rev 22 · p. 47Original parts list ↗

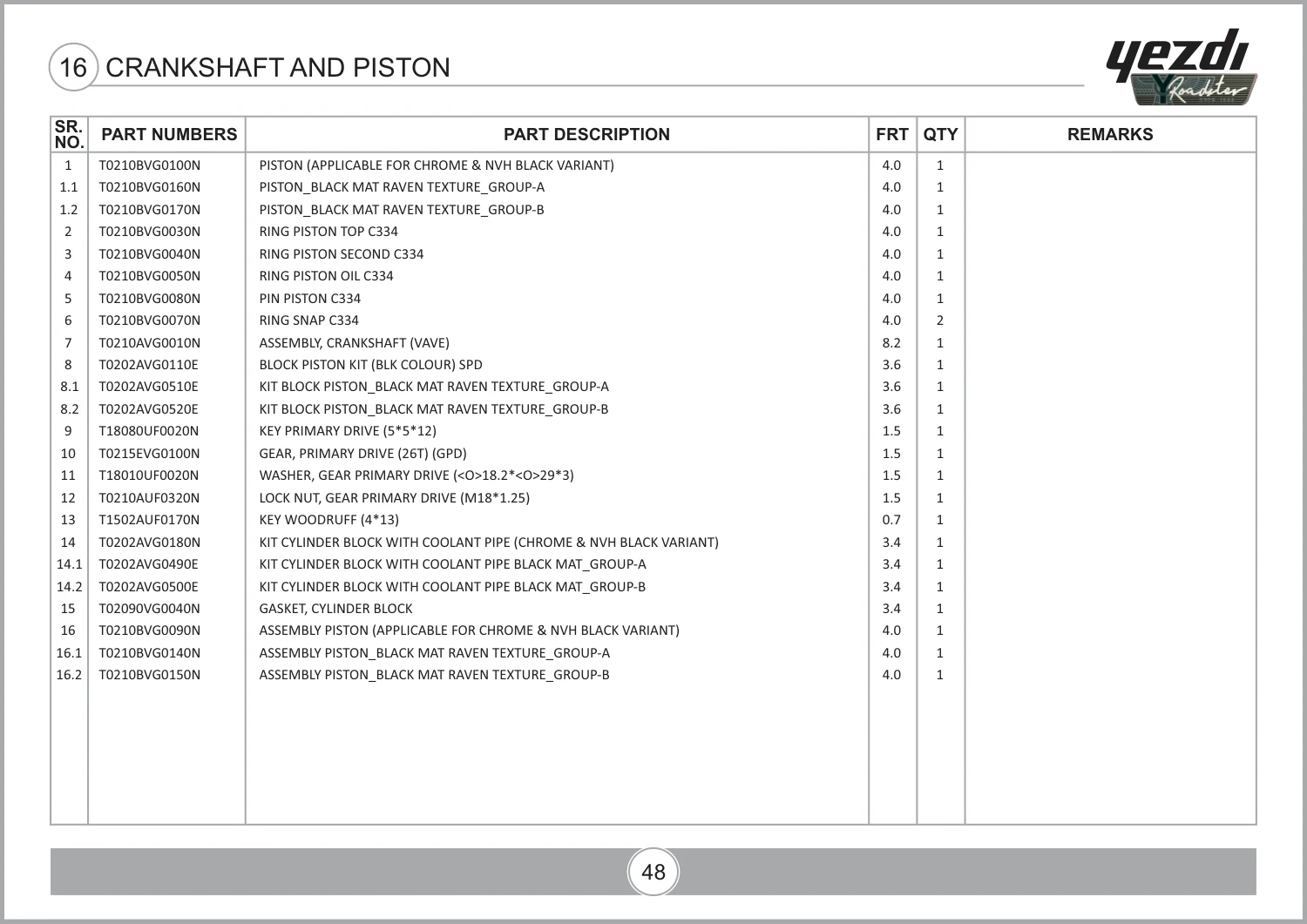

Parts in this drawing

24 entries

Ref.	Part name / number	Assembly qty.	Action
1	Piston (Applicable For Chrome & NVH Black Variant)T0210BVG0100N	1	Enquiry ↗
1.1	Piston Black Mat Raven Texture Group-AT0210BVG0160N	1	Enquiry ↗
1.2	Piston Black Mat Raven Texture Group-BT0210BVG0170N	1	Enquiry ↗
2	Ring Piston Top C334T0210BVG0030N	1	Enquiry ↗
3	Ring Piston Second C334T0210BVG0040N	1	Enquiry ↗
4	Ring Piston Oil C334T0210BVG0050N	1	Enquiry ↗
5	Pin Piston C334T0210BVG0080N	1	Enquiry ↗
6	Ring Snap C334T0210BVG0070N	2	Enquiry ↗
7	Assembly, Crankshaft (Vave)T0210AVG0010N	1	Enquiry ↗
8	Block Piston Kit (Blk Colour) SpdT0202AVG0110E	1	Enquiry ↗
8.1	Kit Block Piston Black Mat Raven Texture Group-AT0202AVG0510E	1	Enquiry ↗
8.2	Kit Block Piston Black Mat Raven Texture Group-BT0202AVG0520E	1	Enquiry ↗
9	Key Primary Drive (5512)T18080UF0020N	1	Enquiry ↗
10	Gear, Primary Drive (26T) (Gpd)T0215EVG0100N	1	Enquiry ↗
11	Washer, Gear Primary Drive (<O>18.2<O>293)T18010UF0020N	1	Enquiry ↗
12	Lock Nut, Gear Primary Drive (M18*1.25)T0210AUF0320N	1	Enquiry ↗
13	Key Woodruff (4*13)T1502AUF0170N	1	Enquiry ↗
14	Kit Cylinder Block With Coolant Pipe (Chrome & NVH Black Variant)T0202AVG0180N	1	Enquiry ↗
14.1	Kit Cylinder Block With Coolant Pipe Black Mat Group-AT0202AVG0490E	1	Enquiry ↗
14.2	Kit Cylinder Block With Coolant Pipe Black Mat Group-BT0202AVG0500E	1	Enquiry ↗
15	Gasket, Cylinder BlockT02090VG0040N	1	Enquiry ↗
16	Assembly Piston (Applicable For Chrome & NVH Black Variant)T0210BVG0090N	1	Enquiry ↗
16.1	Assembly Piston Black Mat Raven Texture Group-AT0210BVG0140N	1	Enquiry ↗
16.2	Assembly Piston Black Mat Raven Texture Group-BT0210BVG0150N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 59, parts table page 60. View original parts table ↗
