Yezdi Roadster · ASSEMBLY 46 · REV 22

Frame Assembly / Frame & Mountings / Side Stand / Grab Handles

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Frame Assembly / Frame & Mountings / Side Stand / Grab Handles exploded assembly diagram, catalogue page 123

Yezdi Roadster · Rev 22 · p. 123Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Frame Kit With Outer Ball RaceT14000J20210N	1	Enquiry ↗
1.1	Frame Kit With Ignition Switch Cover Fwd FootrestT17000J20600N	1	Enquiry ↗
2	Sub Frame AssemblyT08000J20130N	1	Enquiry ↗
3	Pillion Handel LHT08000J20160N	1	Enquiry ↗
4	Pillion Handel RHT08000J20170N	1	Enquiry ↗
5	Screw Socket M6X1X18X8.8XznSF0224020	2	Enquiry ↗
6	Bolt Hex Fl M10X1.25X150X10.9SF0102545	1	Enquiry ↗
7	Washer M10 (10X22X2.0)TSF0401130	6	Enquiry ↗
8	Flange U Nut M10X1.25TSF0318009	3	Enquiry ↗
9	Flange Bolt M10 X 75TSF0102301	2	Enquiry ↗
10	Dual Channel ABS Mounting BracketT08000KW0380N	1	Enquiry ↗
11	Flange Bolt Sh - M6 X 40SP0906032	2	Enquiry ↗
12	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
13	Battery BoxT08000KW0220N	1	Enquiry ↗
14	Battery ClampT08000KW0250N	1	Enquiry ↗
15	Foam Battery ClampT15010KE0840N	1	Enquiry ↗
16	Pad Battery BoxT1503DKE0250N	4	Enquiry ↗
17	Spacer H4 For M6MH01790003300	2	Enquiry ↗
18	Flange Bolt M6X12SP0906041	2	Enquiry ↗
19	Bolt Flange 6X1695701-06016-00	3	Enquiry ↗
20	Horn Mtg Bracket LooseT08000J20220N	1	Enquiry ↗
20.1	Horn Mtg Bracket Loose Jawa Fwd FootrestT08000J20420N	1	Enquiry ↗
21	Screw Rdskt M8X1.25X16Xa2-70SF0212025	1	Enquiry ↗
21.2	Screw Rdskt M8X1.25X15X8.8SF0212042	2	Enquiry ↗
21.3	Screw Rdskt M6X1X12X8.8SF0212037	1	Enquiry ↗
22	Side Stand Switch AssemblyT1501MKW0050N	1	Enquiry ↗
23	Rubber Sleeve , Return SpringT20000KW0140N	1	Enquiry ↗
24	Nyloc Nut (M10 X 1.25P)MF01690000400	1	Enquiry ↗
24.1	Nut Nyloc M10X1.25X11.50X6SF0302158	1	Enquiry ↗
25	Step Bolt Side StandT2302BKW0020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

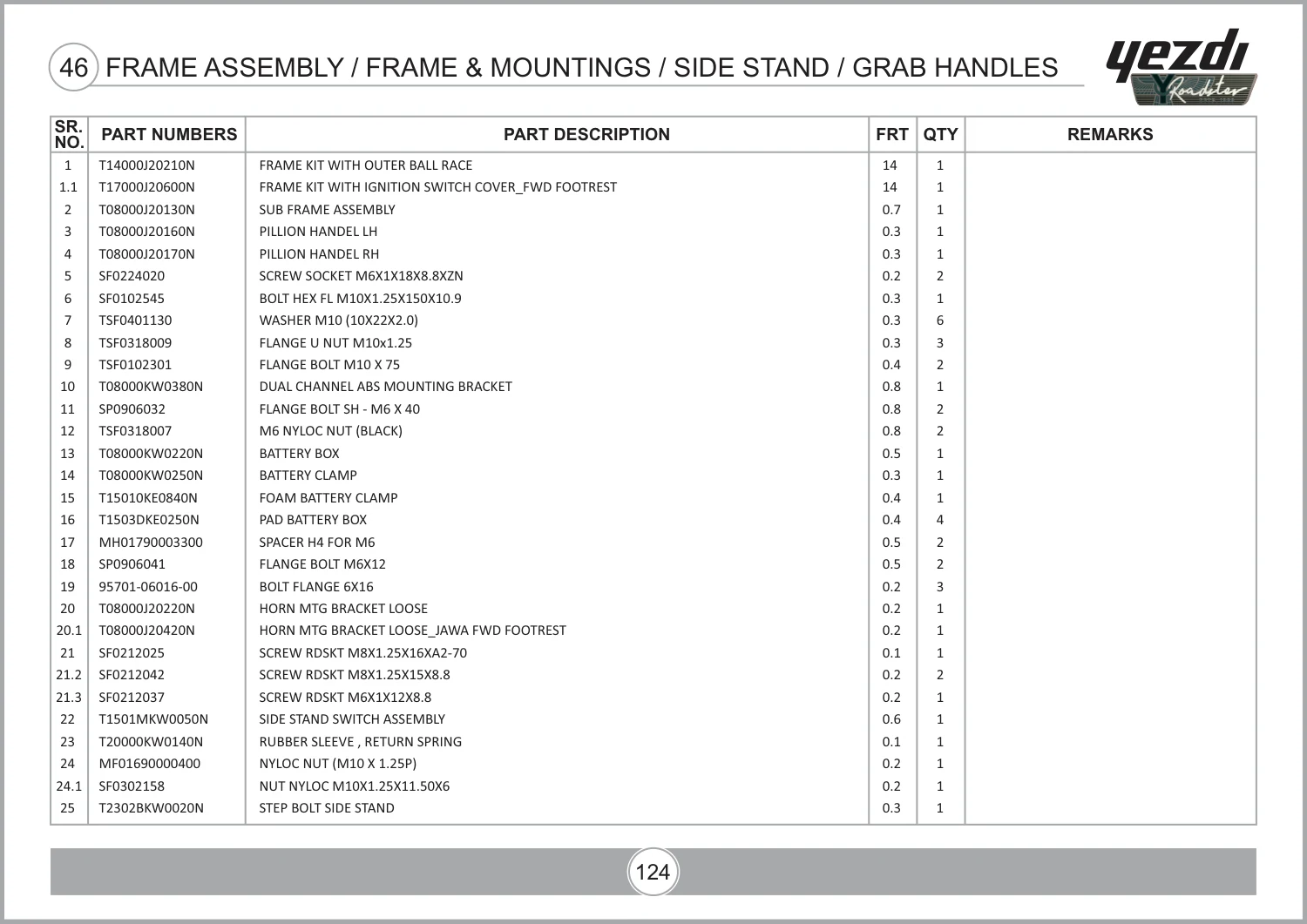

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 135, parts table page 136. View original parts table ↗
