Yezdi Roadster · ASSEMBLY 38 · REV 22

Silencer Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Roadster Silencer Assembly exploded assembly diagram, catalogue page 105

Yezdi Roadster · Rev 22 · p. 105Original parts list ↗

Parts in this drawing

29 entries

Ref.	Part name / number	Assembly qty.	Action
1	Body Muffler Assy Ffm (Short Db) RH ChromeT03040KW0340N	1	Enquiry ↗
1.1	Body Muffler Assy Ffm (Short Db) RH (Black)T03040KW0340E	1	Enquiry ↗
2	Body Muffler Assy Ffm (Short Db) LHT03040KW0360N	1	Enquiry ↗
2.1	Body Muffler Assy Ffm (Short Db) LH (Black)T03040KW0360E	1	Enquiry ↗
3	Header Pipe Assembly RHT0302CKW0030N	1	Enquiry ↗
4	Header Pipe Assembly LHT0302CKW0020N	1	Enquiry ↗
5	Trim Shield LH ChromeT0303AKW0210N	1	Enquiry ↗
5.1	Trim Shield LH (Black)T0303AKW0210E	1	Enquiry ↗
6	Trim Shield RH ChromeT0303AKW0200N	1	Enquiry ↗
6.1	Trim Shield RH (Black)T0303AKW0200E	1	Enquiry ↗
7	Exhaust Flange Top SilverT0304CKW0060N	2	Enquiry ↗
7.1	Exhaust Flange Top BlackT0304CKW0060E	2	Enquiry ↗
8	Exhaust Flange Bottom ChromeT0304CKW0070N	2	Enquiry ↗
8.1	Exhaust Flange Bottom BlackT0304CKW0070E	2	Enquiry ↗
9	Nut Special M8X1.25X17X6SF0300075	4	Enquiry ↗
10	Graphite GasketT0304BKW0020N	2	Enquiry ↗
11	Exhaust ClampT0302CJ30040N	2	Enquiry ↗
12	Screw 6X1690115-G02-0000-IK	2	Enquiry ↗
13	Nut Hfl Ser M10X1.25X10X8SF0322008	2	Enquiry ↗
14	Screw Hex Fl M10X1.25X30X10.9SF0202341	2	Enquiry ↗
15	Exhaust GasketT0304BKW0010N	2	Enquiry ↗
16	Screw Rdskt M5X0.8X8SF0212043	7	Enquiry ↗
16.1	Screw Rdskt M5X0.8X8X8.8 BlackSF0212035	7	Enquiry ↗
17	Washer Plain M5X10X1SF0401445	7	Enquiry ↗
18	Washer M8 (8.4X17X1.6)TSF0401129	4	Enquiry ↗
19	Stud Muffler (M8X48) BSVIT0202BVG0040N	4	Enquiry ↗
20	Socket Head Screw M8X18 BlackSP0224002	4	Enquiry ↗
21	Style Ring ChromeT0303AKW0050N	2	Enquiry ↗
21.1	Style Ring BlackT0303AKW0050E	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

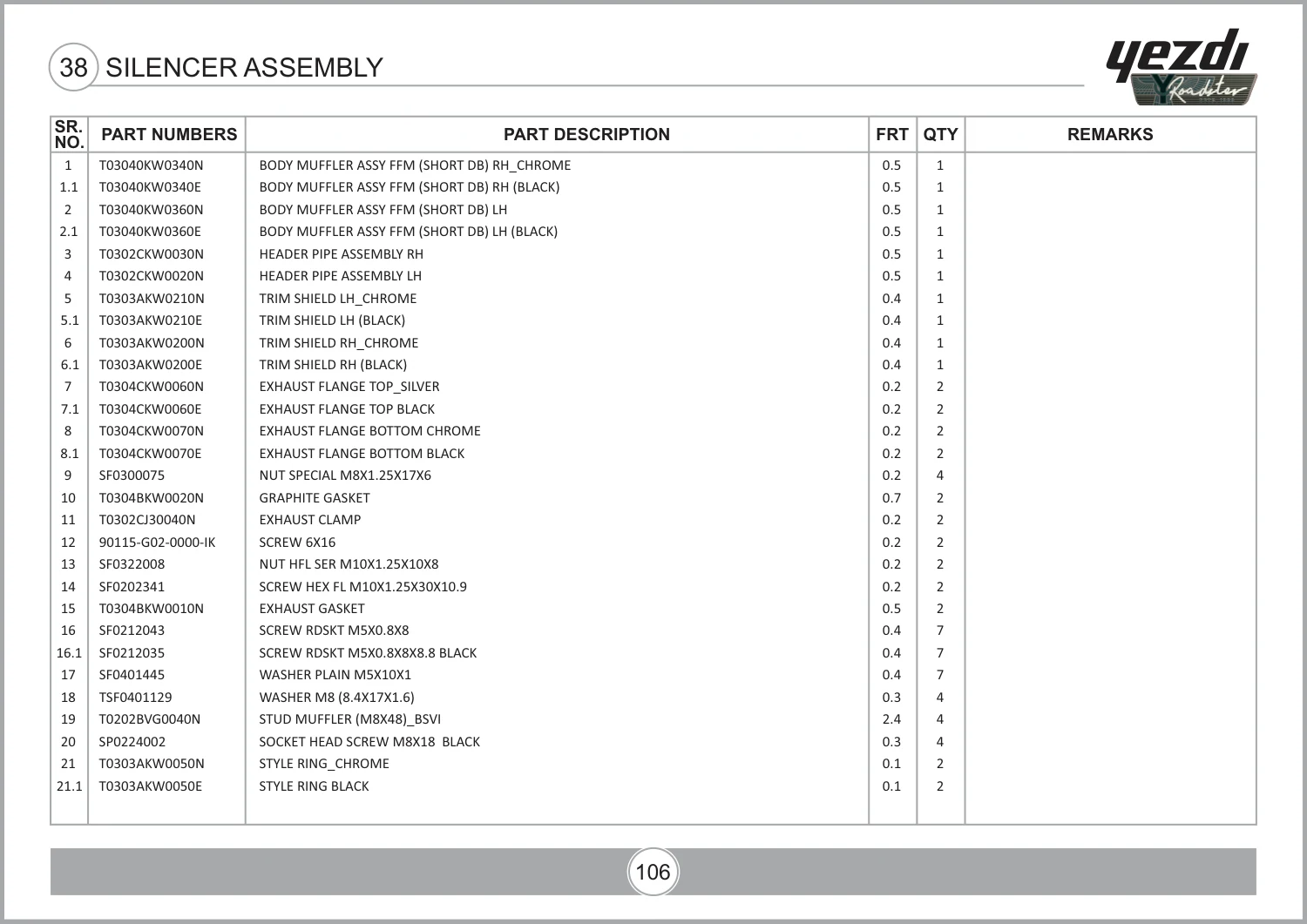

Source: PARTS CATALOGUE - YEZDI ROADSTER_REV-22.pdf · PDF diagram page 117, parts table page 118. View original parts table ↗
