Yezdi Scrambler · ASSEMBLY 2 · REV 19

Crankcase LH

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler Crankcase LH exploded assembly diagram, catalogue page 3

Yezdi Scrambler · Rev 19 · p. 3Original parts list ↗

Parts in this drawing

27 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cclh With Oil Plug & Breather Pipe BlackT0202CVG0240E	1	Enquiry ↗
2	Stud - M10T0202CUF0760N	2	Enquiry ↗
3	Bearing Dg Ball Sr 30X72X19SP010103901	1	Enquiry ↗
4	Bearing Ball Input (Dia15Dia3511)T18050UF0130N	1	Enquiry ↗
5	Bearing Ball Output - One Side Seal (Dia22Dia5014)T18050UF0140N	1	Enquiry ↗
6	Bearing Ball Balancer (6303.C3) (Ø17Ø4714)T18050UF0320N	1	Enquiry ↗
7	Oil Seal, Output Shaft (Dia22Dia347) FkmT18020UF0080N	1	Enquiry ↗
8	Internal Circlip (Ø35*1.75)TSF0602039	1	Enquiry ↗
9	Oil Seal, Lever Shift Shaft (Dia14Dia287) FkmT18020UF0090N	1	Enquiry ↗
10	Bolt, Drain Magnetic - M12X1.5T0202CUF2440N	1	Enquiry ↗
11	Washer -Oil Drain Plug (Dia14.2Dia202) (Common E01)MJ01700006100	1	Enquiry ↗
12	Sliding Contact Neutral SwitchT0217AUF0030N	1	Enquiry ↗
13	Needle Brg Strater Interim Gear (Dia10Dia1410)T18050UF0160N	1	Enquiry ↗
14	Needle Brg (Dia14Dia2012) Shift Shaft LH SideT18050UF0310N	1	Enquiry ↗
15	Bolt, Shifter Stopper - M8X1.25T0202CUF0780N	1	Enquiry ↗
16	Dowel Pin, Hollow Dia12*15T18070UF0030N	2	Enquiry ↗
17	Bolt Hex Fl M6X1X60X8.8SF0102647	3	Enquiry ↗
18	Bolt, Hex Flange Sh - M6X35 (NVH)TSF0102290	1	Enquiry ↗
19	Gear Indicator Switch With O RingT0217AVG0010N	1	Enquiry ↗
20	Oil Seal, Neutral SwitchT18020UF0100N	1	Enquiry ↗
21	Bolt, Hex Flange Sh - M6X20 (Neutral Switch) (NVH)SP0906029	1	Enquiry ↗
22	Bolt Hex Fl M6X1X75X8.8SF0102650	3	Enquiry ↗
23	Bolt Hex Fl M6X1X65X8.8SF0102648	1	Enquiry ↗
24	Gasket Crankcase C334T02090VG0030N	1	Enquiry ↗
25	Bolt, Hex Flange Sh - M6X85 (NVH)SP0906034	2	Enquiry ↗
26	Guage Inspection CoverT0202DVE0240N	1	Enquiry ↗
27	Cclh KitT0202CVG0220E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

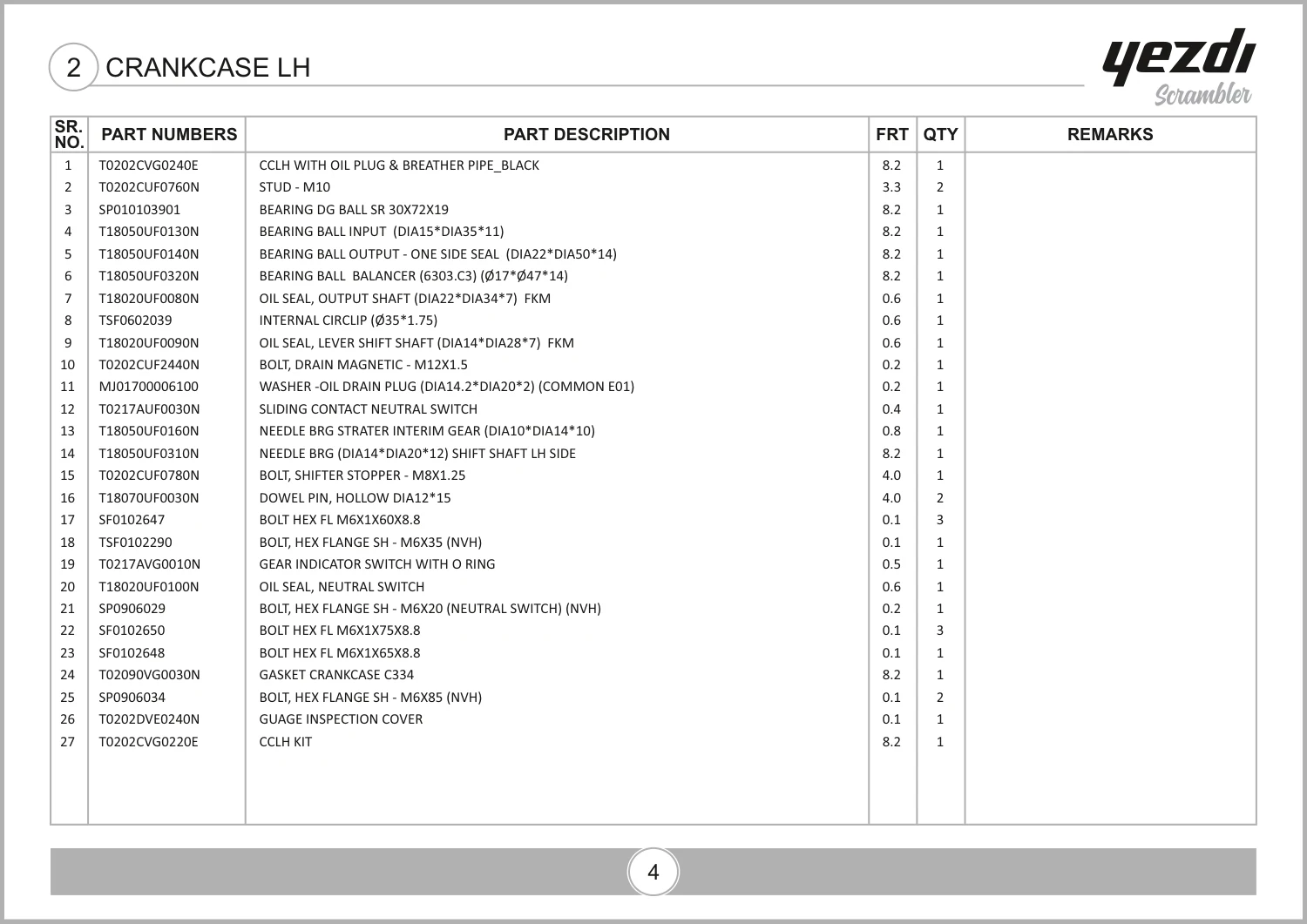

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 15, parts table page 16. View original parts table ↗
