Yezdi Scrambler spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 61 diagram sheets and 1,129 parts entries, including repeated parts used in different assemblies.
Assembly 1
Camchain And Tensioner & Cylinder Head Cover
Page 1 · 19 parts
Assembly 2
Crankcase LH
Page 3 · 27 parts
Assembly 3
Crankcase RH
Page 5 · 19 parts
Assembly 4

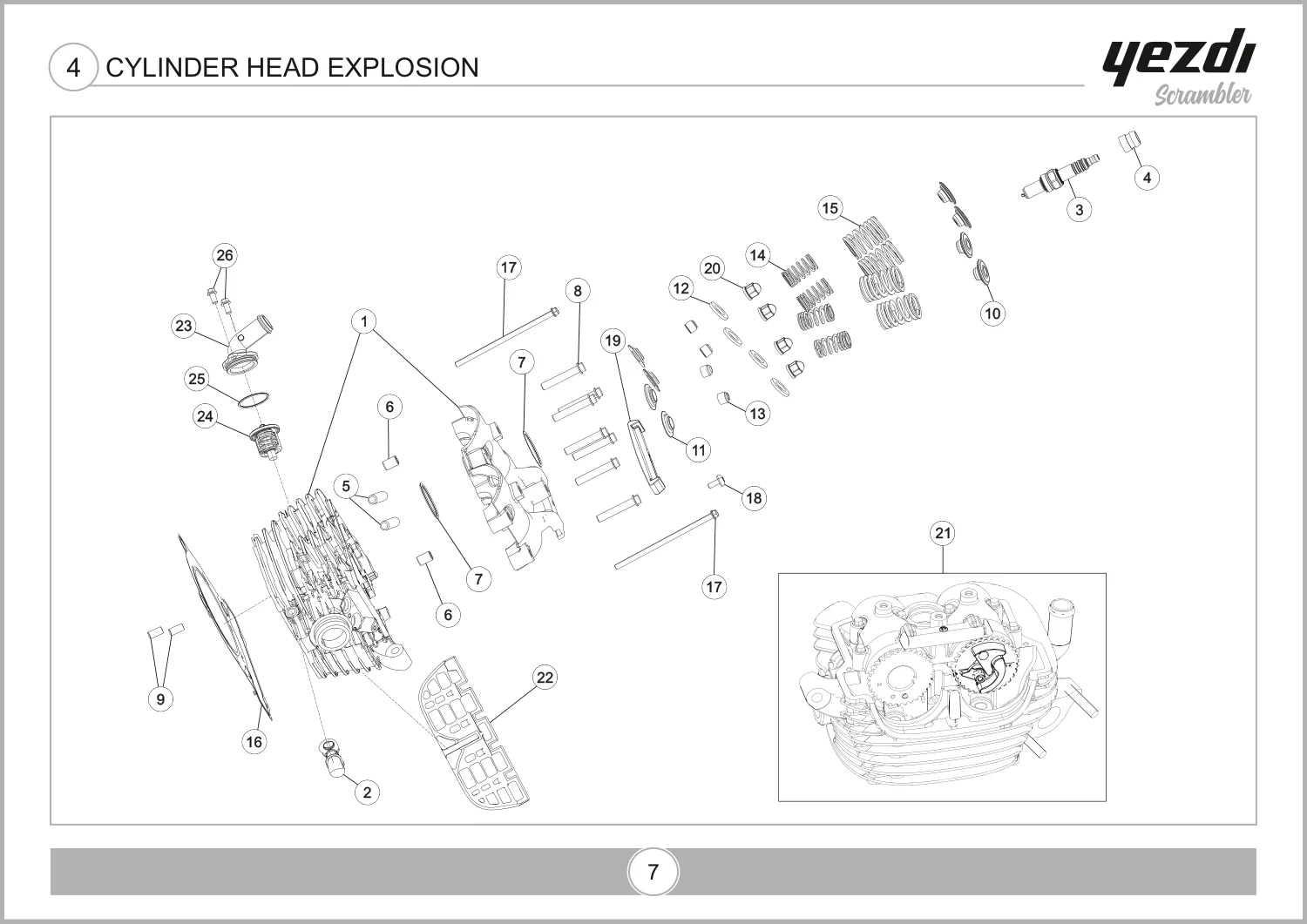

Cylinder Head Explosion
Page 7 · 26 parts
Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 9 · 24 parts
Assembly 6
Magneto Assembly - BSVI
Page 11 · 11 parts
Assembly 7
Magneto Assembly - OBD-II
Page 13 · 11 parts
Assembly 8
Starting System & Starter Motor
Page 15 · 16 parts
Assembly 9

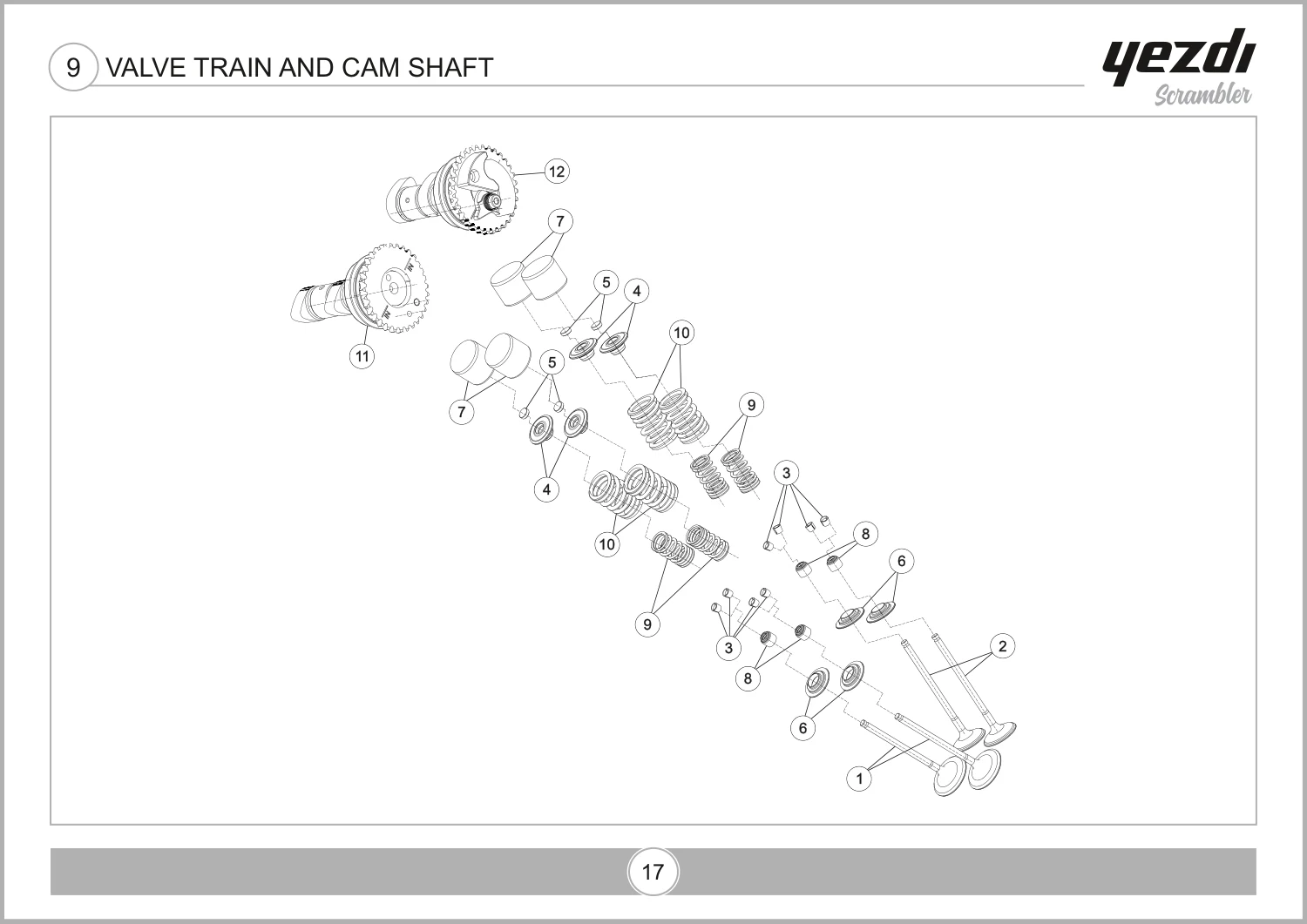

Valve Train And Cam Shaft
Page 17 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 19 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 21 · 2 parts
Assembly 10

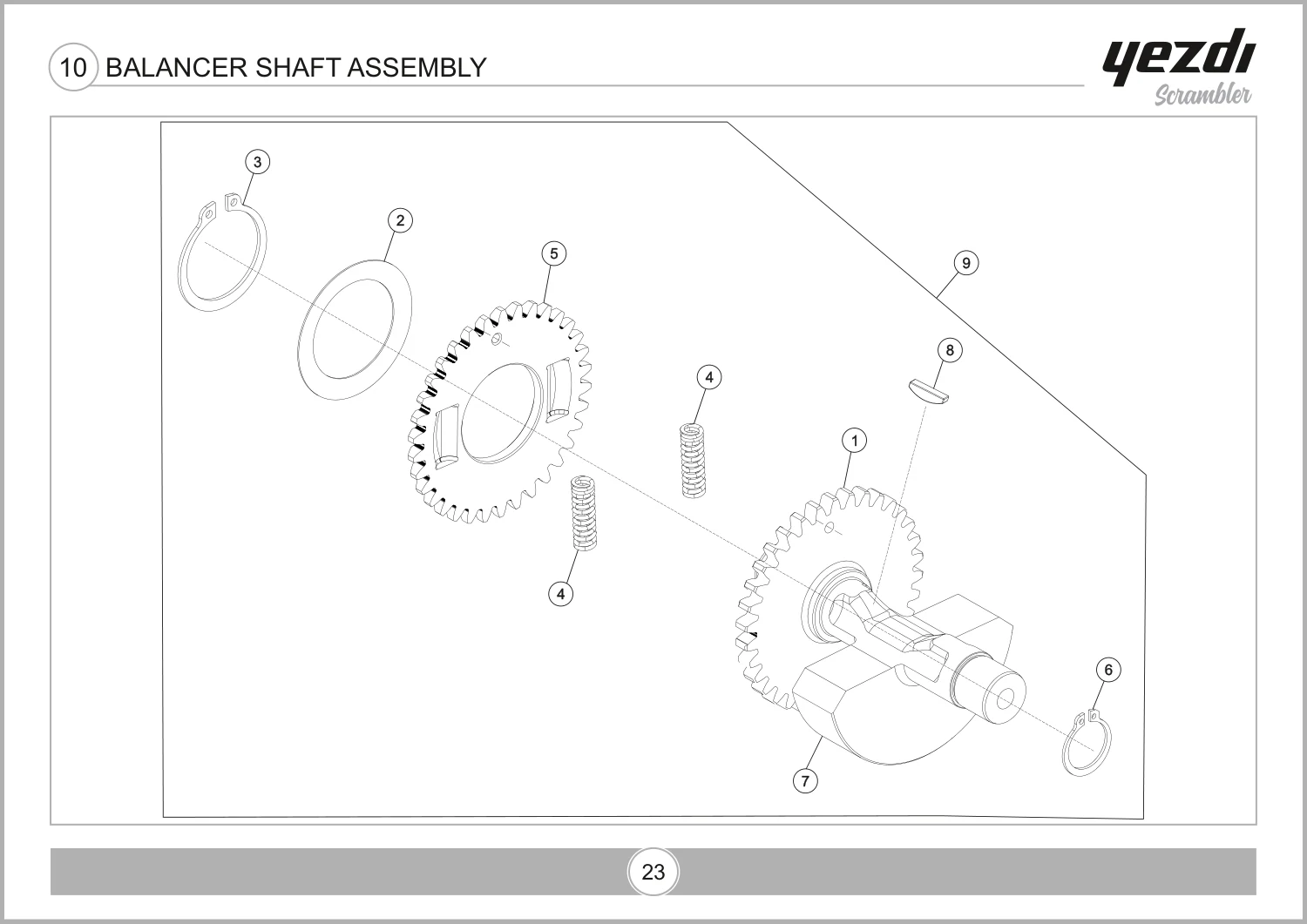

Balancer Shaft Assembly
Page 23 · 9 parts
Assembly 11

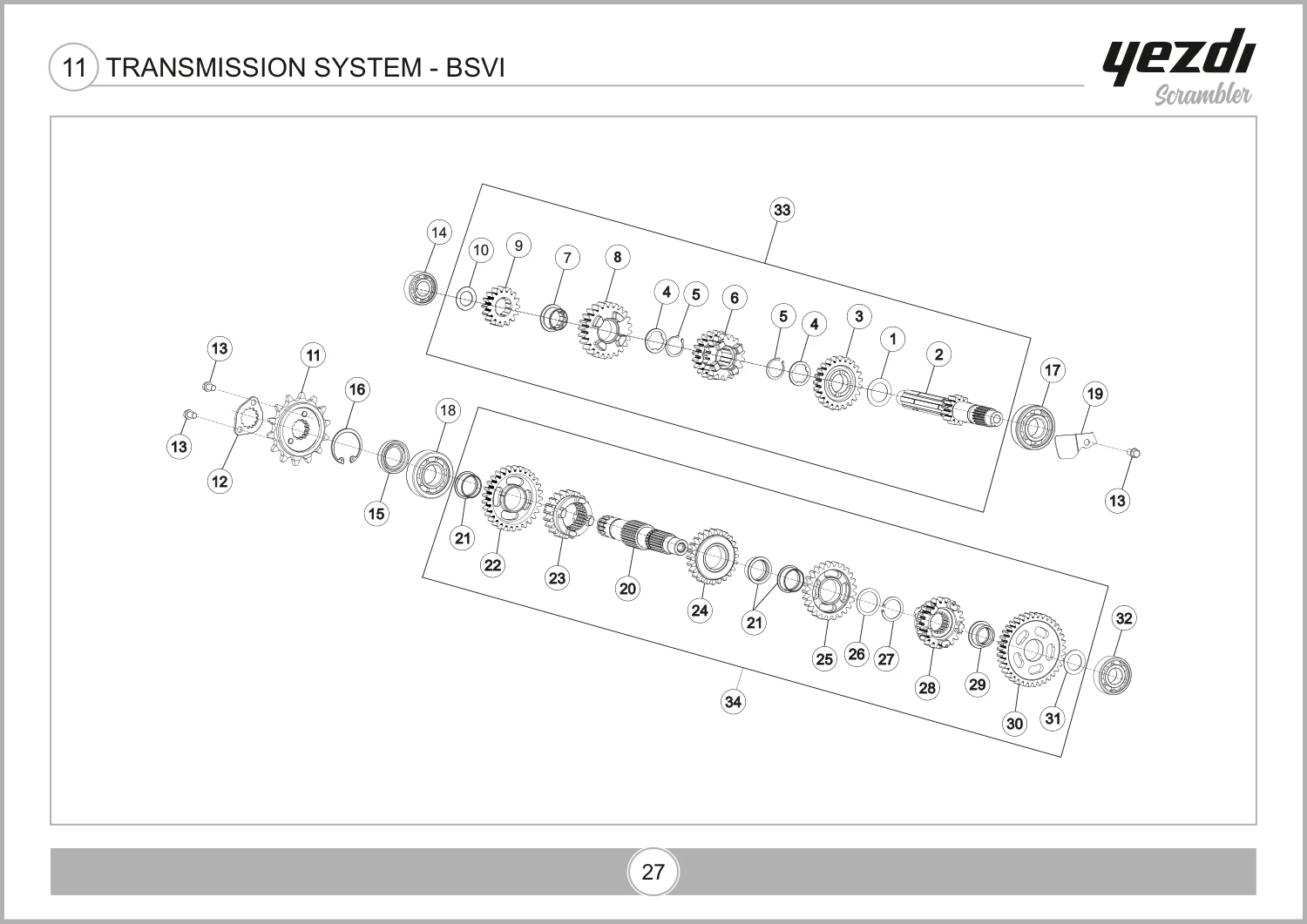

Transmission System - BSVI
Page 25 · 30 parts
Assembly 11
Transmission System - BSVI
Page 27 · 10 parts
Assembly 12
Transmission System - OBD-II
Page 29 · 30 parts
Assembly 12
Transmission System - OBD-II
Page 31 · 10 parts
Assembly 13
R Crankcase Cover
Page 33 · 30 parts
Assembly 13
R Crankcase Cover
Page 35 · 14 parts
Assembly 14
Crankshaft And Piston
Page 37 · 16 parts
Assembly 15
Magneto Cover LH - BSVI
Page 39 · 24 parts
Assembly 16
Magneto Cover LH - OBD II
Page 41 · 24 parts![Conventional - Clutch Assembly [Fitted Till - Mzdy41C16N1F04875] drawing](/jawa-spare/assets/diagrams/yezdi-scrambler-p055.webp)
Assembly 17

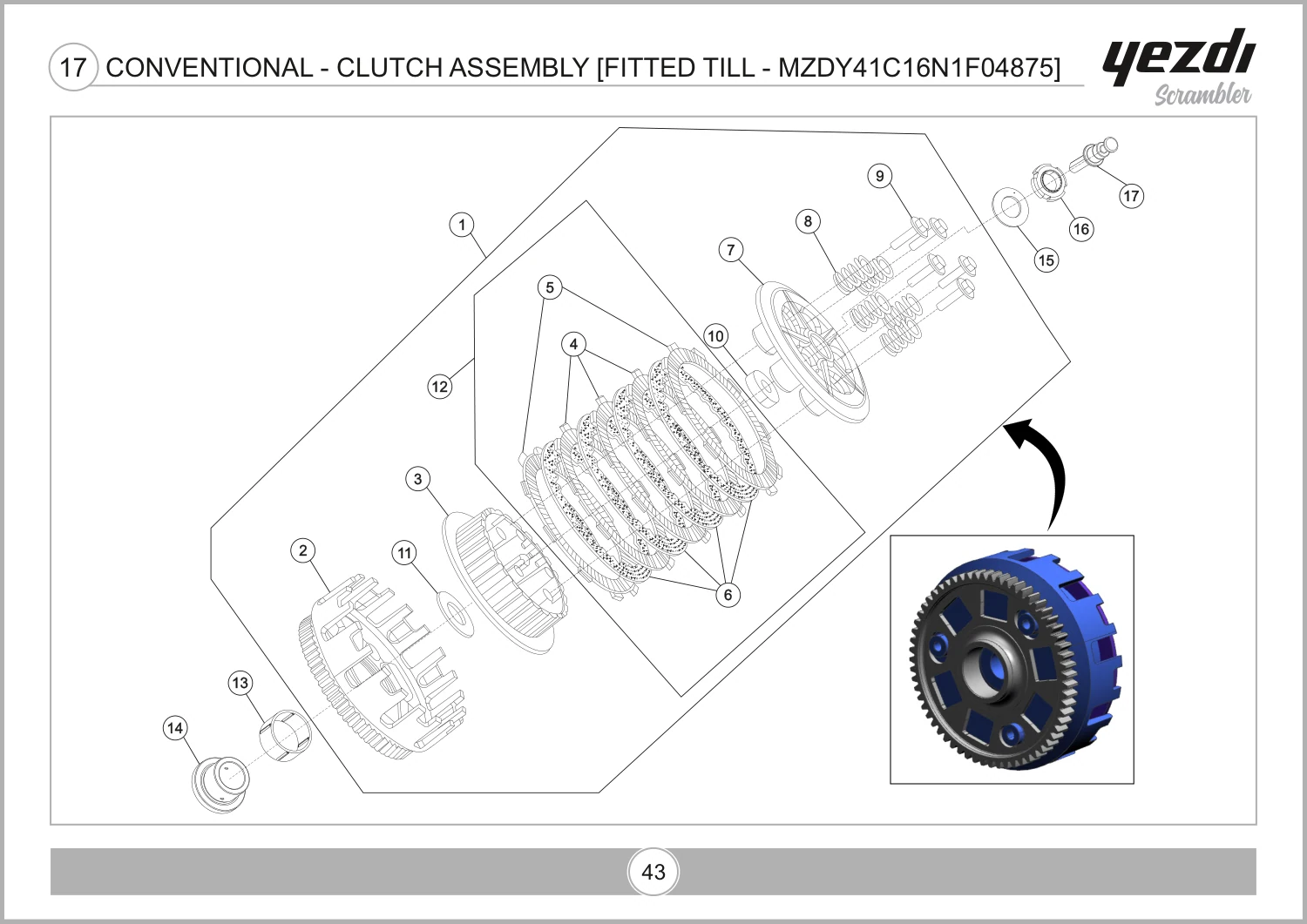

Conventional - Clutch Assembly [Fitted Till - Mzdy41C16N1F04875]
Page 43 · 17 parts![A&S - Clutch Assembly [Fitted From - Mzdy41C16N1F04876] drawing](/jawa-spare/assets/diagrams/yezdi-scrambler-p057.webp)
Assembly 18
A&S - Clutch Assembly [Fitted From - Mzdy41C16N1F04876]
Page 45 · 24 parts
Assembly 19
Evaporative Emission System
Page 47 · 10 parts
Assembly 20
Air Filter Assembly
Page 49 · 28 parts
Assembly 21
Brake System Front
Page 51 · 26 parts
Assembly 22
Brake System Rear
Page 53 · 24 parts
Assembly 23
Anti-Lock Braking System (ABS)
Page 55 · 2 parts
Assembly 24
Rider Footrest Assly LH & RH / Rear Brake Pedal
Page 57 · 27 parts
Assembly 25
Pillion Foot Rest Assembly LH & RH
Page 59 · 18 parts
Assembly 26
Front Wheel Assembly
Page 61 · 19 parts
Assembly 27

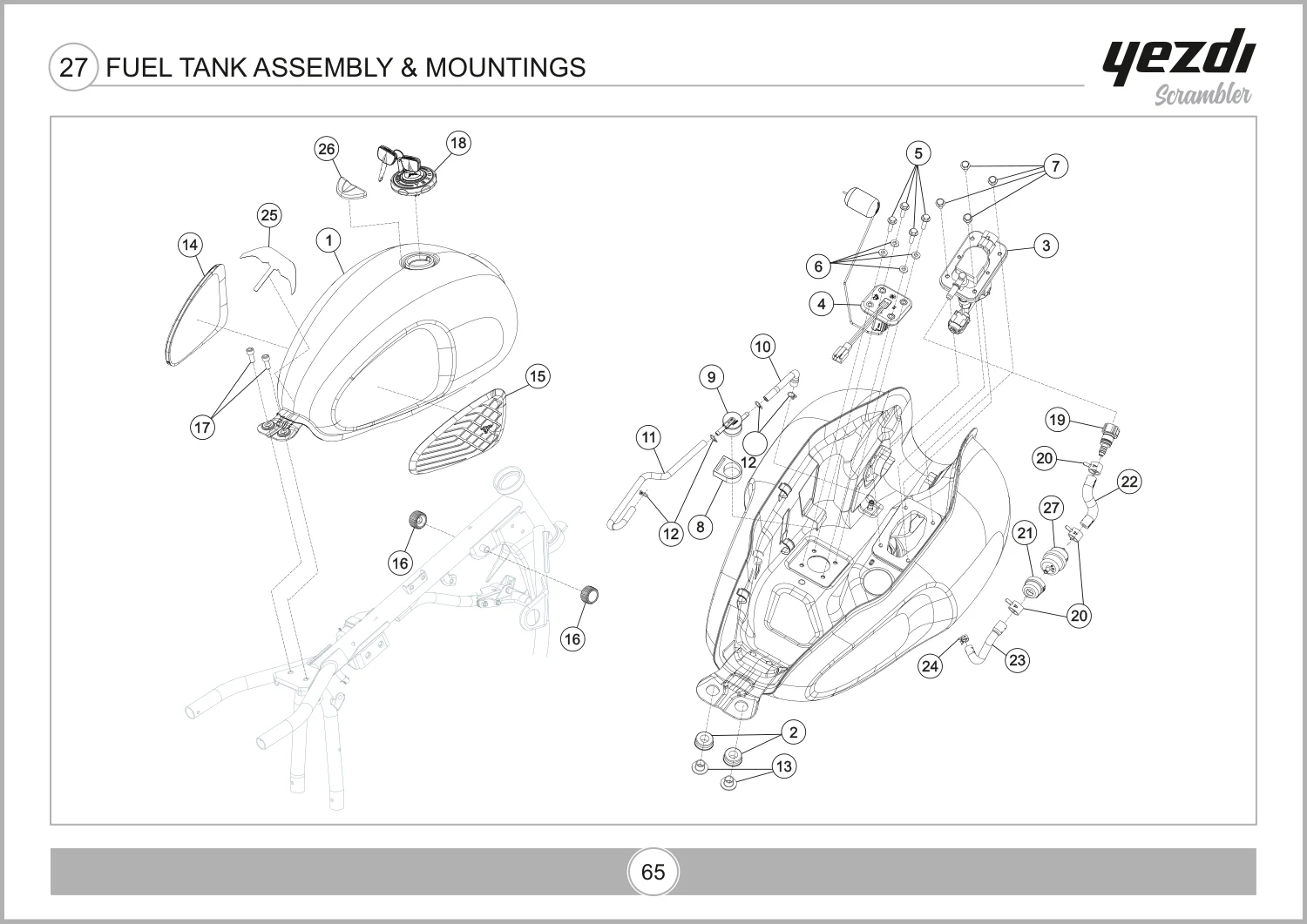

Fuel Tank Assembly & Mountings
Page 63 · 30 parts
Assembly 27
Fuel Tank Assembly & Mountings
Page 65 · 4 parts
Assembly 28
Front Mudguard Assembly
Page 67 · 14 parts
Assembly 29
Radiator & Cooling System (1/2)
Page 69 · 15 parts
Assembly 30
Radiator & Cooling System (2/2)
Page 71 · 12 parts
Assembly 31
Rear Fender Assembly (1/2)
Page 73 · 4 parts
Assembly 32
Rear Fender Assembly (2/2)
Page 75 · 29 parts
Assembly 33
Rear Hugger Assembly
Page 77 · 17 parts
Assembly 34
Rear Wheel Assembly
Page 79 · 30 parts
Assembly 34
Rear Wheel Assembly
Page 81 · 2 parts
Assembly 35
Saree Guard And Side Stand
Page 83 · 13 parts
Assembly 36
Seat Assembly
Page 85 · 6 parts
Assembly 37
Silencer Assembly
Page 87 · 30 parts
Assembly 37
Silencer Assembly
Page 89 · 5 parts
Assembly 38
Steering
Page 91 · 11 parts
Assembly 39
Front Fork Assembly
Page 93 · 23 parts
Assembly 40
Front Suspension & Mountings
Page 95 · 15 parts
Assembly 41

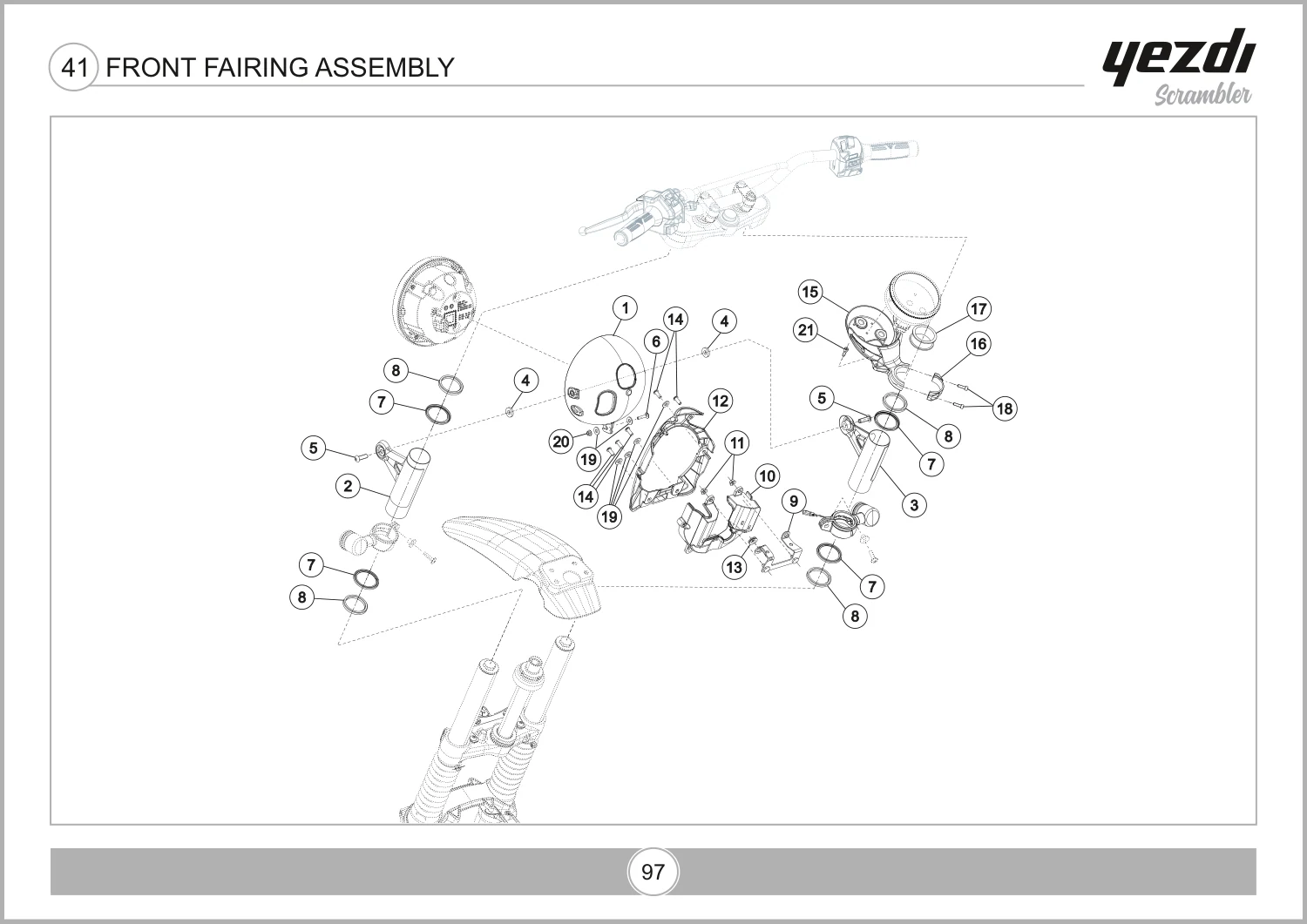

Front Fairing Assembly
Page 97 · 22 parts
Assembly 42
Side Panel LH, RH Assy, Lock Set, Owner’S Manual & Tool Kit
Page 99 · 18 parts
Assembly 43
Frame Assembly & Frame Mountings
Page 101 · 22 parts
Assembly 44

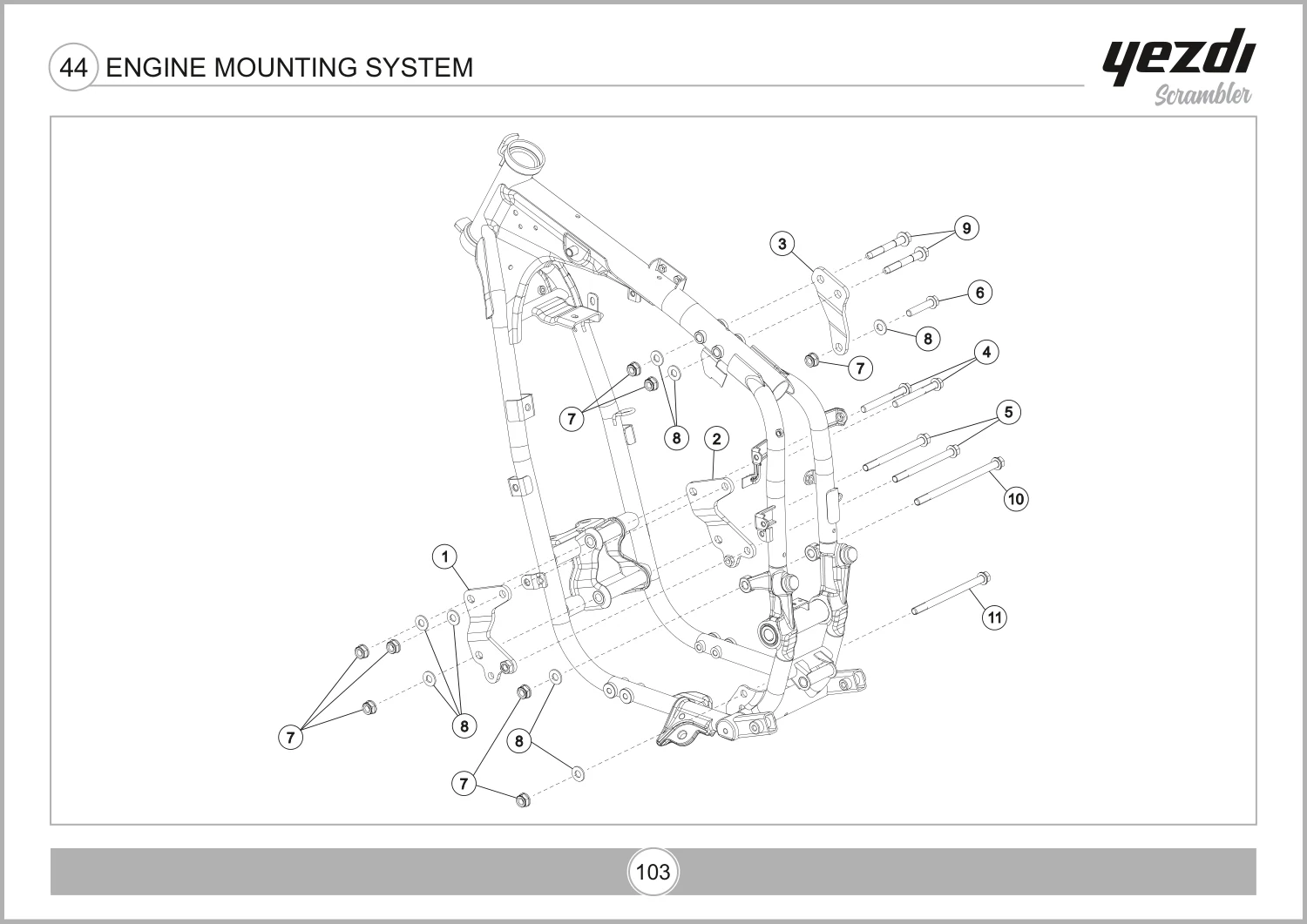

Engine Mounting System
Page 103 · 11 parts
Assembly 45
Handle Bar Assembly
Page 105 · 30 parts
Assembly 45
Handle Bar Assembly
Page 107 · 4 parts
Assembly 46
Swing Arm Assembly And Rear Shock Absorber
Page 109 · 27 parts
Assembly 47

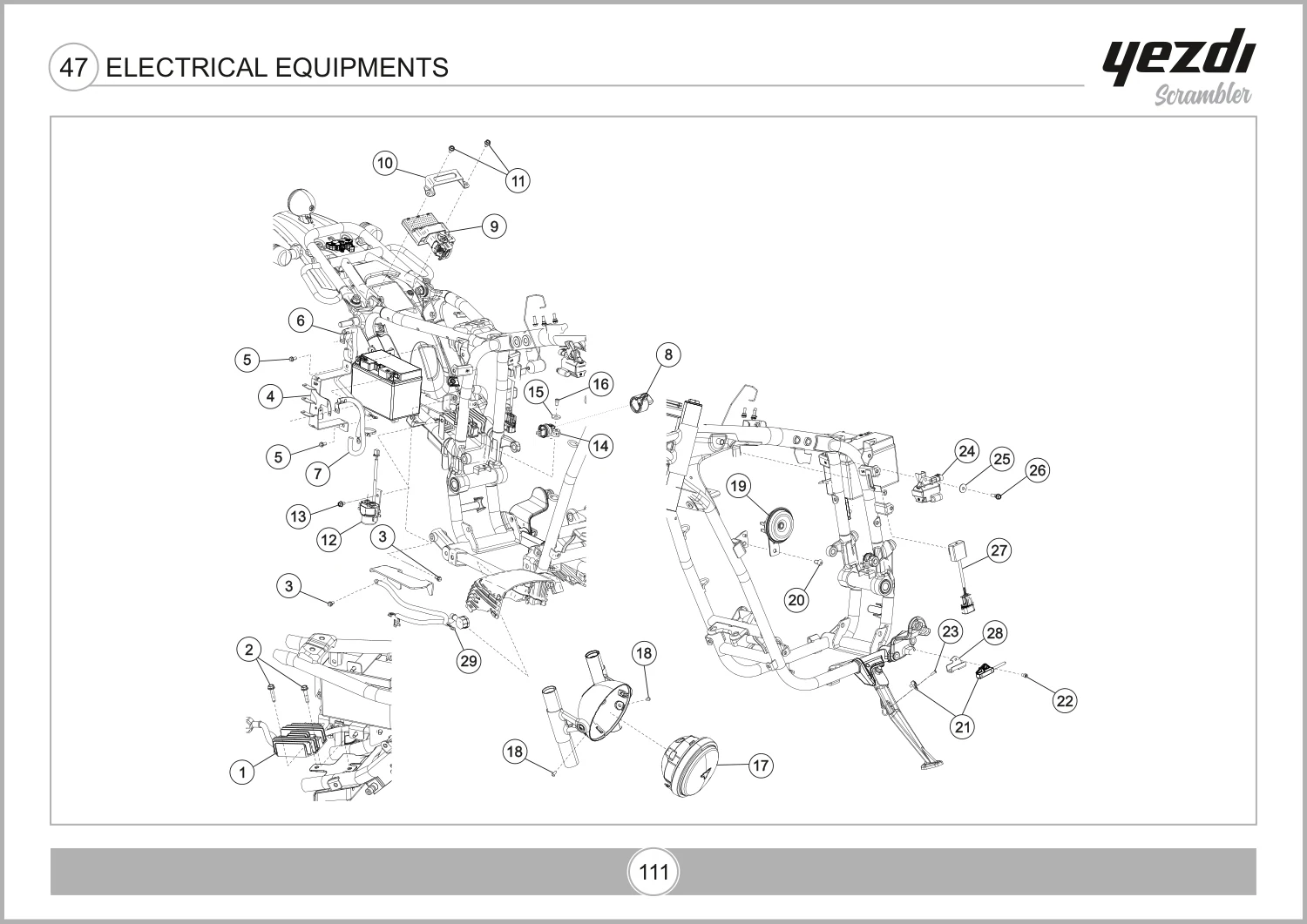

Electrical Equipments
Page 111 · 30 parts
Assembly 48

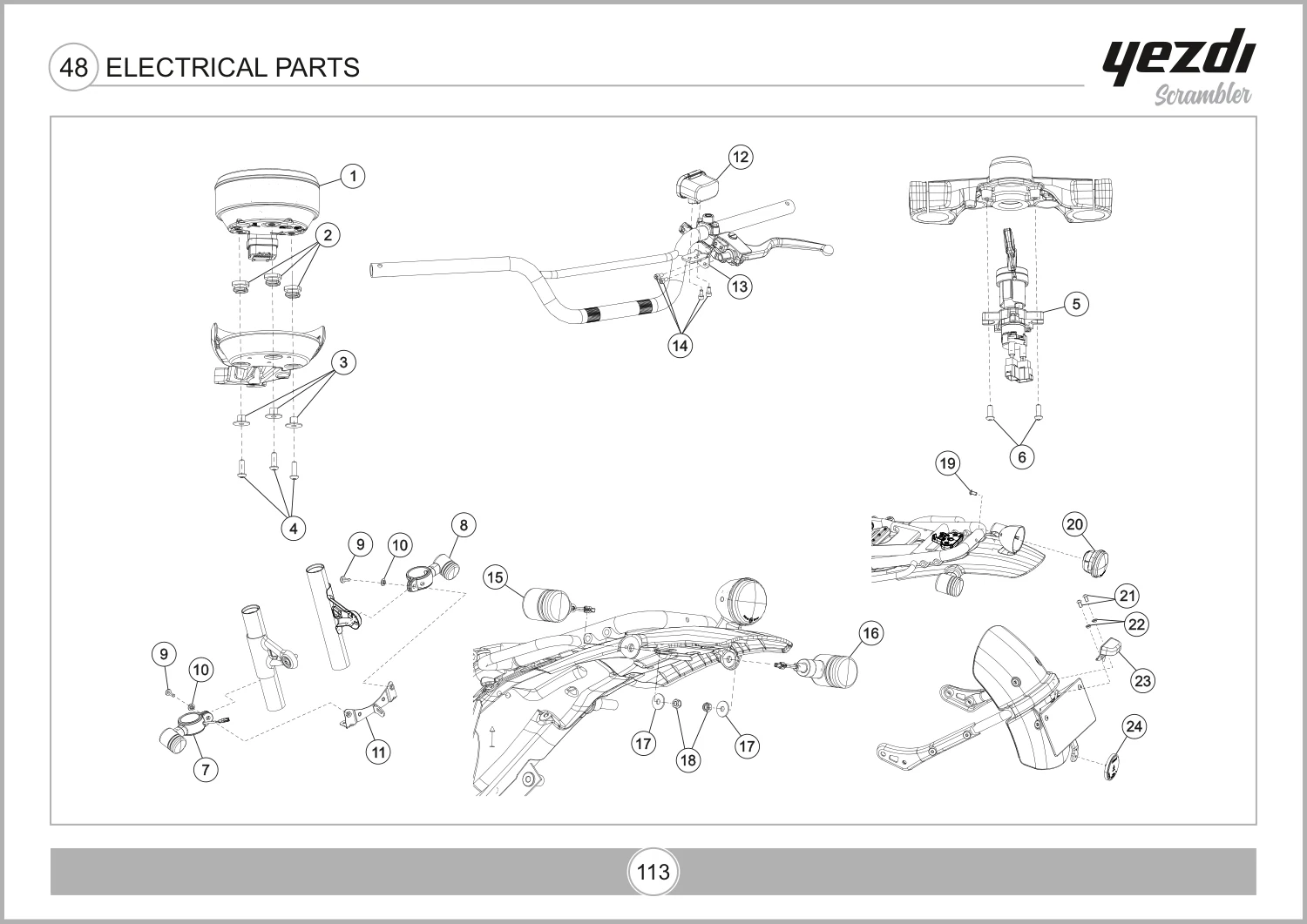

Electrical Parts
Page 113 · 24 parts
Assembly 49
Wiring Harness
Page 115 · 21 parts
Assembly 50
Electronic Fuel Injection (EFI) Assembly
Page 117 · 22 parts
Assembly 51

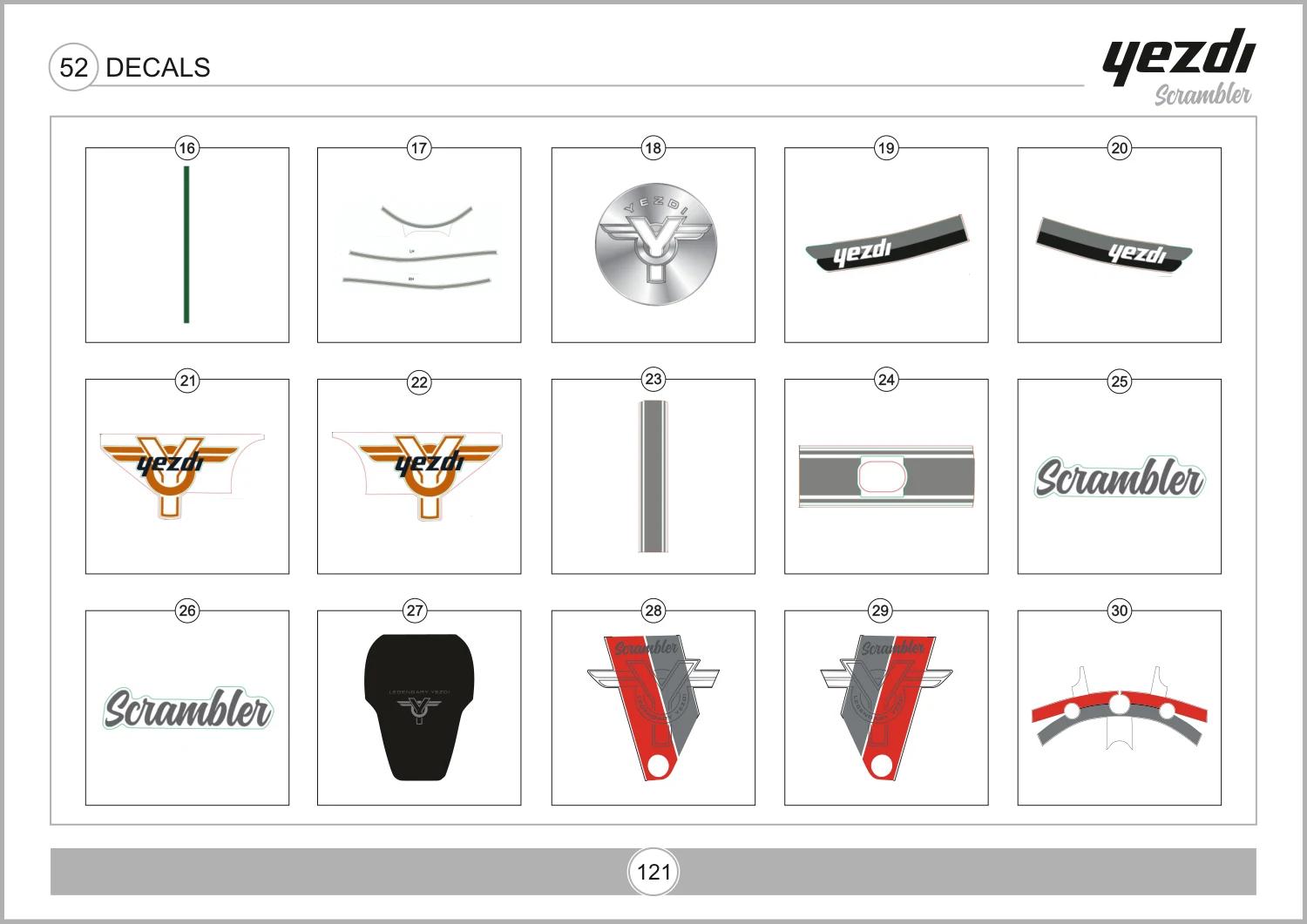

Decals
Page 119 · 15 parts
Assembly 52
Decals
Page 121 · 16 partsNo matching assemblies. Try a broader name.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf. Check the BS/OBD and variant notes in each drawing before requesting a part.
