R Crankcase Cover

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler R Crankcase Cover exploded assembly diagram, catalogue page 33

Yezdi Scrambler · Rev 19 · p. 33Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover RH Y5 NVH Black With Oil PlugT0202DVG0910N	1	Enquiry ↗
2	Flange Head Bolt Sh M6X28SF0102034	3	Enquiry ↗
3	Asm Cover RH Y5Y4 NVH BlackT0202DVG0480E	1	Enquiry ↗
4	Oil Seal CrankshaftT18020UF0110N	2	Enquiry ↗
5	Circlip - Oil Seal CrankshaftT0202DUF0750N	1	Enquiry ↗
6	Lens, Oil Level CheckT02090UH0010N	1	Enquiry ↗
7	Wire Clip Glass WindowT0202CUF2410N	1	Enquiry ↗
8	Cap Oil FillerT0203BUF0250N	1	Enquiry ↗
9	O Ring Cap Oil FillerT0209AVN0300N	1	Enquiry ↗
10	Bolt, Hex Flange Sh - M6X25SP0206021	3	Enquiry ↗
11	Cover Oil Filter C300T0202DVE0080N	1	Enquiry ↗
12	Gasket Cover Oil FilterT02090VE0030N	1	Enquiry ↗
13	Plug M8X1.250302AB0560N	1	Enquiry ↗
14	Bolt,Hex Flange Sh - M6X20 (NVH)SP0906029	4	Enquiry ↗
15	Assembly Clutch LifterT0219AUF0010N	1	Enquiry ↗
16	Clutch Lifter SpringT0219AUF0060N	1	Enquiry ↗
17	Selector SealT18020UF0130N	1	Enquiry ↗
18	Needle Roller Bearing (121610)T18050UF0220N	2	Enquiry ↗
19	Asm Cover Coolant PumpT0202DVE0130N	1	Enquiry ↗
20	Asm Service Cover Y5 NVH BlackT0202DVG0500E	1	Enquiry ↗
21	Circlip Int - Lug 25X1.2SF0602068	1	Enquiry ↗
22	Bolt, Hex Flange Sh - M6X65SP0906033	2	Enquiry ↗
23	Bolt Hex Fl M6X1X50X8.8SF0102646	5	Enquiry ↗
24	Flange Bolt M6*10TSF0102281	1	Enquiry ↗
25	Sealing Washer (6.2 X 12 X 2)MJ01700005400	1	Enquiry ↗
26	O-Ring, Cover Coolant PumpT0209BVE0010N	1	Enquiry ↗
27	Oil Filter AssemblyT0203BUF0260N	1	Enquiry ↗
28	Hose Pipe To Cylinder BlockT04000KW0050N	1	Enquiry ↗
29	Spring Band Clamp Dia 24T0401DKE0290N	2	Enquiry ↗
30	Asm Coolant Pump ShaftT0204AVE0070N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

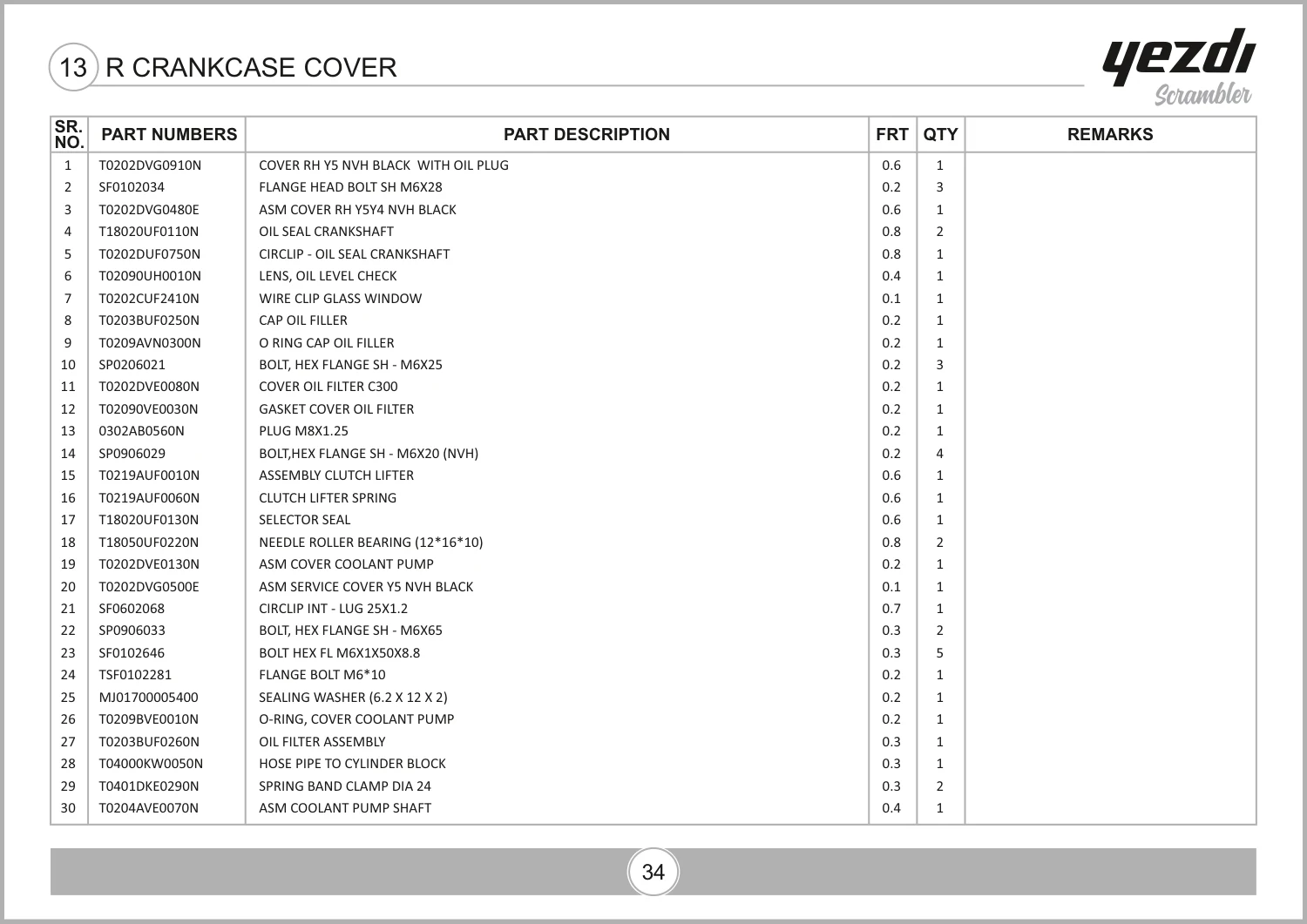

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 45, parts table page 46. View original parts table ↗
