Yezdi Scrambler · ASSEMBLY 44 · REV 19
Engine Mounting System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 103Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Front Engine Bracket LHT2101DKW0010E | 1 | |
| 2 | Front Engine Bracket RHT2101DKW0020E | 1 | |
| 3 | Top Engine Bracket LHT08000Y50010N | 1 | |
| 4 | Bolt Special M10*1.25*90*10.9TSF0102299 | 2 | |
| 5 | Flanged Bolt M10 X 125TSF0102300 | 2 | |
| 6 | Flanged Bolt M10 X 50TSF0102302 | 1 | |
| 7 | Flange U Nut M10X1.25TSF0318009 | 8 | |
| 8 | Washer M10 (10X22X2.0)TSF0401130 | 8 | |
| 9 | Bolt Hex Fl M10X1.25X76X8.8SF0102464 | 2 | |
| 10 | Bolt Hex Fl M10X1.25X175X10.9SF0102544 | 1 | |
| 11 | Bolt Hex Fl M10X1.25X150X10.9SF0102545 | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

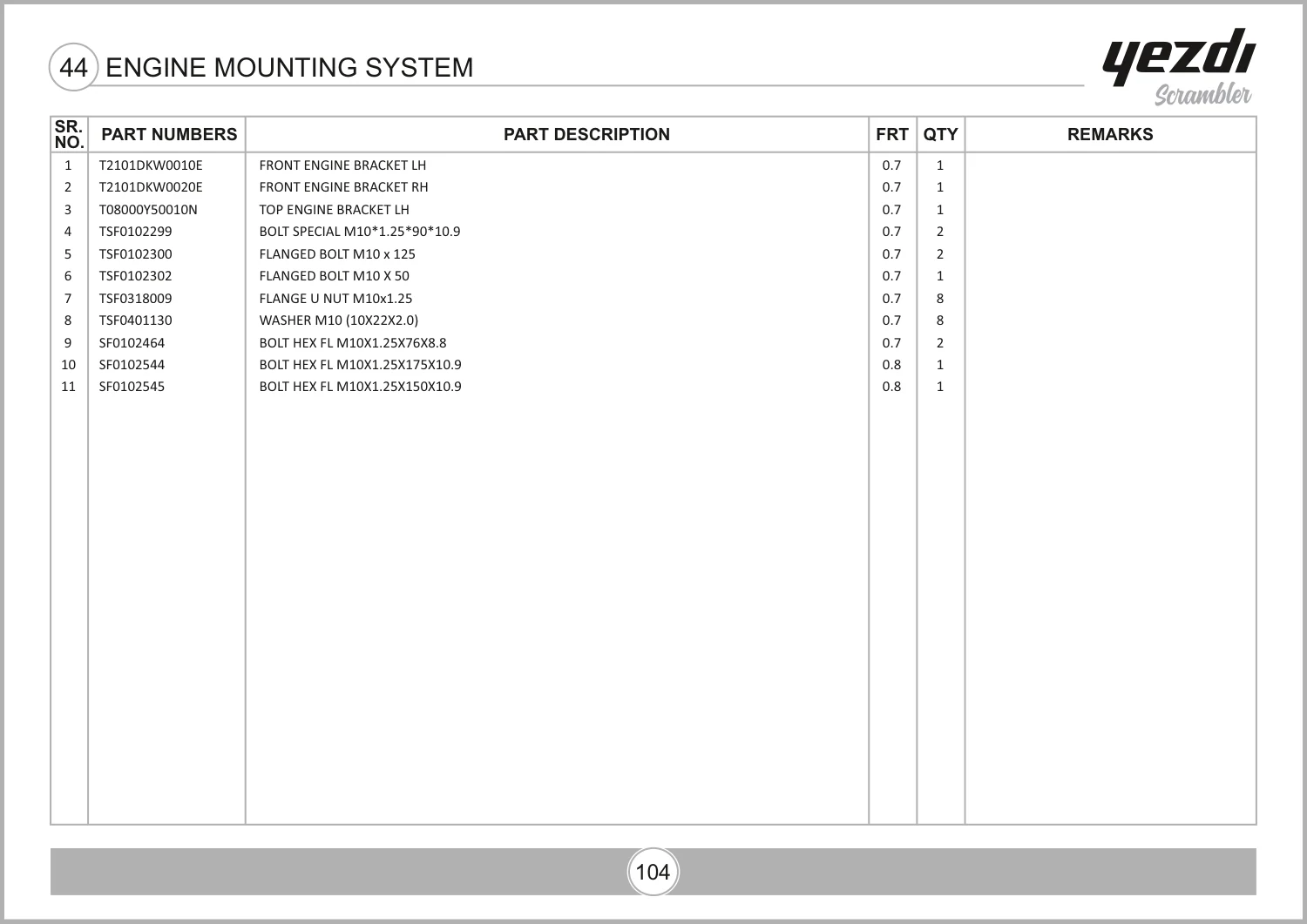

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 115, parts table page 116. View original parts table ↗
