Yezdi Scrambler · ASSEMBLY 30 · REV 19
Radiator & Cooling System (2/2)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 71Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Recovery Tank Cooling SystemT0401DY50020N | 1 | |
| 2 | Cap Coolant TankT0401DY50050N | 1 | |
| 3 | Bash PlateT14050Y50010N | 1 | |
| 4 | Screw Hex Fl M8X1.25X12X8.8SF0202345 | 4 | |
| 5 | Bolt Fl.6 X 12 Black95701-06012-07 | 1 | |
| 6 | Spring Band Clamp Dia 11.5Mm (White)T10050KE0100N | 2 | |
| 7 | Grommet For M6MH01610001700 | 1 | |
| 8 | Hose Breather Recovery TankT04000Y50020N | 1 | |
| 9 | Hose Radiator To Recovery TankT04000Y50010N | 1 | |
| 10 | Grommet M8 Rear Side Cover MtgT13030KM0110N | 1 | |
| 11 | Bolt Hex Fl M8X1.25X30X8.8SF0102183 | 1 | |
| 12 | Collar M8 Rear Side Cover MtgT13030KM0120N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

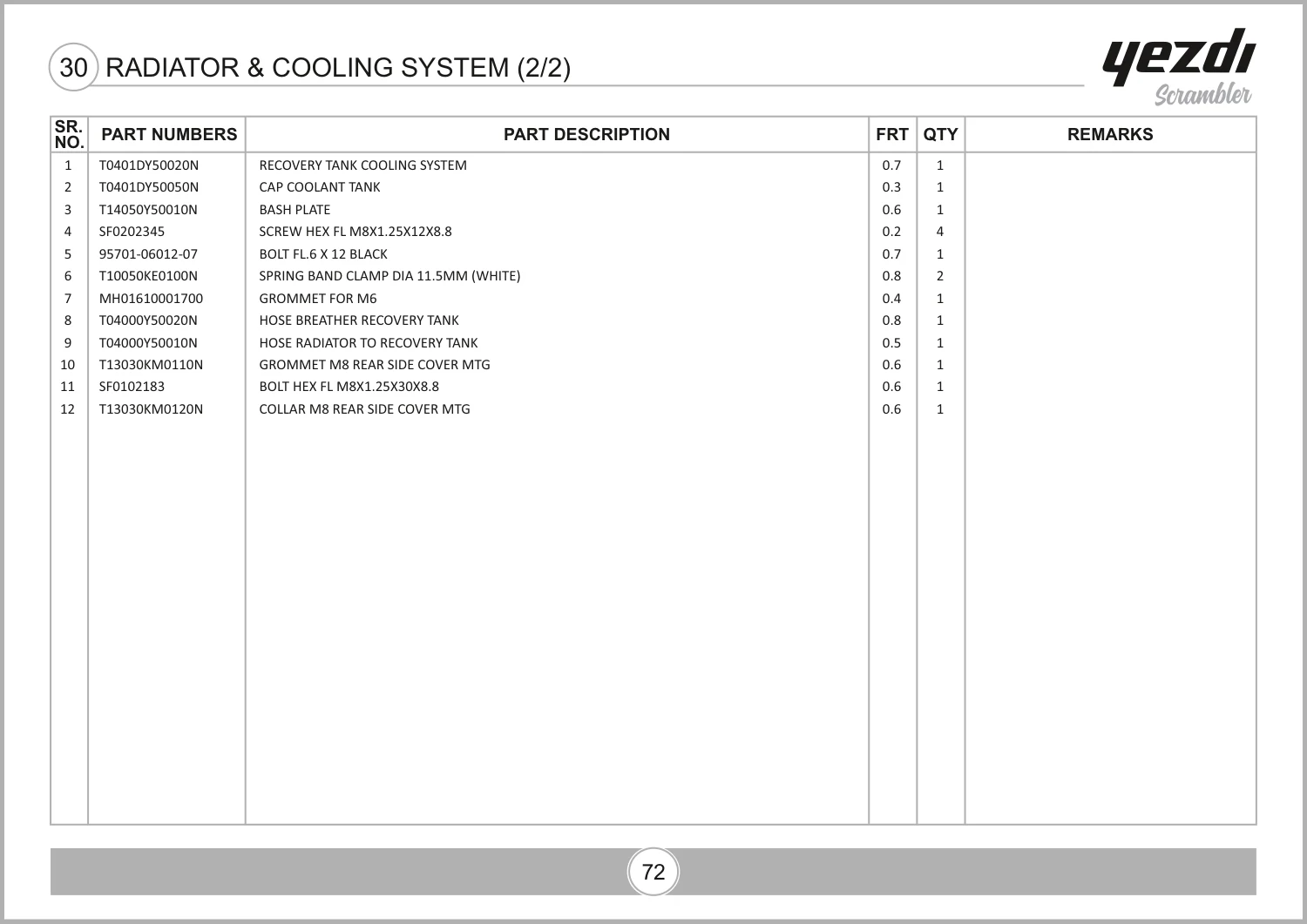

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 83, parts table page 84. View original parts table ↗
