Yezdi Scrambler · ASSEMBLY 29 · REV 19
Radiator & Cooling System (1/2)
Select a diagram reference or a row below to enquire about the exact part.

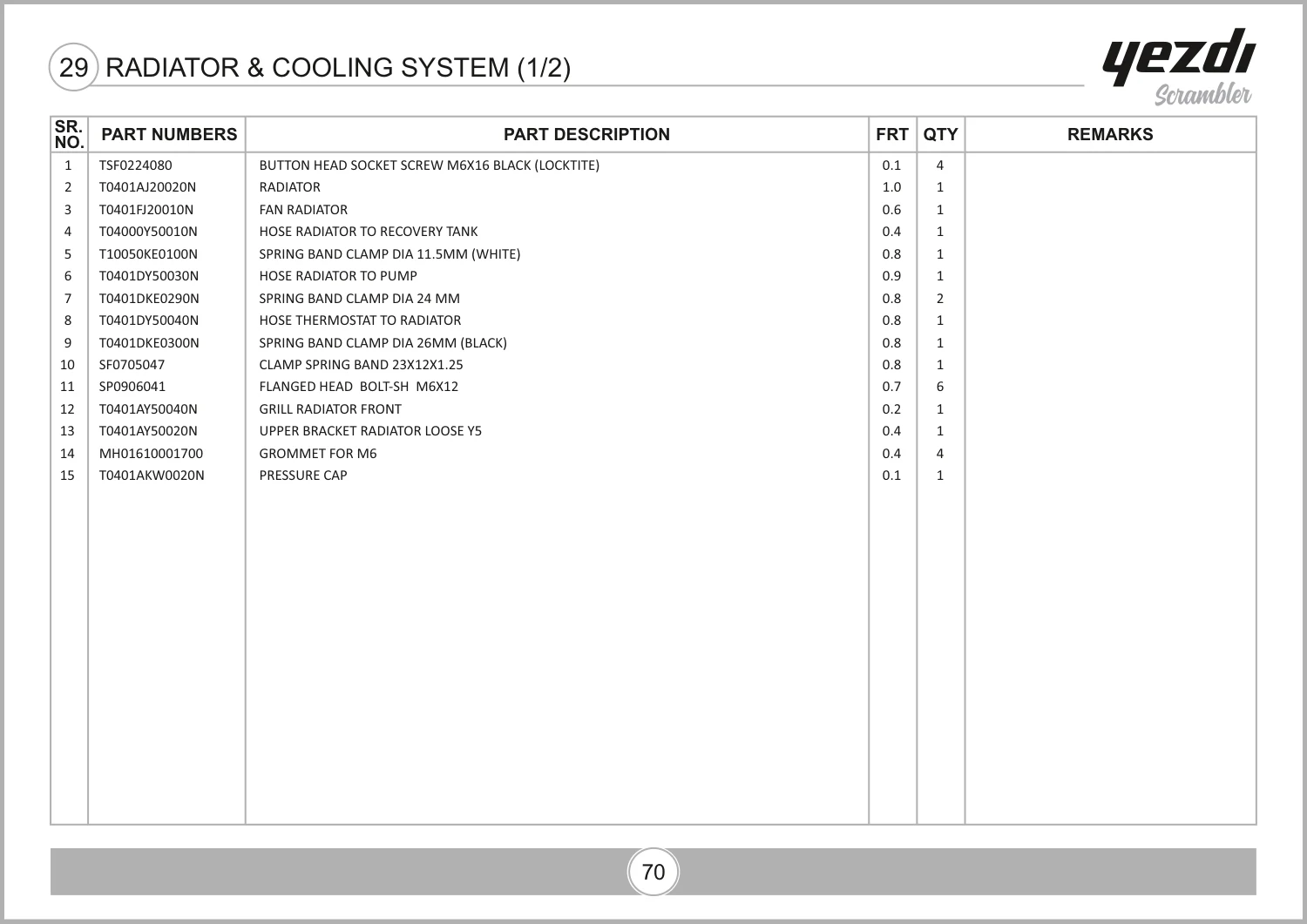

CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 69Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Button Head Socket Screw M6X16 Black (Locktite)TSF0224080 | 4 | |
| 2 | RadiatorT0401AJ20020N | 1 | |
| 3 | Fan RadiatorT0401FJ20010N | 1 | |
| 4 | Hose Radiator To Recovery TankT04000Y50010N | 1 | |
| 5 | Spring Band Clamp Dia 11.5Mm (White)T10050KE0100N | 1 | |
| 6 | Hose Radiator To PumpT0401DY50030N | 1 | |
| 7 | Spring Band Clamp Dia 24 MmT0401DKE0290N | 2 | |
| 8 | Hose Thermostat To RadiatorT0401DY50040N | 1 | |
| 9 | Spring Band Clamp Dia 26Mm (Black)T0401DKE0300N | 1 | |
| 10 | Clamp Spring Band 23X12X1.25SF0705047 | 1 | |
| 11 | Flanged Head Bolt-Sh M6X12SP0906041 | 6 | |
| 12 | Grill Radiator FrontT0401AY50040N | 1 | |
| 13 | Upper Bracket Radiator Loose Y5T0401AY50020N | 1 | |
| 14 | Grommet For M6MH01610001700 | 4 | |
| 15 | Pressure CapT0401AKW0020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 81, parts table page 82. View original parts table ↗
