Yezdi Scrambler · ASSEMBLY 19 · REV 19
Evaporative Emission System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 47Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Check Valve Bs-IVT10000KE0031N | 1 | |
| 2 | Hose Check Valve To Throttle BodyT10000Y50120N | 1 | |
| 3 | Carbon CanisterT10000KE0021N | 1 | |
| 4 | Spring Band Clamp Dia 11T10050KE0100N | 2 | |
| 5 | Clip Tube B895002-02080 | 3 | |
| 6 | Hose Canister To Check ValveT10000KW0110N | 1 | |
| 7 | Drain Tube CanisterT10000Y50130N | 1 | |
| 8 | Bracket Bs-IV Canister Mounting LooseT10000Y40090N | 1 | |
| 9 | Flanged Headbolt M6X12SP0906041 | 2 | |
| 10 | Tool Kit BandT14010KE0010N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

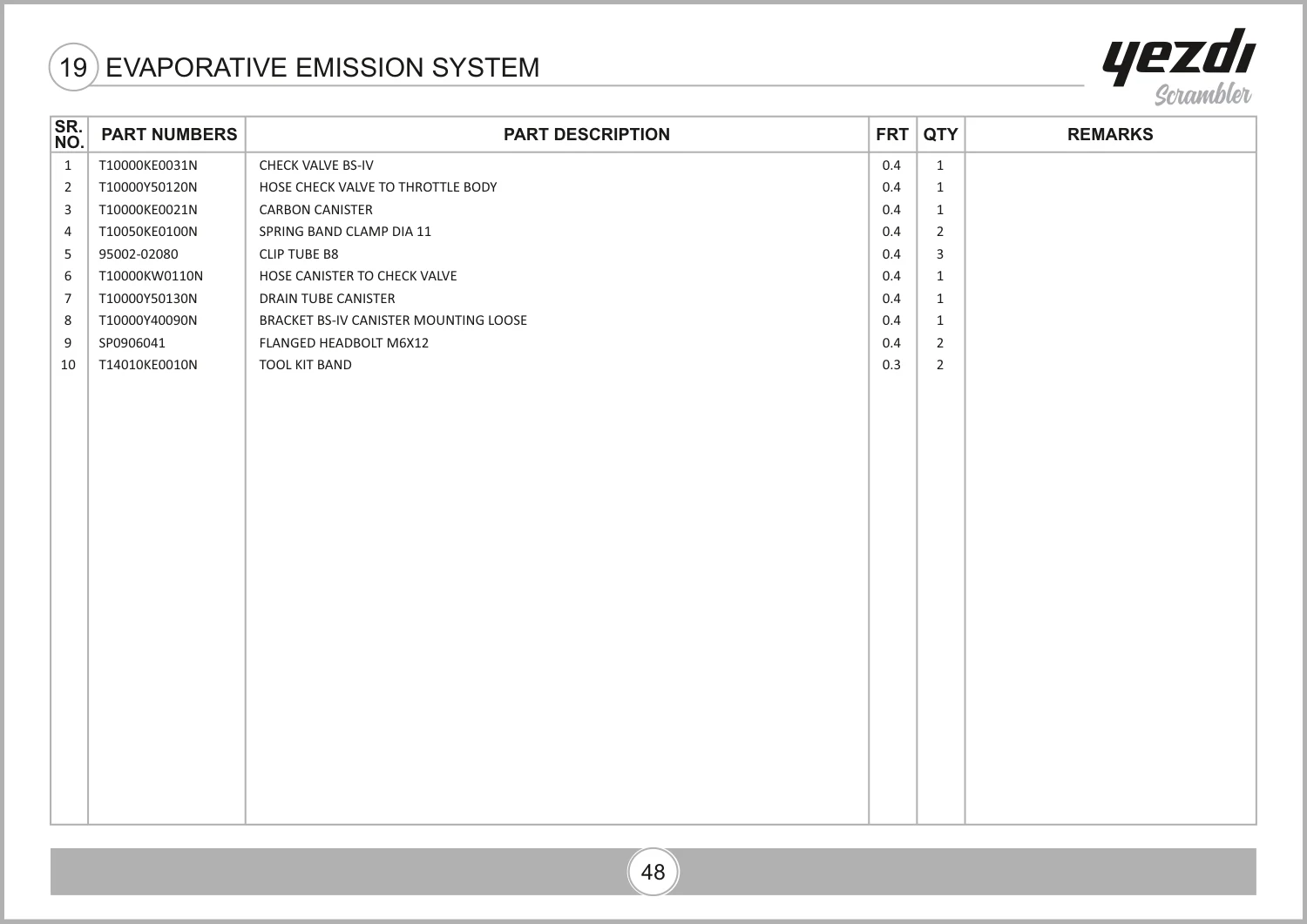

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 59, parts table page 60. View original parts table ↗
