Yezdi Scrambler · ASSEMBLY 20 · REV 19

Air Filter Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler · Rev 19 · p. 49Original parts list ↗

28 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover With Entry DuctT01010Y50050N	1	Enquiry ↗
2	Screw M5 X 20T01010B10020N	5	Enquiry ↗
3	Housing Air FilterT01010Y50070N	1	Enquiry ↗
4	Flange Bolt 61895801-06018-07	3	Enquiry ↗
5	Collar Fairing MountingT13160KG0210N	3	Enquiry ↗
6	Grommet Structure MountingT13160KG0130N	3	Enquiry ↗
7	O RingT01010Y50060N	2	Enquiry ↗
8	Air Filter ElementT01010Y50040N	1	Enquiry ↗
9	Clamp Special 70X0.65X9SF0700042	1	Enquiry ↗
10	Connecting TubeT0101FY50010N	1	Enquiry ↗
11	Clamp Spring Band 32X12X1.8SF0705037	1	Enquiry ↗
12	ResonatorT01010Y50080N	1	Enquiry ↗
13	Bolt Fl 6X12 Black95701-06012-07	3	Enquiry ↗
14	Clamp Special M60 X 0.7 X9SF0700025	3	Enquiry ↗
15	Breather Tube J2 (Air Filter To Engine)T01010Y50030N	1	Enquiry ↗
16	Tube Clip 17T0103AKM0040N	1	Enquiry ↗
17	Spring Band Clamp Dia 14 Mm (Black)T10050KE0030N	1	Enquiry ↗
18	Wire ClipT01010Y50100N	1	Enquiry ↗
19	Drain TubeT0101KB10010N	1	Enquiry ↗
20	Foam Air Filter Side WallT08010Y50710N	1	Enquiry ↗
21	Foam Air Filter FaceT08010Y50720N	1	Enquiry ↗
22	Inlet ManifoldT01010Y50020N	1	Enquiry ↗
23	Holder Cover Throttle Body LHT13010Y50060N	1	Enquiry ↗
24	Holder Cover Throttle Body RHT13010Y50070N	1	Enquiry ↗
25	Hex Soc Cap Head Screw M5160.8SF0105067	4	Enquiry ↗
26	Cover Throttle Body LHT13010Y50040E	1	Enquiry ↗
27	Cover Throttle Body RHT13010Y50050E	1	Enquiry ↗
28	Screw Rdskt M5X0.8X16X8.8SF0212036	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

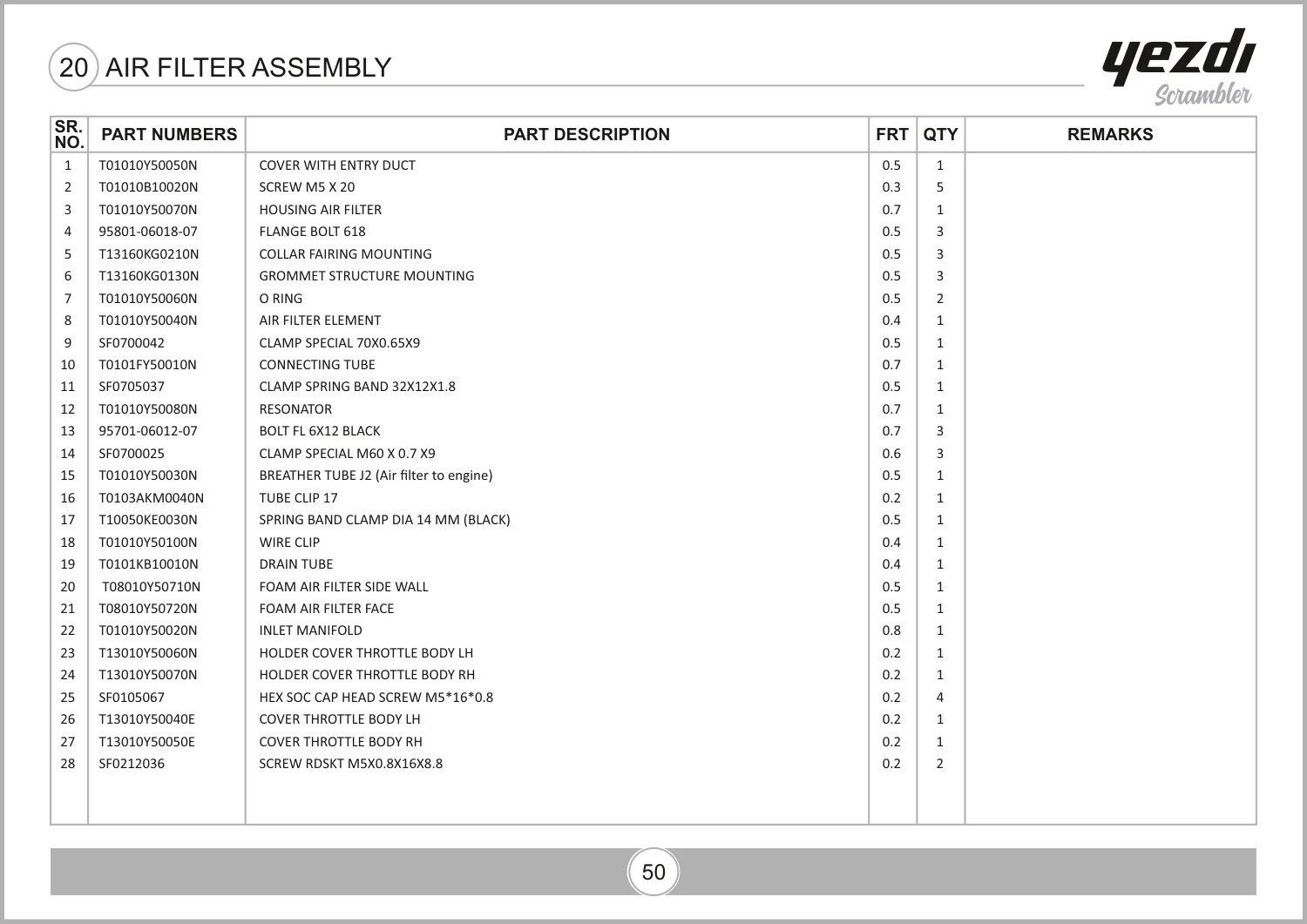

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 61, parts table page 62. View original parts table ↗
