Transmission System - OBD-II

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler Transmission System - OBD-II exploded assembly diagram, catalogue page 29

Yezdi Scrambler · Rev 19 · p. 29Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Washer 20.2300.5T18010UF0140N	1	Enquiry ↗
2	Shaft, Input T/M (NVH Final)T0215DVG0210N	1	Enquiry ↗
3	Gear, 5Th Drive (NVH Final)T0215DVG0240N	1	Enquiry ↗
4	Spline Washer Ø20.3Xø26X1.6 (NVH Final)T0215DVG0280N	2	Enquiry ↗
5	CirclipT0215AUF0130N	2	Enquiry ↗
6	Gear, 3Rd & 4Th Drive (Integral) (NVH Final)T0215DVG0230N	1	Enquiry ↗
7	Spline Bush - 6Th Drive (NVH Final)T0215DVG0270N	1	Enquiry ↗
8	Gear, 6Th Drive (NVH Final)T0215DVG0250N	1	Enquiry ↗
9	Gear, 2Nd Drive (NVH Final)T0215DVG0220N	1	Enquiry ↗
10	Washer 15.2X25X1T18010UF0070N	1	Enquiry ↗
11	Sprocket, DriveT0215DUF0080N	1	Enquiry ↗
12	Lock Plate Drive SprocketT0215DUF0090N	1	Enquiry ↗
13	Bolt, Hex Flange Sh - M6X1096001-06010-00	3	Enquiry ↗
14	Bearing Ball InputT18050UF0130N	1	Enquiry ↗
15	Oil Seal, Output ShaftT18020UF0080N	1	Enquiry ↗
16	Internal Circlip (Ø35*1.75)TSF0602039	1	Enquiry ↗
17	Bearing Input ShaftT18050UF0280N	1	Enquiry ↗
18	Bearing Output ShaftT18050UF0140N	1	Enquiry ↗
19	Breather Hole Cover PlateT0202CUF2430N	1	Enquiry ↗
20	Shaft, Output T/MT0215DUF0190N	1	Enquiry ↗
21	Bush, 2Nd GearT0215AUF0200N	3	Enquiry ↗
22	Gear 2Nd Driven (NVH Final)T0215DVG0160N	1	Enquiry ↗
23	Gear 6Th Driven (NVH Final)T0215DVG0200N	1	Enquiry ↗
24	Gear, 4Th Driven (NVH Final)T0215DVG0180N	1	Enquiry ↗
25	Gear 3Rd, Driven (NVH Final)T0215DVG0170N	1	Enquiry ↗
26	Washer 22.2280.5T18010UF0090N	1	Enquiry ↗
27	Circlip 20.5X1.2 (NVH)T0215AUF0150N	1	Enquiry ↗
28	Gear, 5Th Driven (NVH Final)T0215DVG0190N	1	Enquiry ↗
29	Bush, 1St GearT0215AUF0260N	1	Enquiry ↗
30	Gear, 1St Driven (NVH Final)T0215DVG0150N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

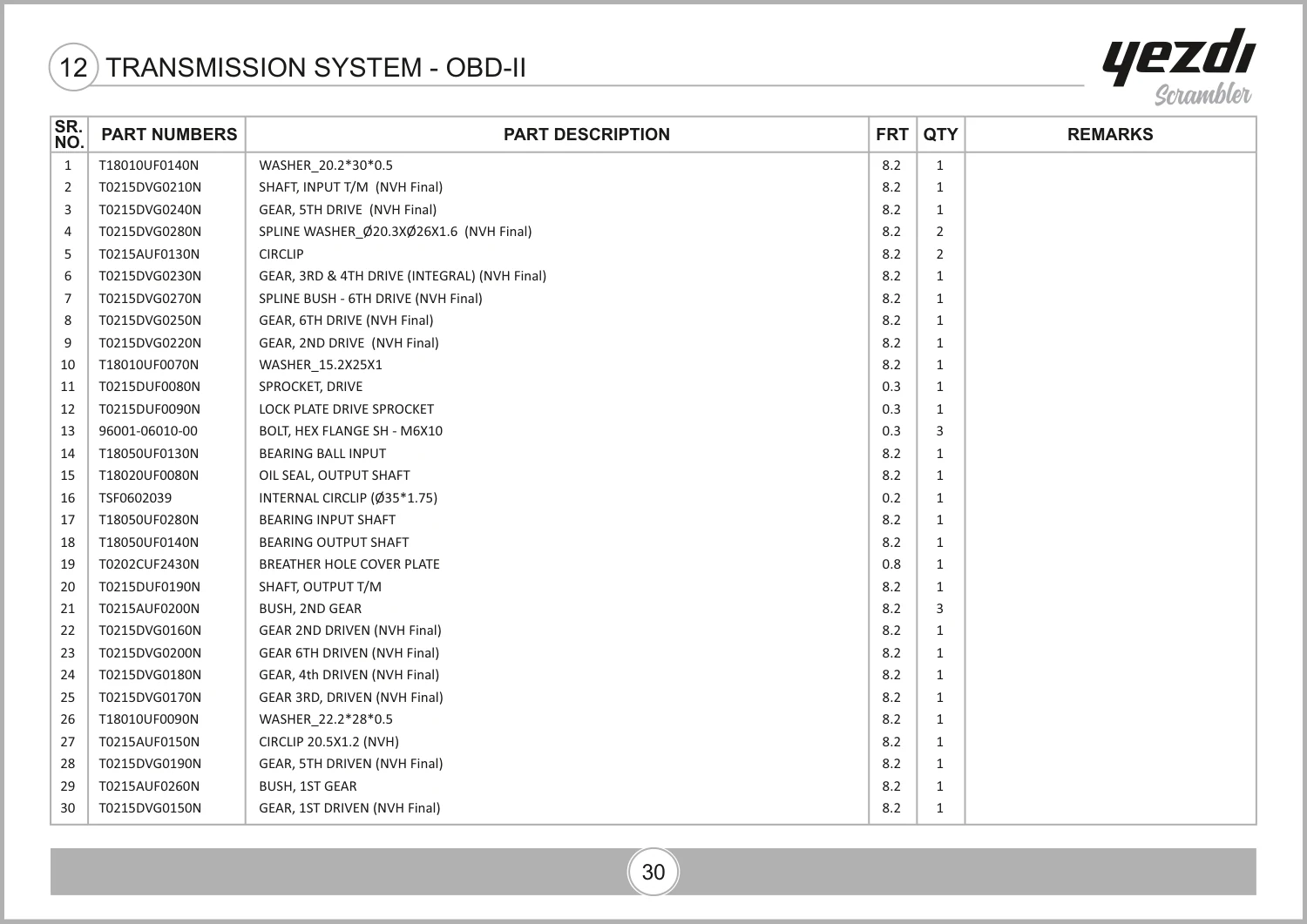

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 41, parts table page 42. View original parts table ↗
