Yezdi Scrambler · ASSEMBLY 11 · REV 19
Transmission System - BSVI
Select a diagram reference or a row below to enquire about the exact part.

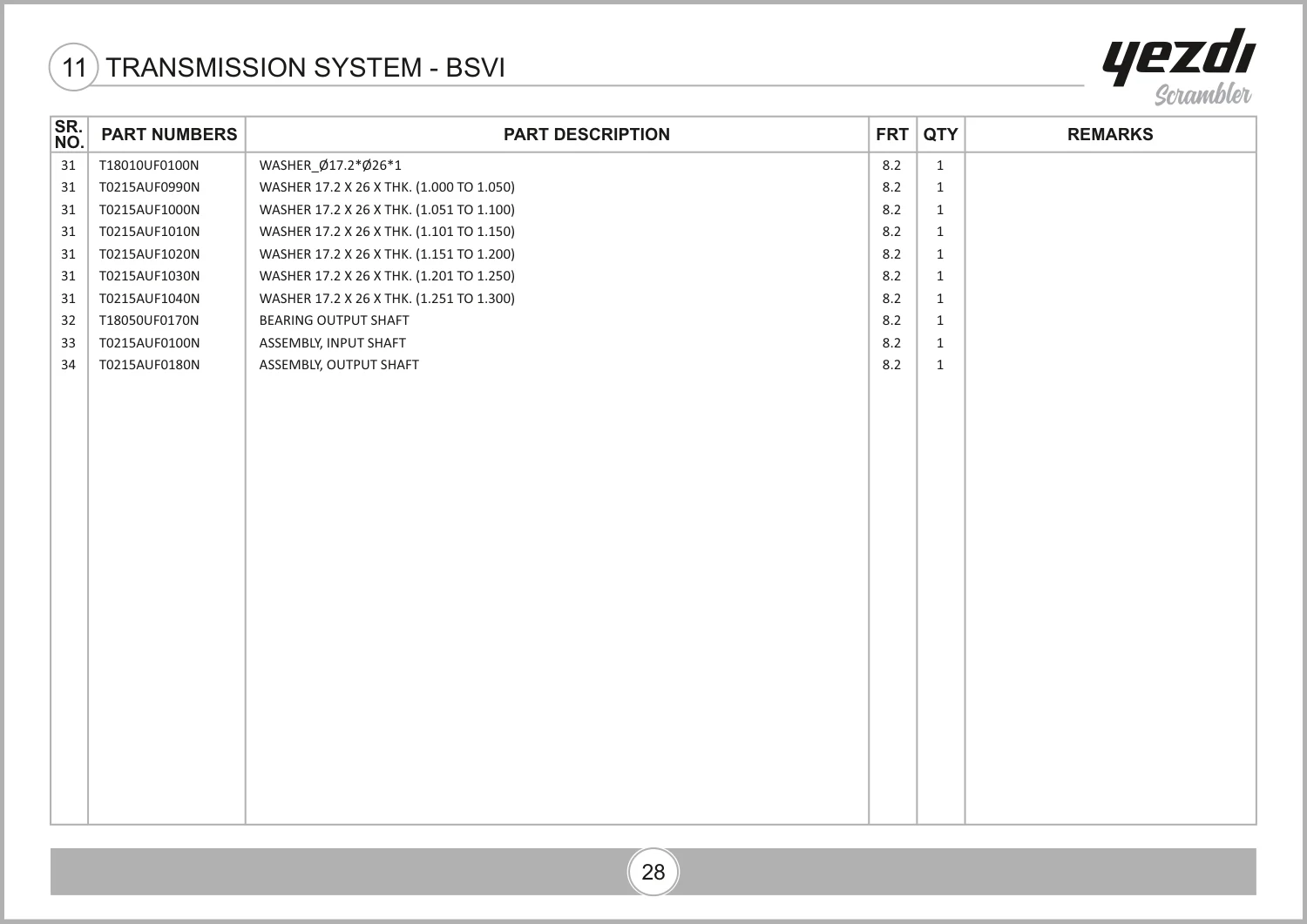

CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 27Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Washer Ø17.2*Ø26*1T18010UF0100N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.000 To 1.050)T0215AUF0990N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.051 To 1.100)T0215AUF1000N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.101 To 1.150)T0215AUF1010N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.151 To 1.200)T0215AUF1020N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.201 To 1.250)T0215AUF1030N | 1 | |
| 31 | Washer 17.2 X 26 X Thk. (1.251 To 1.300)T0215AUF1040N | 1 | |
| 32 | Bearing Output ShaftT18050UF0170N | 1 | |
| 33 | Assembly, Input ShaftT0215AUF0100N | 1 | |
| 34 | Assembly, Output ShaftT0215AUF0180N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 39, parts table page 40. View original parts table ↗
