Yezdi Scrambler · ASSEMBLY 25 · REV 19
Pillion Foot Rest Assembly LH & RH
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler · Rev 19 · p. 59Original parts list ↗
Parts in this drawing
18 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Pivot Rider FootrestT2201BY50070N | 2 | |
| 2 | Pillion Footrest LH Gloss BlackT2201BB10010E | 1 | |
| 3 | Rubber Pillion FootpegT2201BY50030N | 2 | |
| 4 | Bracket Footrest GripT2201BB10070N | 2 | |
| 5 | Bolt Socket Head Cap Screw (M5X10)TSF0224077 | 4 | |
| 6 | Rotation SpringMH01820003800 | 2 | |
| 7 | Ball Steel96211-08000 | 2 | |
| 8 | Seeger Diameter 5 Uni 7434MH01890000800 | 2 | |
| 9 | Detent Plate-Pillion FootpegT2201BY50060N | 2 | |
| 10 | Kit Pillion Footrest Assy LHT2201BY50100N | 1 | |
| 11 | Pillion Footrest RH Gloss BlackT2201BB10040E | 1 | |
| 12 | Kit Pillion Footrest Assy RHT2201BY50090N | 1 | |
| 13 | Pillion Footrest Holder RHT08000Y40040N | 1 | |
| 14 | Pillion Footrest Holder LHT08000Y40030N | 1 | |
| 15 | Kit Seat Lock With KeyT13000Y50150N | 1 | |
| 16 | Lock Spring Plate Seat LockT0901GKG1740D | 1 | |
| 17 | Seat Lock Cable BracketT08000Y40070N | 1 | |
| 18 | Screw Rdskt M5X0.8X8SF0212029 | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

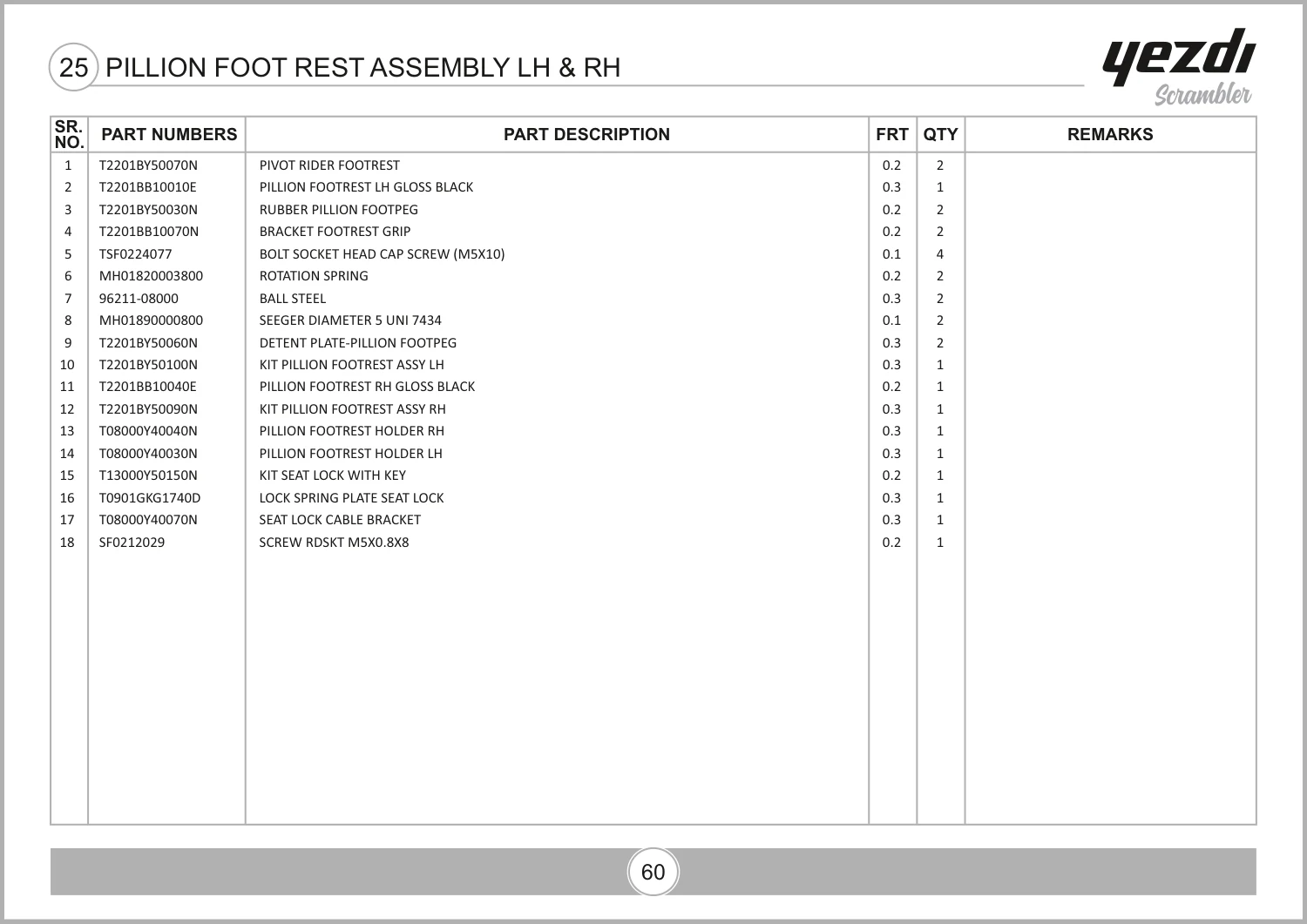

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_REV_19.pdf · PDF diagram page 71, parts table page 72. View original parts table ↗
