Magneto Side Adaptor Plate With Breather Black Raven Texture Shadow Black
T0202DVF0410E
Enquiry ↗CATALOGUE DRAWING
This part is reference 15
BSA Scrambler 650 · Rev 03 · p. 33Original parts list ↗

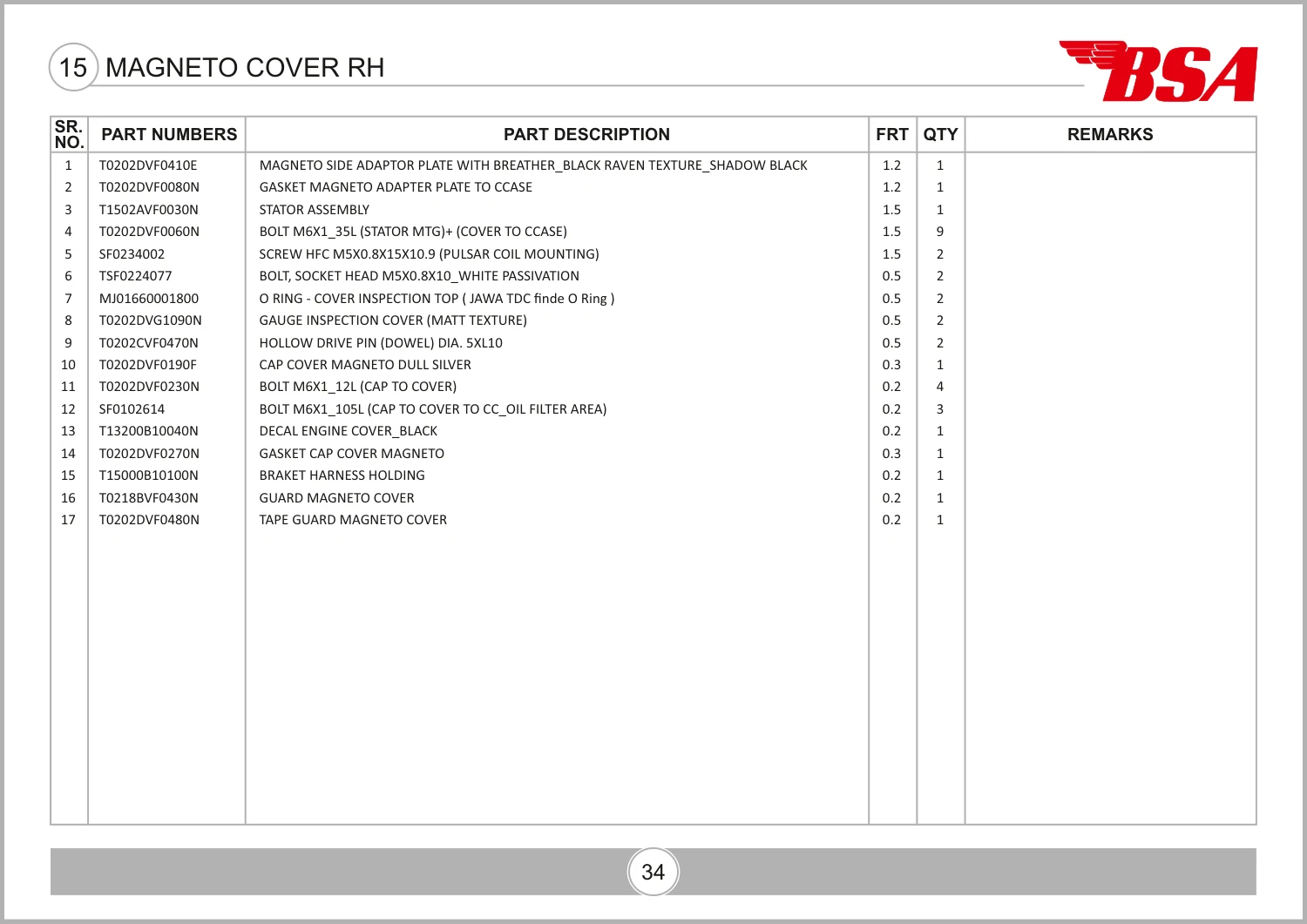

Highlighted catalogue reference 15. The image shows the complete assembly.
Braket Harness Holding · T15000B10100N
Listed in the supplied BSA Scrambler 650 catalogue, revision 03, under Magneto Cover RH. Match reference 15 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Braket Harness Holding specifications & catalogue names
- Part number
- T15000B10100N
- Catalogue part name
- BRAKET HARNESS HOLDING
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| BSA Scrambler 650Braket Harness HoldingRev 03 · PDF p. 44 | Magneto Cover RHRef 15 · Assembly qty. 1 | Confirm exact bike variant. |
