Jawa Perak · ASSEMBLY 29 · REV 24

Footrest Assembly LH & RH - Fwd Footrest

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak · Rev 24 · p. 79Original parts list ↗

26 entries

Ref.	Part name / number	Assembly qty.	Action
1	Rider Footrest Assembly LHT22010J30010T	1	Enquiry ↗
2	Socket Head Screw M8X20SP0308009	4	Enquiry ↗
3	Stay Exhaust Mtg LHT2201BJ30010N	1	Enquiry ↗
4	Screw Socket M8X1.25X28X10.9SF0224181	4	Enquiry ↗
5	Swing Arm Axle M16T1101CKW0010N	1	Enquiry ↗
6	Spring Washer L M8X14.8X2SF0402051	2	Enquiry ↗
7	Stay Exhaust Mtg RHT2201BJ30020N	1	Enquiry ↗
8	Washer Plain M8X14X2SF0401479	2	Enquiry ↗
9	Socket Head Screw M8X70TSF0212016	1	Enquiry ↗
10	Bracket Rmc MountingT20000J20010N	1	Enquiry ↗
11	Clevis, Rider Footrest LHT22000J30020T	1	Enquiry ↗
12	Rider Footrest LH Satin BlackT2201AJ10040W	1	Enquiry ↗
13	Rubber, FootrestT2201AB10010N	2	Enquiry ↗
14	Bracket Footrest GripT2201BB10070N	2	Enquiry ↗
15	Bolt, Socket Head M5X0.8X10TSF0224077	4	Enquiry ↗
16	Rider Footrest Assembly RHT22010J30020T	1	Enquiry ↗
17	Spring Torsion Rider FootrestT2201AKW0130E	2	Enquiry ↗
18	Pivot Rider FootrestT2201BY50080N	2	Enquiry ↗
19	Seeger Diameter 5 Uni 7434MH01890000800	2	Enquiry ↗
20	Clevis, Rider Footrest RHT22000J30010T	1	Enquiry ↗
21	Rider Footrest RH Satin BlackT2201AJ10050W	1	Enquiry ↗
22	Rear Brake Lever Complete - Matt TextureT20010J30030T	1	Enquiry ↗
23	Pivot Link Rear Brake Lever J302T2001CJ30030N	1	Enquiry ↗
24	Screw Hex Fl M6X1X28X8.8SF0202349	1	Enquiry ↗
25	Self Lock Nut M16TSF0318003	1	Enquiry ↗
26	Return Spring, Rear Brake Pedal J302T2001BJ30010N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

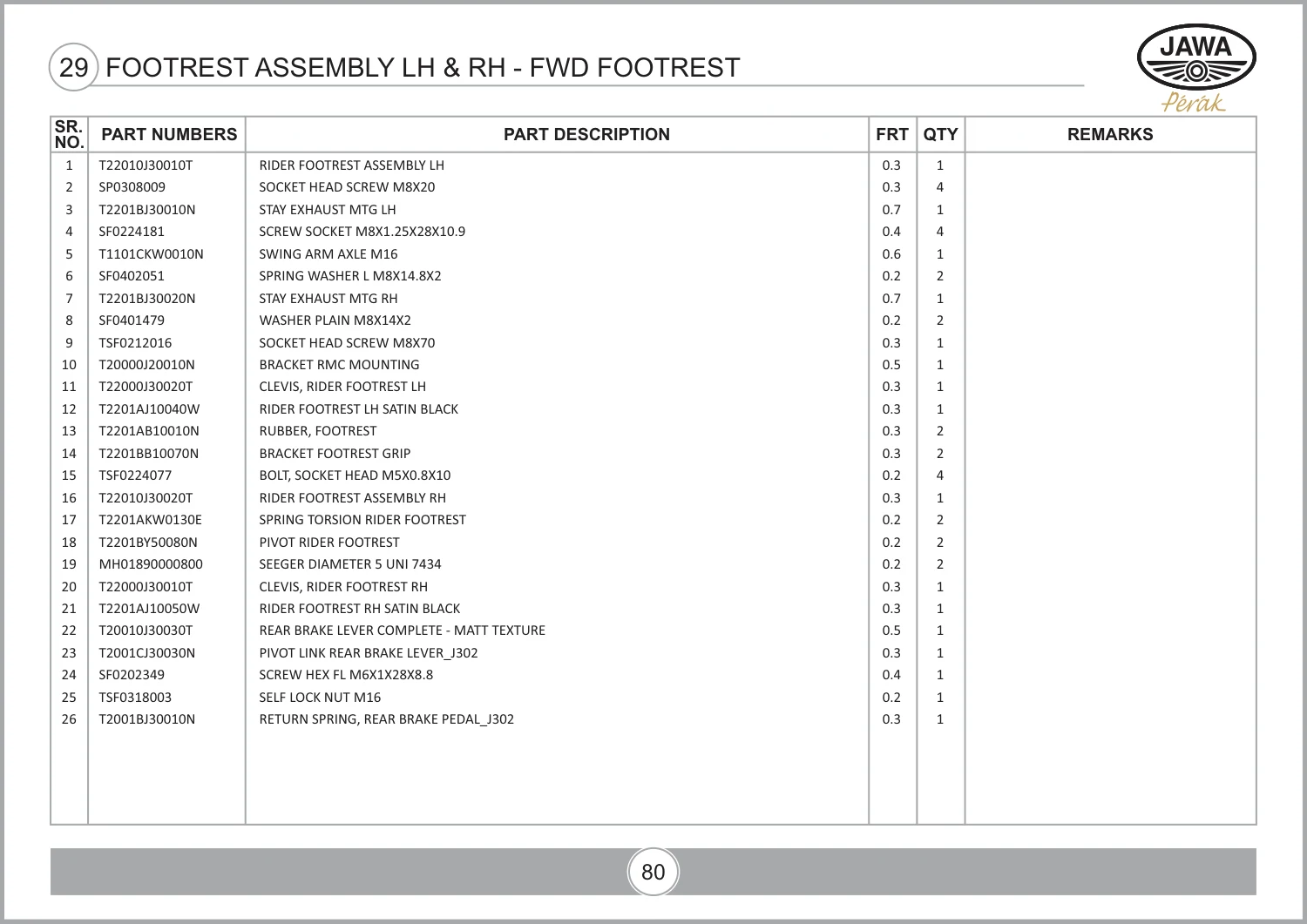

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 91, parts table page 92. View original parts table ↗
